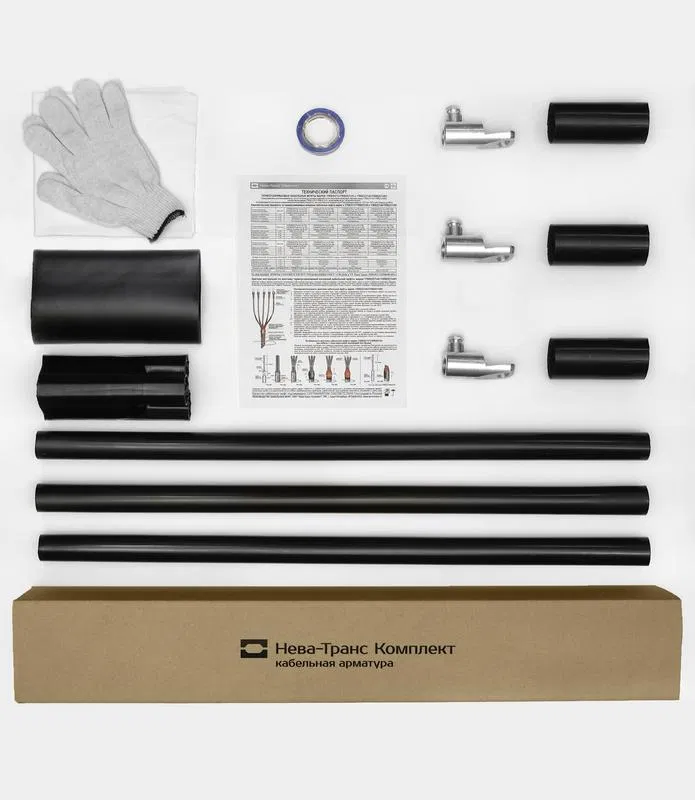

Cable end sleeve indoor 1kV 1PKVTpN-3x(150-240) with bolt terminal Neva-Trans Kit 22020032

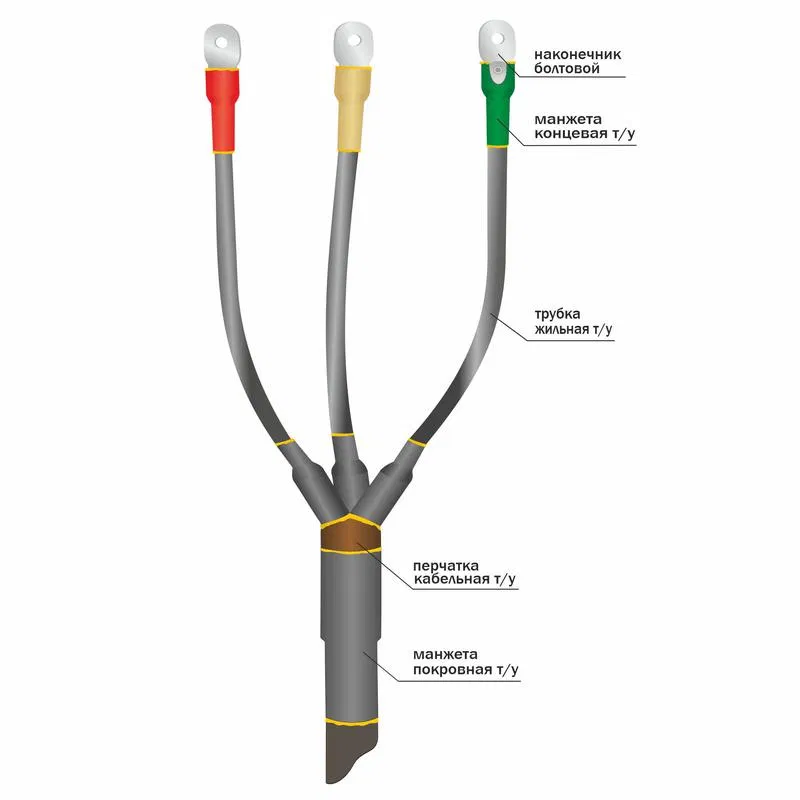

Cable end sleeve type 1PKVTpN-3x(150-240) with internal bolt terminals is designed for terminating 3-core power cables with cross-sections of 150, 185, 240 mm² with plastic insulation without armor, for voltages up to 1 kV inclusive. Installed indoors in all humidity categories. Operated at ambient temperatures from -50°C to +50°C. Complies with the requirements of GOST 34839-2022 and TU 3599-012-31930690-2016. Passed a series of independent tests in accredited laboratories, on the basis of which certificates of conformity to GOST, TU, fire, and environmental safety requirements were issued. Mounted on the cable stripping by heat-shrinking parts made of modified polymer using a gas torch or a high-temperature heat gun. Universal breakaway bolt terminals included in the cable sleeve kit are suitable for cables with both aluminum and copper cores. Possesses the required level of resistance to aggressive external factors. Combines ease of installation and high operational reliability. Service life - at least 30 years.
