НИЛЕД
Cable connection sleeve 10kV HJ1P-12/3x150-240 (3Stp-10-150-240-BS) paper insulation; without bolts; connectors; PPD NILED 16000837
SKU: 16000837
ETIM: EC001169
13,631 ₽
Analogues by specifications

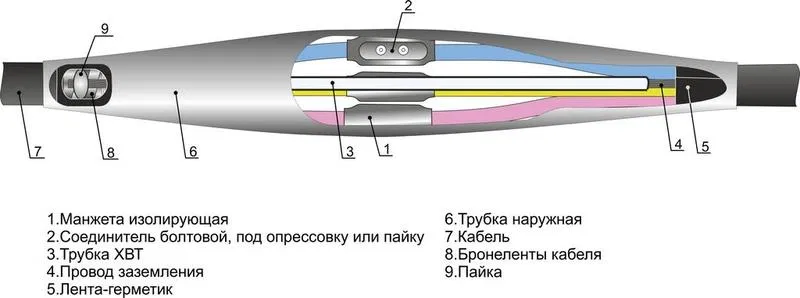

Designed for the hermetic and safe connection of cables into a single cable line. Connection sleeve for 3-core armored cable with paper-impregnated insulation with cross-section from 150 to 240 sq. mm for voltages up to 10 kV. Connectors not included. Non-soldered grounding system (constant pressure springs).
Used for connecting the following types of cables:
• AAB2L, AABLG, AASHNG, AASHP, ASB, ASB2L, ASBG, ASBSHV;
• SB, SBG, as well as their analogues.
Heat-shrinkable tubes with an adhesive layer possess high insulation properties, as well as ensuring the tightness and strength of connections.
For connecting cables with paper and plastic insulation
No
Approval for mining industry use
No
Design
Heat-shrink
Number of cores
3
Halogen-free
Yes
Rated voltage U0/U (Um)
6/10 (12) kV
Rated conductor cross-section at
240 кв.мм
Rated conductor cross-section from
150 кв.мм
