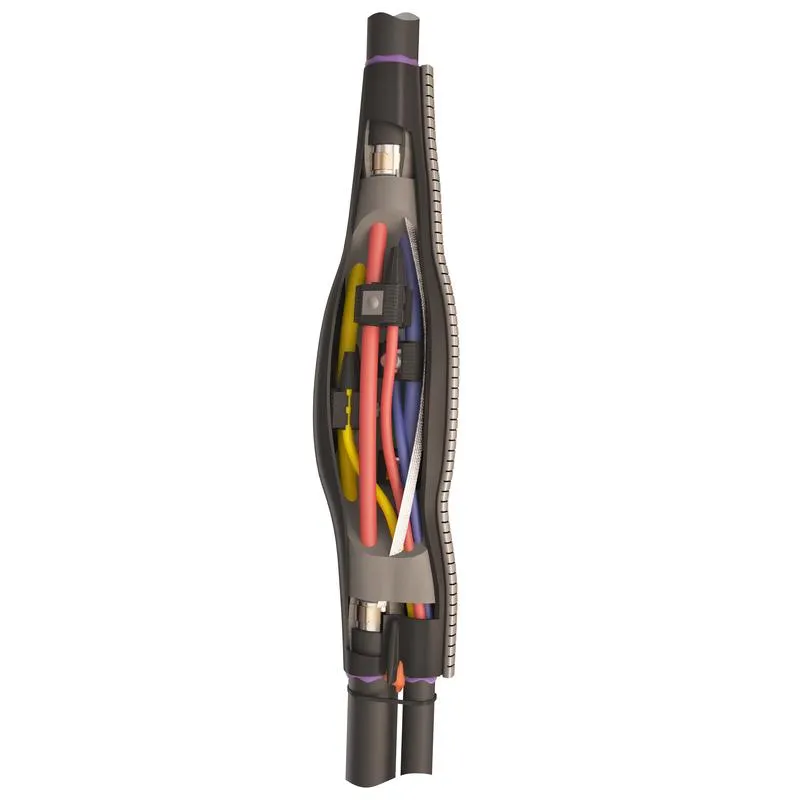

Cable straight joint 3PST mini-4/6 ng-LS 69175 KVT

• Designed for connecting copper wires and cables: • with plastic insulation of small cross-sections (PVC/PE) • for voltage up to 400 V • Complies with GOST 34839-2022 requirements • Types of mountable cables: PVS, VVG, VVGng, VVG ng-LS, NYM, NYY, VBbShv, VBV, PVBBSHP, PVBBVng-LS, VBbShng(A), PVBBShng(A) and others. • For armored cables, a non-soldered grounding system is used. • The kit is universal and can be used on 2, 3, 4, or 5-core cables in the cross-section range from 1.0 to 10 mm² • Sleeve composition: • tin-plated copper connection sleeves GML(o) • heat-shrinkable connection sleeves with adhesive layer • protective sheath with continuous adhesive application on the inner surface • 2 PPD springs (for armored sleeves) • grounding wire (for armored sleeves) • The sleeve has two sealing circuits, represented by adhesive heat-shrinkable tubes for insulating contact connections (color: transparent) and a general cable sheath restoration tube (color: black) • Heat-shrinkable tubes with an internal layer of thermoplastic adhesive ensure high-quality insulation and sealing of connections • Cable sheath restoration tubes are resistant to ultraviolet radiation and weather conditions • Installation in underground cable ducts, pipes, and directly in the soil • Installation tools: • for crimping sleeves: STK-05, STV-05 crimping pliers • for heat-shrinking: high-temperature heat gun or portable butane torches "KVT" • Manufactured according to TU 3599-062-97284872-2014
