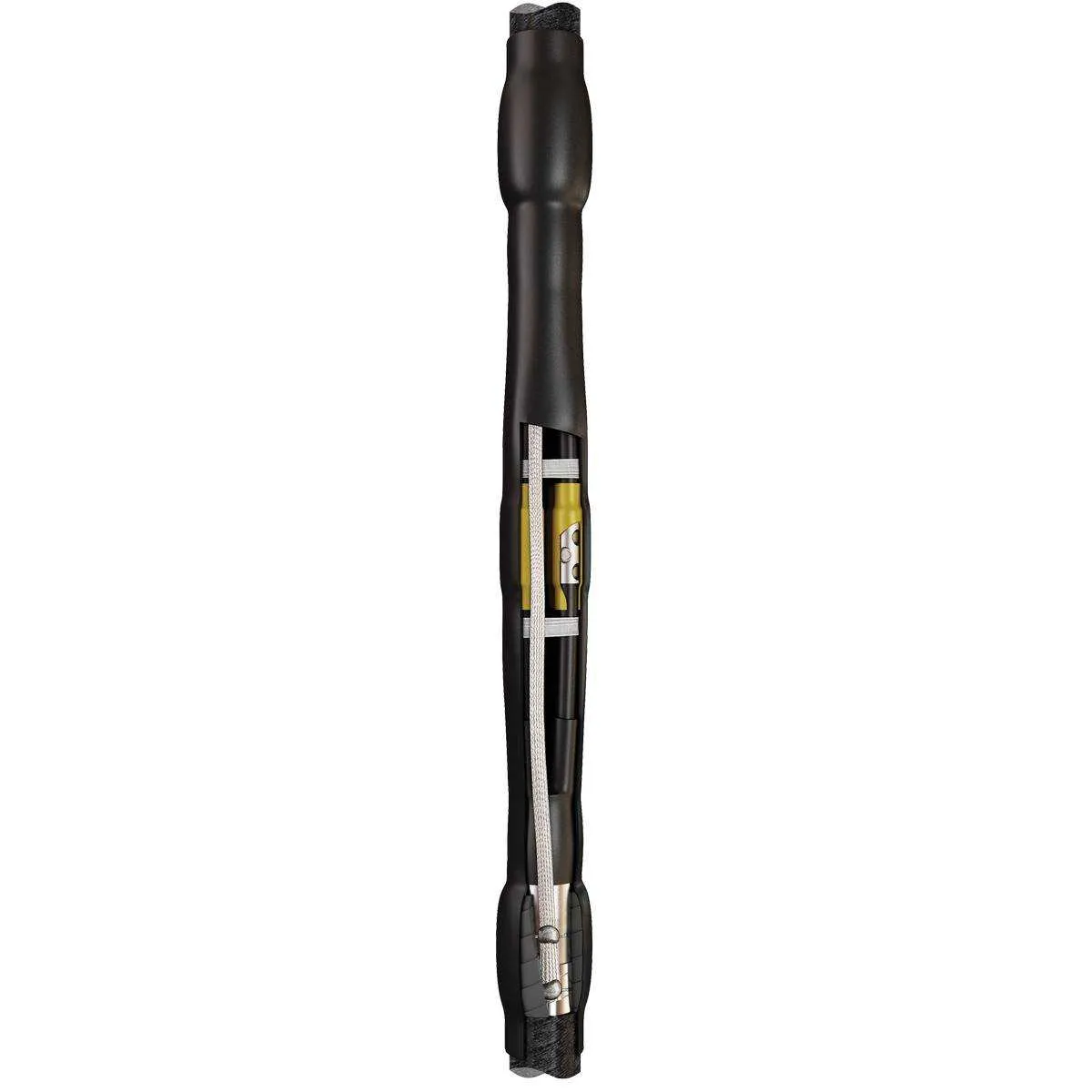

Cable straight joint PSTk (4-14)/(1.5-2.5) 57247 KVT

• Designed for connecting and repairing control cables: • with PVC insulation • armored and unarmored • for voltage 1 kV • Complies with GOST 34839-2022 requirements • Types of cables to be mounted: KVVG, KVVGng, KVVGng-LS, AKVVG, KVBBSHV, KVVB, AKVBBBSHV • Sleeves are installed in the ground, tunnels, ducts and other cable structures • For connecting cable cores, insulated connection sleeves GSI are used, which simultaneously provides connection and insulation of the cable cores • For connecting control cable cores, multi-size sleeves in an insulated PVC housing are used. GSI (KVT) sleeves are included in the standard kit (except for the PSTk (4–10)/(4–10) sleeve) • Crimping of insulated sleeves is carried out with crimping pliers: STA-01, STV-01, STK-01, or the STF set manufactured by "KVT" • Hot-melt adhesive applied to the inner surface of the heat-shrinkable tube, which functions as an outer protective sheath, ensures complete sealing of the sleeve after installation • The materials used to manufacture the heat-shrinkable components of the sleeve are resistant to ultraviolet radiation and favorable climatic conditions • Installation tools: propane torch PG (KVT), portable butane torches "KVT", high-temperature heat gun TT-1800 (KVT) • All polymer compositions used for the production of heat-shrinkable components by "KVT" are halogen-free (HF=Halogen Free) • Manufactured according to TU 3599-061-97284872-2014
