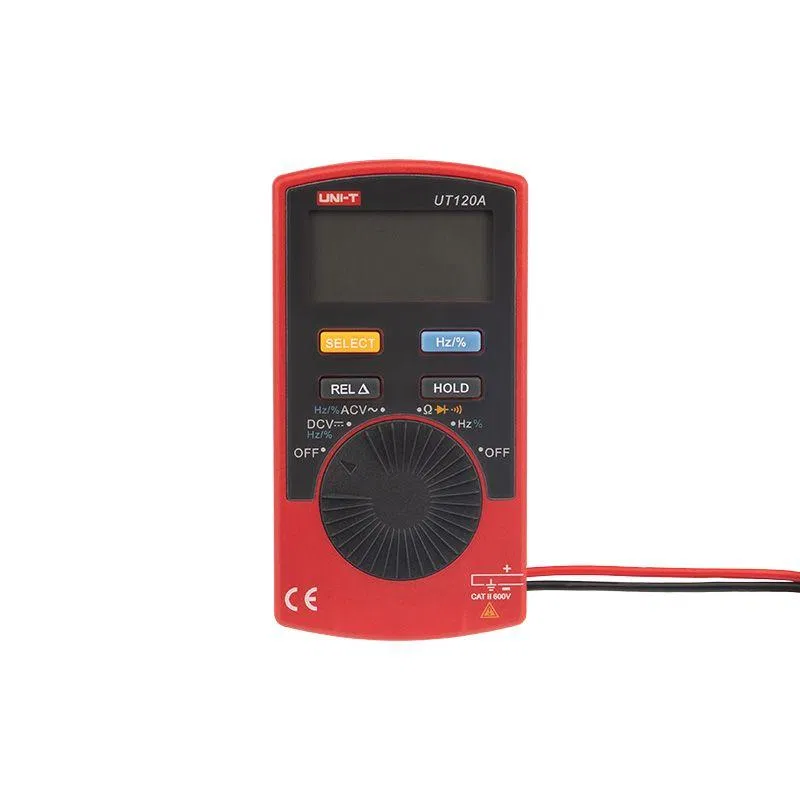

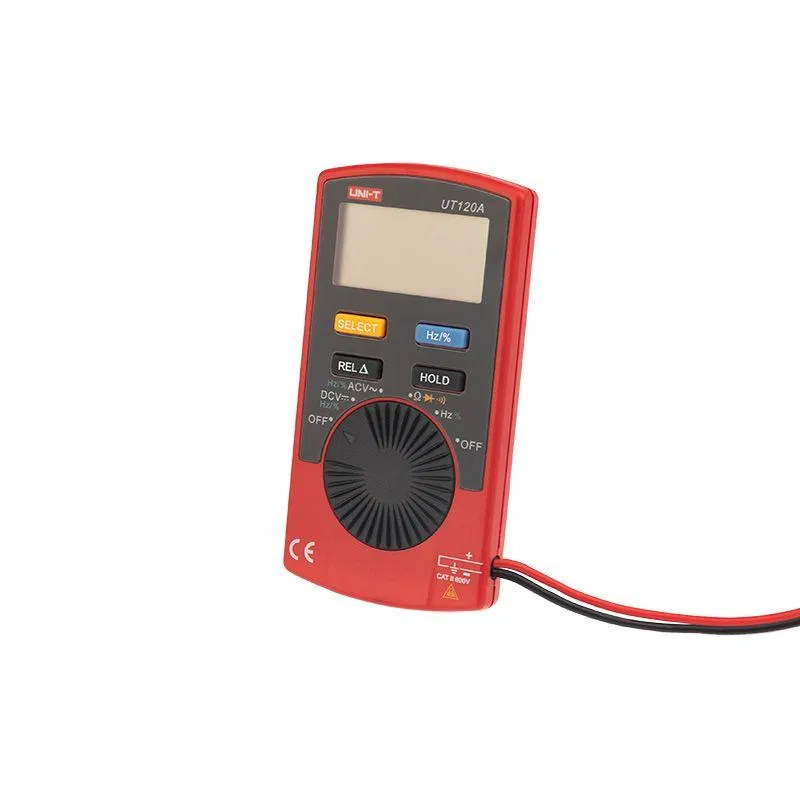

Portable multimeter UT120A UNI-T 13-0010

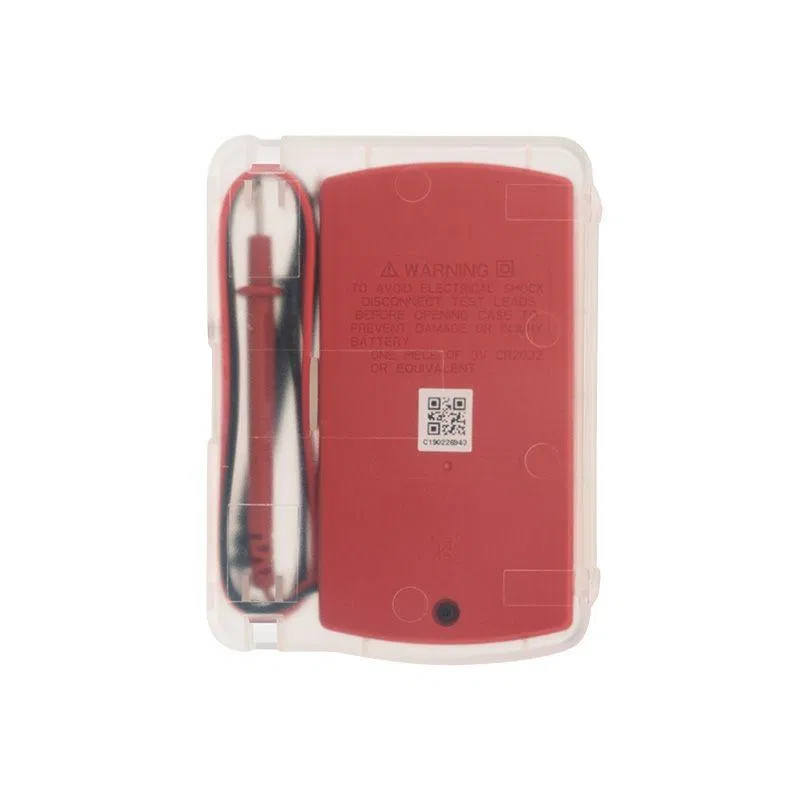

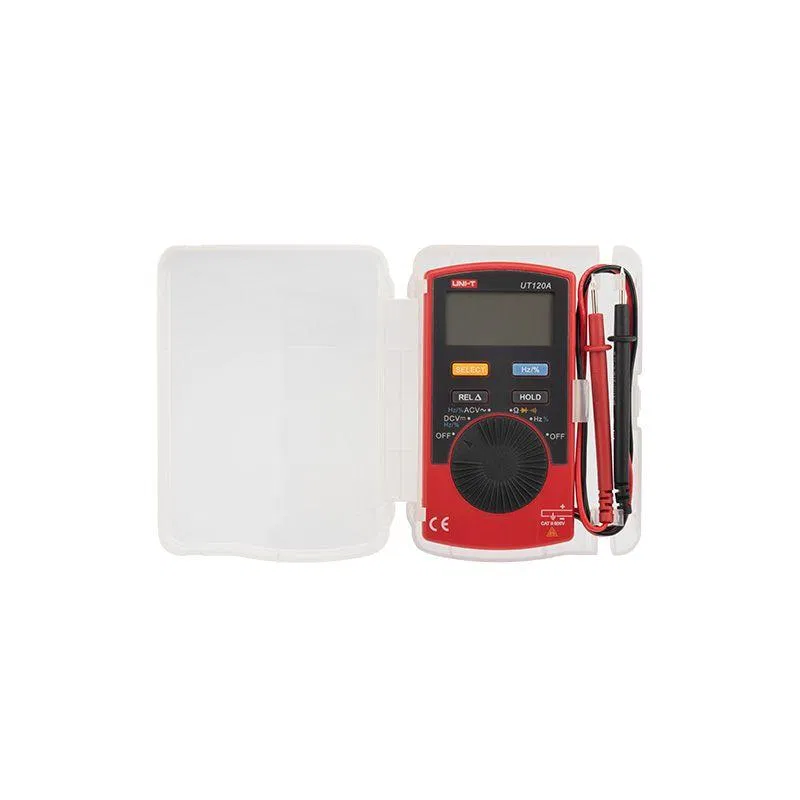

Multimeter is an electrical measuring instrument that includes several functions and a set of measurable parameters. The 120 series devices are compact multimeters, which are the logical development of the 10 series. Now truly compact multimeters are capable of supporting a much wider measurement range. Despite their compact size, they include an excellent set of functions. The 120A multimeter features voltage, resistance, frequency measurement, diode testing, and continuity testing functions, as well as auto power-off and data hold functions. A protective case and probes are also included in the kit. Calibration and testing of the devices are performed under the supervision of SDS. Technical characteristics: Multimeter scale resolution: 4000 counts DC voltage: 400 mV/4 V/40 V/600 V: ±(0.8%+3) AC voltage: 4 V/40 V/600 V: ±(1.2%+3) Resistance: 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ: ±(1%+2) Frequency: 10 Hz/100 kHz: ±(0.5%+3) Duty cycle: 0.1% ~ 99.9% Diode testing Continuity testing DATA HOLD function Shockproof case Power: 3V CR 2032 battery Size: 109x57.9x13 mm Weight: 75.3 g
