11,712 ₽
Get back 117 ₽ in points
Order multiple: 100 шт
Analogues by specifications
Stock by warehouse

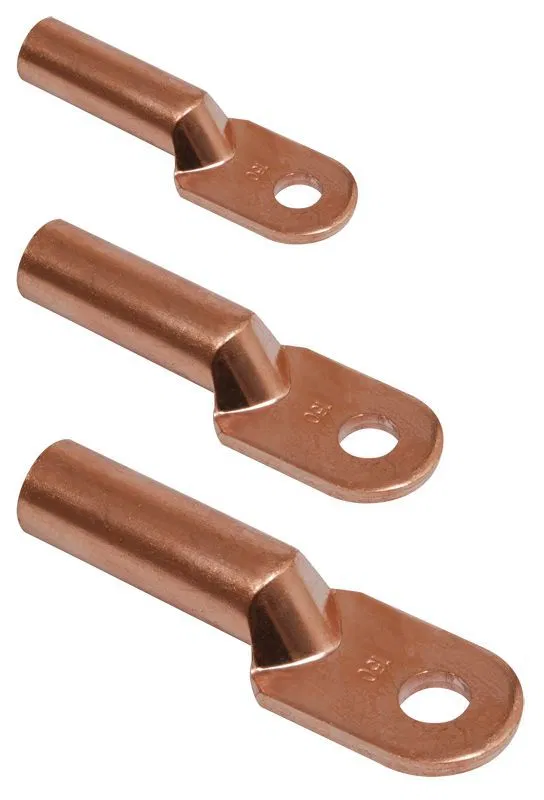

• Designed for crimping termination of copper cables and wires
• Material: M1 grade refined copper
• Coating: tin-bismuth plating (climatic version "T2"), providing corrosion protection and guaranteeing high connection quality under any weather and climatic conditions
• DIN 46235 standard — the most well-known and authoritative international standard for copper cable terminals
• 33 most in-demand sizes from 6 to 1000 mm²
• The tubular part of the terminals features double-track markings, indicating the location and number of crimps depending on the width of the dies used
Protective surface coating
Tin-plated
Insulated
No
Number of mounting holes
1
Material
Copper
Metric connecting thread size
6
Rated conductor cross-section
25 кв.мм
With inspection hole
No
Connection angle
180 deg (horizontal)
Narrow flange design
No
Contact pad shape
Ring
