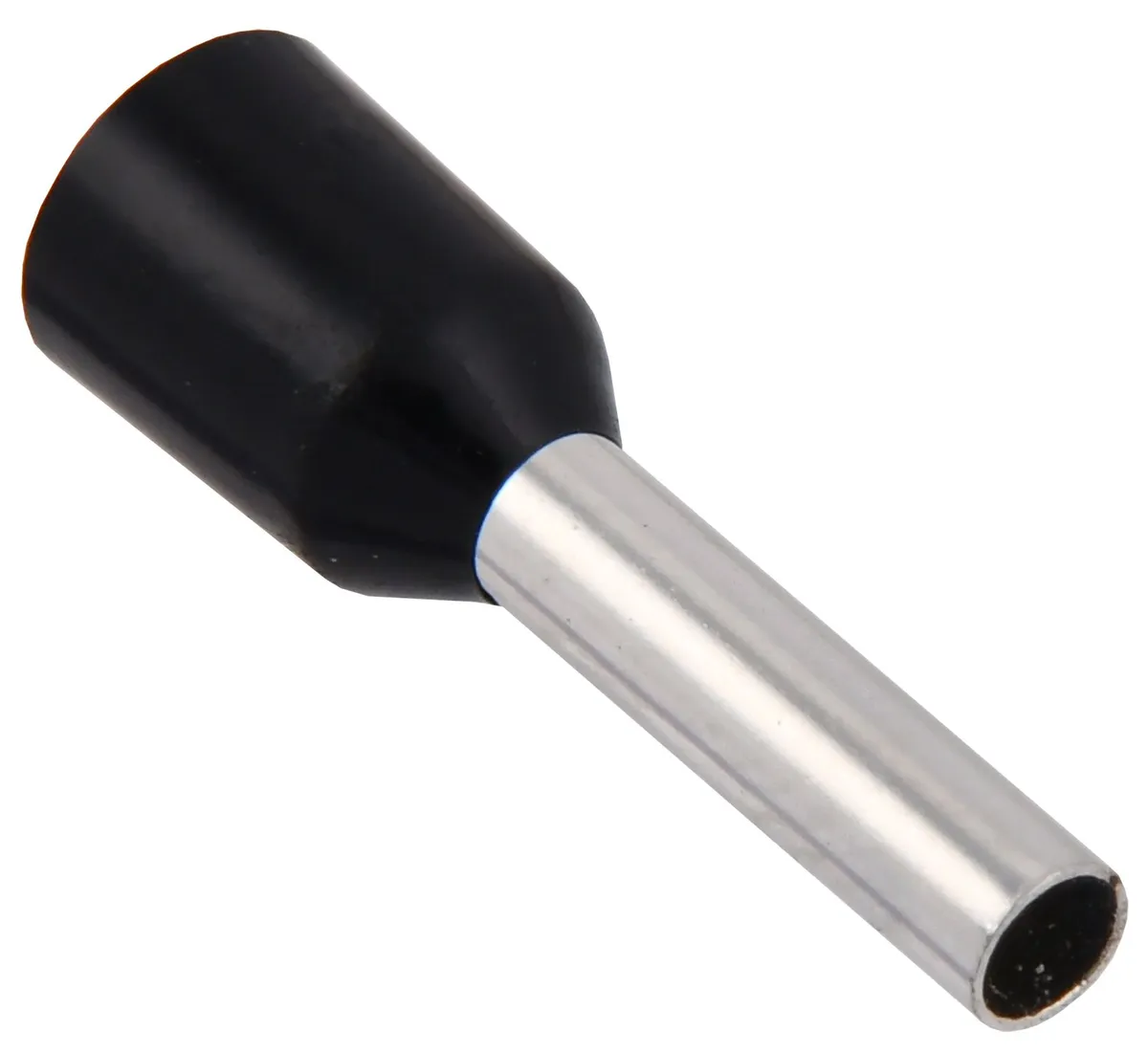

Insulated bootlace ferrule NShVI 95-25 79457 KVT

• For mounting a single wire • Designed for crimping flexible multi-strand copper conductors. They transform the ends of multi-strand wires into solid pins • A modern alternative to mandatory tinning of multi-strand wire ends when connecting to terminals • Maximum voltage: 690 V • Dimensions of the insulated sleeves and NSHVI ferrule bushings are designed for mounting a single conductor of the corresponding cross-section • Connector material: M1 grade copper • Connector coating: electrolytic tinning • Insulation material: polypropylene. Halogen-free • Insulation heat resistance: 105 °C • Color of the insulating sleeves is made in accordance with the color coding of DIN 46228, part 4 • Single and double ferrule terminals "KVT" are presented in the same color scheme as the DIN standard, which facilitates their size identification • Conical sleeve shape, "Easy Entry" type, facilitates inserting the multi-strand wire into the copper ferrule • Crimping the wire over the copper ferrule
