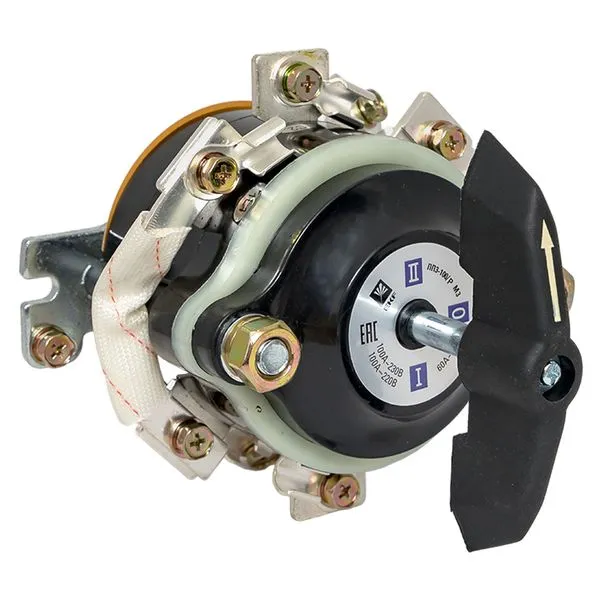

Drum changeover switch (reversing) PP 3-100/R M3 version 3 EKF PROxima pp-3-100-3r
SKU: pp-3-100-3r
ETIM: EC002611
6761 ₽
Price list (incl. VAT):
12677 ₽
Available August 12
Order multiple: 12 шт
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
| Manufacturer warehouse | |||||
|
Manufacturer warehouse
Available
|
6 | шт | August 12 | clarifying | |
Select a warehouse to order
Package switches, changeover switches are designed to operate in electrical circuits with a voltage of up to 400V AC at frequencies of 50, 60 and 400 Hz and up to 220V DC. Switches (changeover switches) provide operation in the following modes: continuous, intermittent-continuous, and repetitive-short-term. Switching frequency not more than 120 times per hour.
| Phase-to-phase measurement capability | No |
| Phase-to-neutral measurement | No |
| Number of auxiliary NO contacts | 0 |
| Number of auxiliary break contacts | 0 |
| Number of switch positions | 3 |
| Number of poles | 3 |
| Complete device in housing | Yes |
| Maximum rated operational voltage Ue AC | 400 В |
| Modular design | No |
| Rated continuous current Iu | 100 А |
| Suitable for front panel mounting | No |
| Suitable for base mounting | No |
| Suitable for intermediate mounting | No |
| Suitable for distribution board | Yes |
| With control unit | No |
| With return to zero position | No |
| With zero position | Yes |
| Ingress protection (IP) of front side | IP00 |
| Front protection rating (NEMA) | 13 |
| Switch type | Direction switch |
| Switch type | Direction switch |
| Product/component type | Cam switch |
| Control element type | Short rotary handle (narrow grip) |
