4,636 ₽
Get back 46 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications

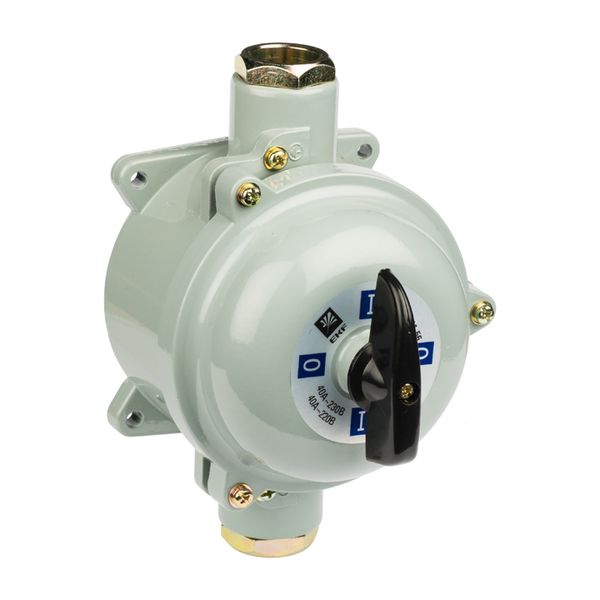

Package switches, changeover switches are designed to operate in electrical circuits with a voltage of up to 400V AC at frequencies of 50, 60 and 400 Hz and up to 220V DC. Switches (changeover switches) provide operation in the following modes: continuous, intermittent-continuous, and repetitive-short-term. Switching frequency not more than 120 times per hour.
Phase-to-phase measurement capability
No
Phase-to-neutral measurement
No
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
0
Number of switch positions
2
Number of poles
2
Complete device in housing
Yes
Design
Surface-mount device
Maximum rated operational voltage Ue AC
400 В
Modular design
No
Rated continuous current Iu
40 А
Suitable for front panel mounting
No
Suitable for base mounting
No
Suitable for intermediate mounting
No
Suitable for distribution board
Yes
With control unit
No
With return to zero position
No
With zero position
Yes
Ingress protection (IP) of front side
IP56
Switch type
ON/OFF switch
Switch type
ON/OFF switch
Product/component type
Rotary cam switch
Control element type
Short rotary handle (narrow grip)
