Generica (Группа IEK)
Switch ANCLR-22-3 to 3 fixed positions green neon/240V I-O NO+NC GENERICA BSW10-ANCLR-3-K06
SKU: BSW10-ANCLR-3-K06
ETIM: EC002611
4,050 ₽
Get back 40 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
Control buttons and switches are designed for rapid control of contactors (magnetic starters) and automation relays in AC circuits with a frequency of 50 Hz and voltage up to 660 V, or DC circuits with voltage up to 400 V.
Various color options allow for the most efficient assembly of boards and panels. All products consist of two units - a quick-release head and a contact module. The black contact group is making (1NO), and the brown contact group is breaking (1NC).
Height
48.0 мм
Depth
86.0 мм
Hole diameter
22.0 мм
Hole diameter
22.0 мм
Electric shock protection class
II
Number of auxiliary NO contacts
1
Number of auxiliary break contacts
1
Number of switch positions
3
Number of poles
1
Complete device in housing
No
Design
Built-in device
Maximum rated operational voltage Ue AC
660 В
Rated AC operating voltage of contacts
110; 230; 400; 660
Nominal operating voltage of DC contacts
24; 48; 110; 220; 440
Rated operating current Ie at AC-15 400 V
4.5
Rated thermal current Ith
10
Rated connection capacity
2x2.5
Rated insulation voltage Ui
660 В
Rated DC voltage from
440 В
Rated operational current Ie at AC-15, 230V
7.5 А
Rated continuous current Iu
7.5 А
Position designation
1-0-2
Suitable for front panel mounting
No
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
With return to zero position
No
With zero position
Yes
Ingress protection (IP) of front side
IP40
Ingress protection (IP) - contact side
IP00
Operating temperature from
-10...40 град.C
Switch type
Multi-step selector switch
Switch type
Multi-step selector switch
Product/component type
Cam switch
Main electrical circuit connection type
Screw connection
Handle type - additional devices
Short illuminated handle
Control element type
Short rotary handle (narrow grip)
Switch position latching
Yes
Switching function
Multi-step selector switch
Colour
Green
Color
Green
Width
30.0 мм
Electrical endurance
0.3
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1194 ₽
Электротехник Package switch 25A IP00 ПП4-40/Н2 исп.1 Электротехник ET003204
SKU: ET003204
1414 ₽
IEK Cam Switch Standard Handle 10A circuit 51 IEK MI-CS10-010-051
SKU: MI-CS10-010-051
2852 ₽

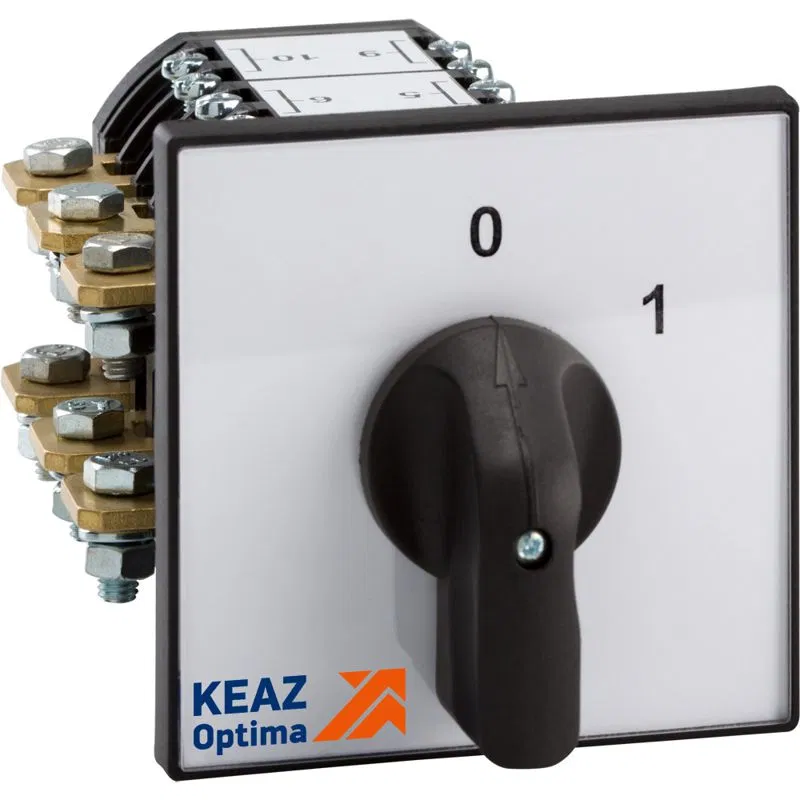

КЭАЗ OptiSwitch 4G10-2551-U-S1-R014 cam switch КЭАЗ 354599
