IEK

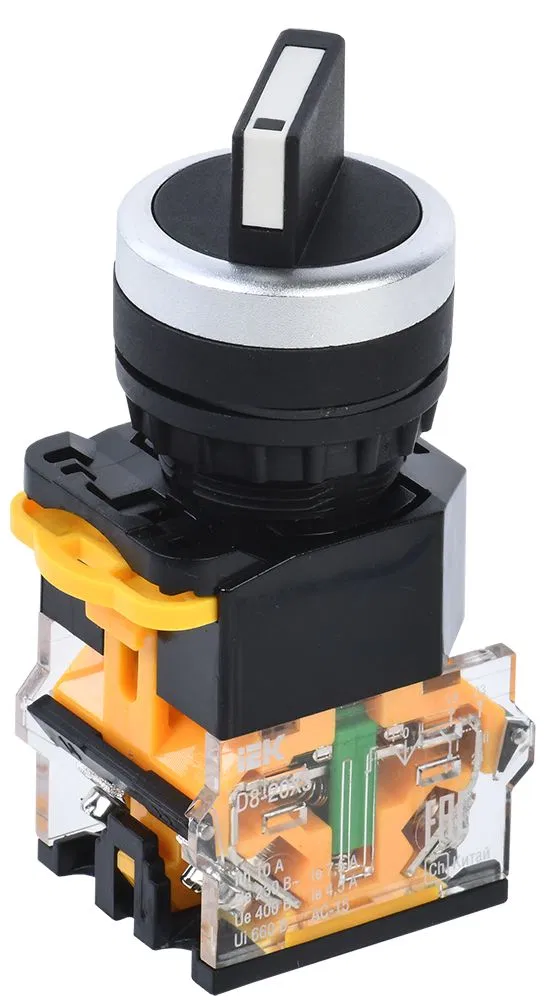

Selector switch D8-20X3 for 3 positions 2NO black IEK BSW30-20X3-4-24-2-K02
SKU: BSW30-20X3-4-24-2-K02
ETIM: EC001028
4,150 ₽
Get back 41 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
No description available
Height
42.0 мм
Height
42.0 мм
Depth
79.0 мм
Hole diameter
22.0 мм
Hole diameter
22.0 мм
Electric shock protection class
II
Number of auxiliary NO contacts
2
Number of auxiliary break contacts
0
Number of switch positions
3
Number of poles
1
Complete device in housing
No
Design
Built-in device
Maximum rated operational voltage Ue AC
400 В
Mech. endurance
0.6
Rated AC operating voltage of contacts
110; 230; 400; 660
Nominal operating voltage of DC contacts
24; 48; 110; 220; 440
Rated operating current Ie at AC-15 400 V
4.5
Rated thermal current Ith
10
Rated connection capacity
2x2.5
Rated insulation voltage Ui
660 В
Rated operational current Ie at AC-15, 230V
7.5 А
Rated continuous current Iu
7.5 А
Suitable for front panel mounting
Yes
Suitable for intermediate mounting
Yes
Suitable for distribution board
Yes
With return to zero position
No
With zero position
Yes
Ingress protection (IP) of front side
IP40
Ingress protection (IP) - contact side
IP00
Operating temperature from
-10...40 град.C
Switch type
Multi-step selector switch
Switch type
Multi-step selector switch
Product/component type
Cam switch
Main electrical circuit connection type
Screw connection
Control element type
Short rotary handle (narrow grip)
Switch position latching
Yes
Switching function
Multi-step selector switch
Colour
Black
Color
Black
Width
30.0 мм
Electrical endurance
0.3
