Non-contact capacitive switch IP65 30mm EMAS SCM30NM1OC2

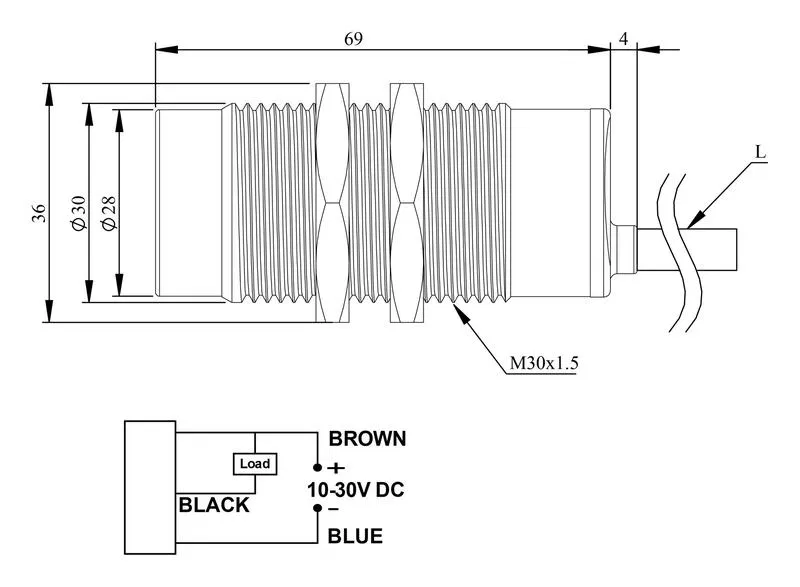

SCM30NM1OC2 Capacitive sensor (NPN-NC), cable 2m*3 (sensing dist. 3-15mm), protruding, metal, 10-30V DC, IP65 Name Body Type Voltage Sensing distance Mounting Switching frequency Connection Output SCM30NM1OC2 Cylinder 30 mm 10-30V DC 3-15 mm Protruding 25 Hz Cable 2 m NPN-NC S series sensors are designed for monitoring the position of metal objects; they are also widely used for industrial automation tasks. Sensor advantages: Fast switching capability Ease of installation Operation in extreme conditions Short-circuit and overload protection Reverse polarity protection Service life 1,000,000 operations (minimum value) Operating temperature -25C / +70C IP Protection IP65 Standard TS EN Technical characteristics EMAS IP65, 30 mm. SCM30NM1OC2 Type sensor Body type cylinder Mounting protruding Output NPN-NC Switching frequency 25 Hz Sensing distance 15 mm Degree of protection IP65 Net weight 0.084 kg Dimensions without packaging 75x40x40 mm Model range SCM
