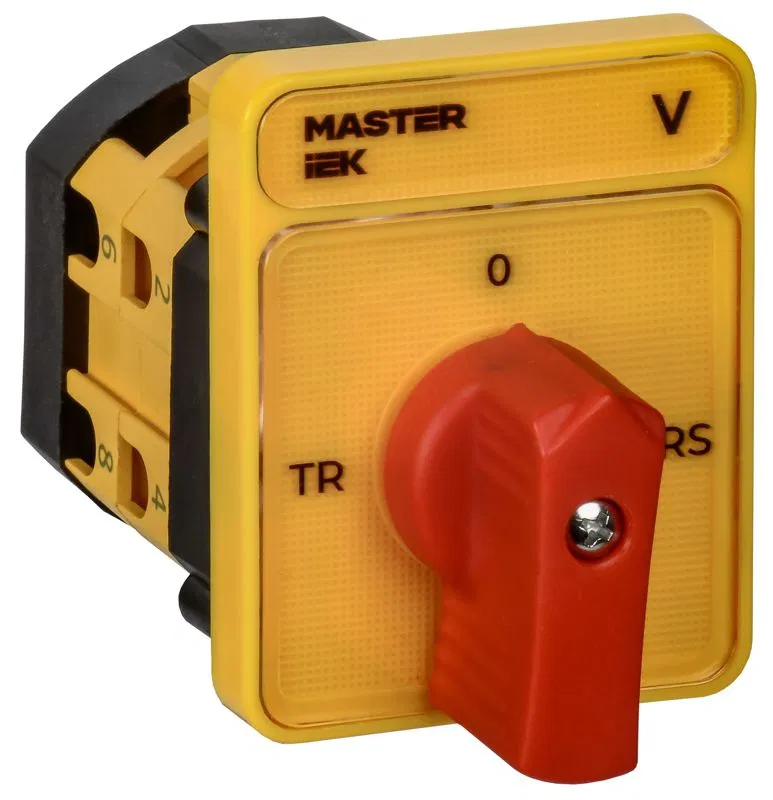

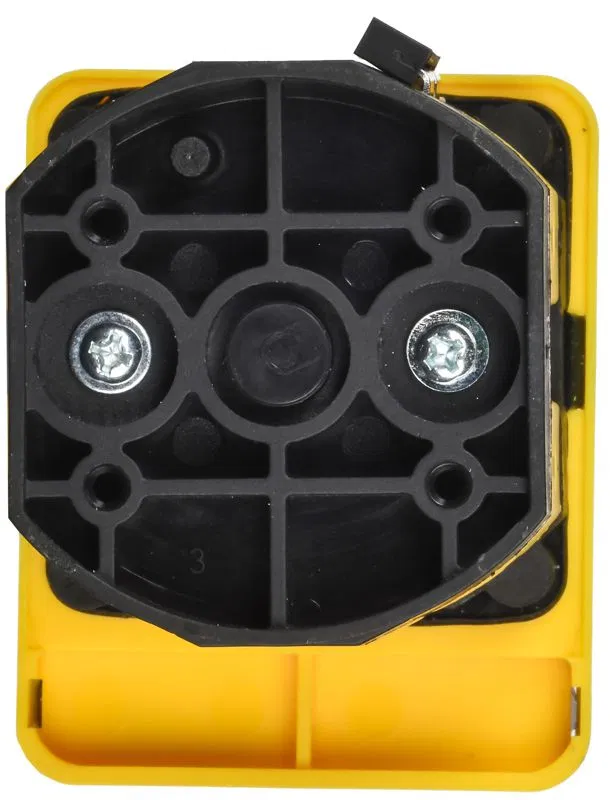

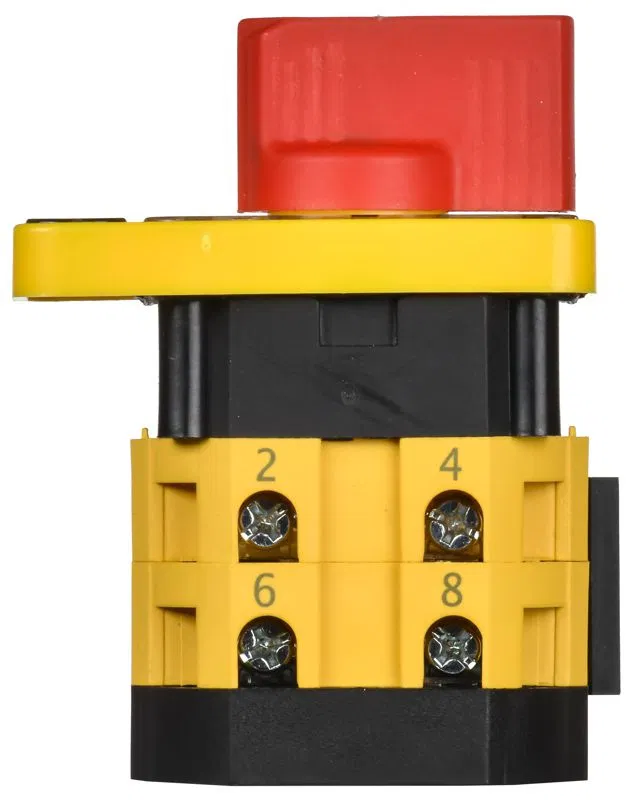

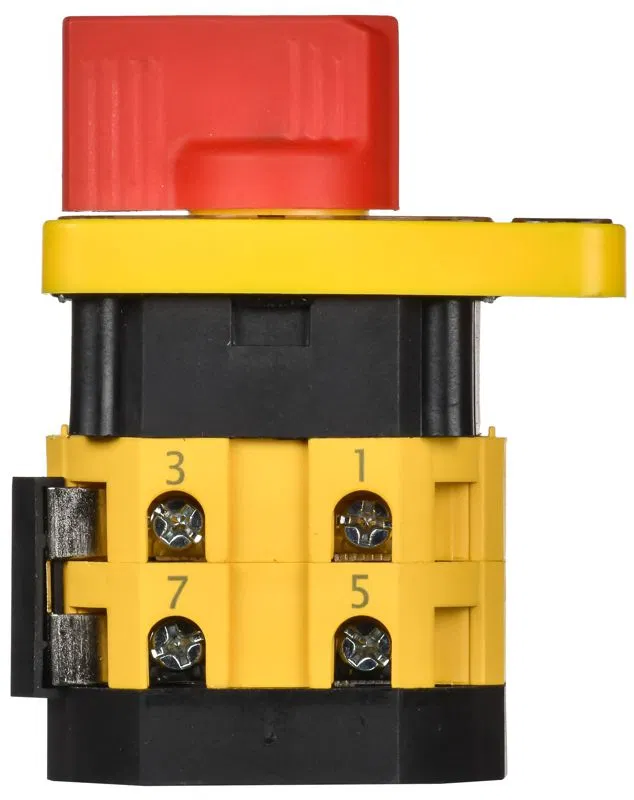

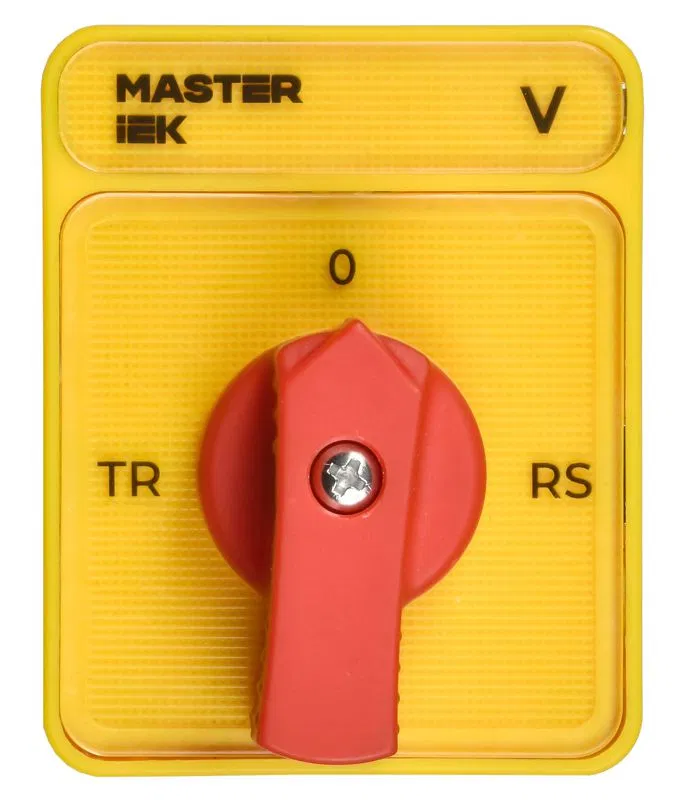

Cam switch standard handle 10A scheme 67 IEK MI-CS10-010-067
SKU: MI-CS10-010-067
ETIM: EC002611
2186 ₽
Price list (incl. VAT):
3498 ₽
Preorder
Переключатели кулачковые MASTER IEK представляют собой механическое устройство без собственного потребления электроэнергии. Предназначены для установки в качестве коммутационных аппаратов в электрических цепях, могут использоваться для управления приводами, переключения цепей управления, сигнализации, в измерительных цепях и т.д.
Линейка кулачковых переключателей MASTER включает 29 коммутационных схем и 6 конструктивных типоисполнений, что позволяет подобрать оптимальное решение для конкретных задач.
| Design as auxiliary/maintenance switch | Yes |
| Version as main switch | |
| Number of auxiliary NO contacts | 0 |
| Number of auxiliary break contacts | 0 |
| Number of switch positions | 4 |
| Number of poles | 2 |
| Complete device in housing | No |
| Design | Built-in device |
| Maximum rated operational voltage Ue AC | 690 В |
| Mech. endurance | 0,3 |
| Modular design | Yes |
| Circuit diagram number | 67 |
| Rated impulse withstand voltage | 4 |
| Rated power at AC-2 230 V | 2 |
| Rated power at AC-2 400 V | 3 |
| Rated power at AC-23 230V | 3 |
| Rated power at AC-23 400 V | 5 |
| Rated power at AC-3 230 V | 1 |
| Rated power at AC-3 400 V | 2 |
| Rated power at AC-4 230V | 0,37 |
| Rated power at AC-4 400 V | 0,55 |
| Rated AC operating voltage of contacts | 230; 400; 690 |
| Nominal operating voltage of DC contacts | 24; 48; 110; 220 |
| Rated operational current Ie at AC-2 230 V | 5,5 |
| Rated operational current Ie at AC-2 400 V | 5,5 |
| Rated operational current Ie at AC-21 AC-22 230 V | 10 |
| Rated operating current Ie at AC-21 AC-22 400 V | 10 |
| Rated operational current Ie at AC-23 230 V | 7,5 |
| Rated operating current Ie at AC-23 400V | 6,5 |
| Rated operating current Ie at AC-3 230 V | 1,75 |
| Rated operating current Ie at AC-3 400V | 1,75 |
| Rated operating current Ie at AC-4 230 V | 2 |
| Rated operational current Ie at AC-4 400 V | 2 |
| Rated thermal current Ith | 10 |
| Rated conditional short-circuit current Icn | 3 |
| Rated connection capacity | 2,5 |
| Rated voltage | 690 В |
| Rated insulation voltage Ui | В |
| Rated DC voltage from | 24; 48; 110; 220 В |
| Rated continuous current Iu | 10 А |
| Position designation | Uca-0-Uab-Ubc |
| Suitable for front panel mounting | Yes |
| Suitable for base mounting | No |
| Suitable for intermediate mounting | Yes |
| Suitable for distribution board | No |
| Front panel size | 48x48 mm |
| With control unit | |
| With return to zero position | No |
| With zero position | Yes |
| Stranded flexible conductor cross-section from | 1,5…4 кв.мм |
| Ingress protection (IP) of front side | IP40 |
| Ingress protection (IP) in enclosure | IP40 |
| Ingress protection (IP) - contact side | IP00 |
| IP protection rating | |
| Operating temperature from | -5…40 град.C |
| Switch type | Multi-step selector switch |
| Product/component type | Cam switch |
| Design type | Open |
| Main electrical circuit connection type | Screw connection |
| Control element type | Short rotary handle (narrow grip) |
| Fuse current qG | 12 |
| Switch position latching | Yes |
| Switching function | Multi-step selector switch |
| Colour | Black |
| Electrical endurance | 0,0015 |
