IEK

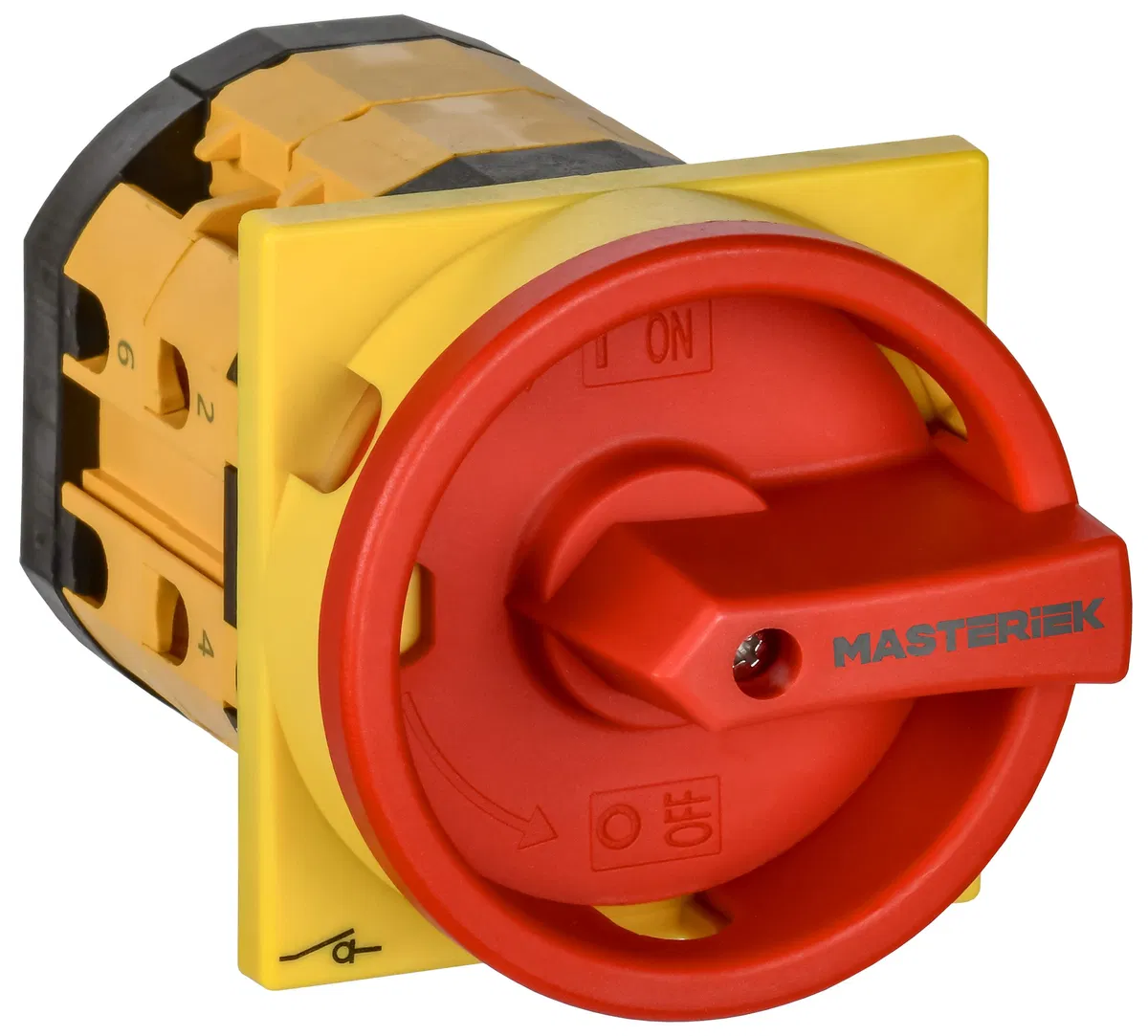

Cam Switch Enclosed Emergency Handle 16A Diagram 91 IEK MI-CS12-016-091
SKU: MI-CS12-016-091
ETIM: EC002611
94,867 ₽
Get back 948 ₽ in points
Order multiple: 60 шт
Analogues by specifications
Stock by warehouse
No description available
Design as auxiliary/maintenance switch
Yes
Version as main switch
Yes
Number of auxiliary NO contacts
0
Number of auxiliary break contacts
0
Number of switch positions
2
Number of poles
2
Complete device in housing
No
Design
Built-in device
Maximum rated operational voltage Ue AC
690 В
Mech. endurance
0.3
Modular design
Yes
Circuit diagram number
91
Rated impulse withstand voltage
4
Rated power at AC-23 230V
4
Rated power at AC-23 400 V
7
Rated power at AC-3 230 V
3
Rated power at AC-3 400 V
5
Rated AC operating voltage of contacts
230; 400; 690
Nominal operating voltage of DC contacts
24; 48; 110; 220
Rated operational current Ie at AC-2 230 V
11
Rated operational current Ie at AC-2 400 V
11
Rated operational current Ie at AC-21 AC-22 230 V
16
Rated operating current Ie at AC-21 AC-22 400 V
16
Rated operational current Ie at AC-23 230 V
13
Rated operating current Ie at AC-23 400V
13
Rated operating current Ie at AC-3 230 V
3.5
Rated operating current Ie at AC-3 400V
3.5
Rated operating current Ie at AC-4 230 V
5
Rated operational current Ie at AC-4 400 V
4
Rated thermal current Ith
16
Rated conditional short-circuit current Icn
6
Rated connection capacity
2.5
Rated voltage
690 В
Rated insulation voltage Ui
690 В
Rated DC voltage from
24; 48; 110; 220 В
Rated continuous current Iu
16.0 А
Position designation
OFF-ON
Suitable for front panel mounting
Yes
Suitable for base mounting
No
Suitable for intermediate mounting
Yes
Suitable for distribution board
No
Front panel size
65x65 mm
With control unit
No
With return to zero position
No
With zero position
Yes
Stranded flexible conductor cross-section from
1…2.5 кв.мм
Ingress protection (IP) of front side
IP40
Ingress protection (IP) in enclosure
IP40
Ingress protection (IP) - contact side
IP00
IP protection rating
IP20
Operating temperature from
-5…40 град.C
Switch type
ON/OFF switch
Switch type
ON/OFF switch
Product/component type
Cam switch
Design type
Open
Main electrical circuit connection type
Screw connection
Control element type
Rotary position knob (latching)
Fuse current qG
20
Switch position latching
Yes
Switching function
Multi-step selector switch
Colour
Black
Color
Black
Electrical endurance
0.0015
