Switch SB4 with backlight assembly 22mm 3pos. with locking metal 230V AC 1NO+1NC yellow SE SB4BK135M5 Systeme Electric
SKU: SB4BK135M5
ETIM: EC001029
1,630 ₽
Get back 16 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
SB4 series switch assembly with backlight, for mounting in 22 mm diameter holes, 3-position, yellow, with locking, in a metal housing. Backlight unit supply voltage: 230V AC. Number of contacts: 1NO+1NC. SystemeSig control and signaling devices are widely used in process equipment and machines, distribution and control cabinets, industrial enterprises, infrastructure facilities, and civil engineering (formerly Schneider Electric Harmony Sig XB4BK135M5).
Without self-return (with latching)
Yes
Supplied with lamp
Yes
Hole diameter
22.5 мм
Number of normally closed (NC) contacts
1
Number of normally open (NO) contacts
1
Number of switching contacts
0
Number of switch positions
3
Front ring material
Metal
Supply voltage to
240 В
Supply voltage from
230 В
With return spring
No
With front ring
Yes
With illumination
Yes
IP protection rating
IP65
Connection type
Screw connection
Control element type
Short rotary handle
Button color
Yellow
Front ring colour
Chrome
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
1317 ₽
EMAS 2-0-1 Switch with latch (2NO) EMAS CP101S30
SKU: CP101S30
465 ₽
EKF BD33 3P Switch with red backlight 24V NO EKF PROxima xb2-bk33-r-24
SKU: xb2-bk33-r-24
4878 ₽
Электротехник Universal switch UP 5312-C128 Elektrotekhnik ET002907
SKU: ET002907
Price on request

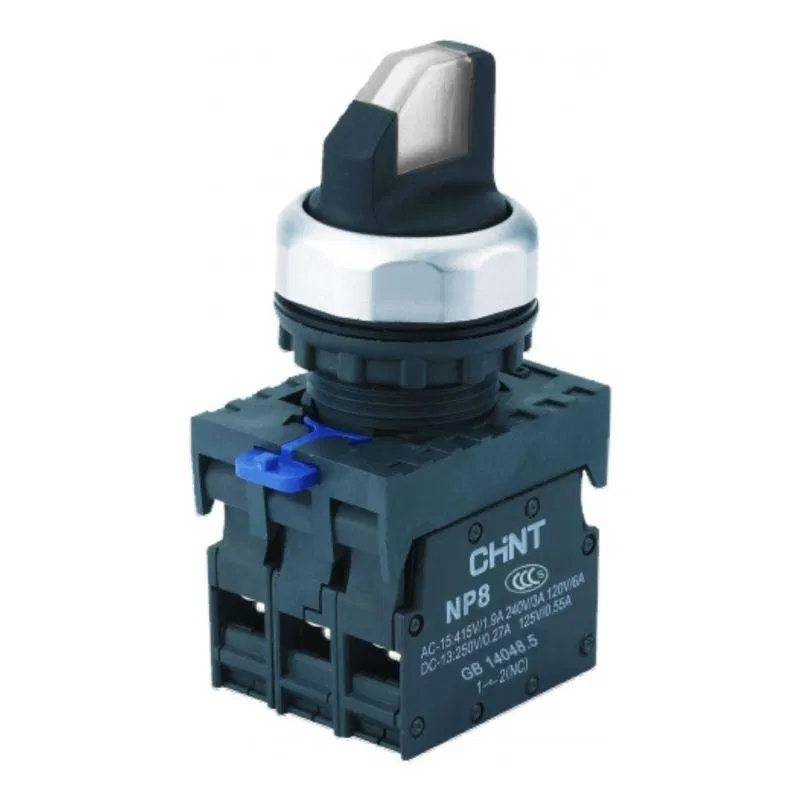

CHINT Switch with illumination NP8-10XD/213 2 pos. fix. green AC/DC 24V(LED) 1NO+1NC IP65 (R) CHINT 667188
