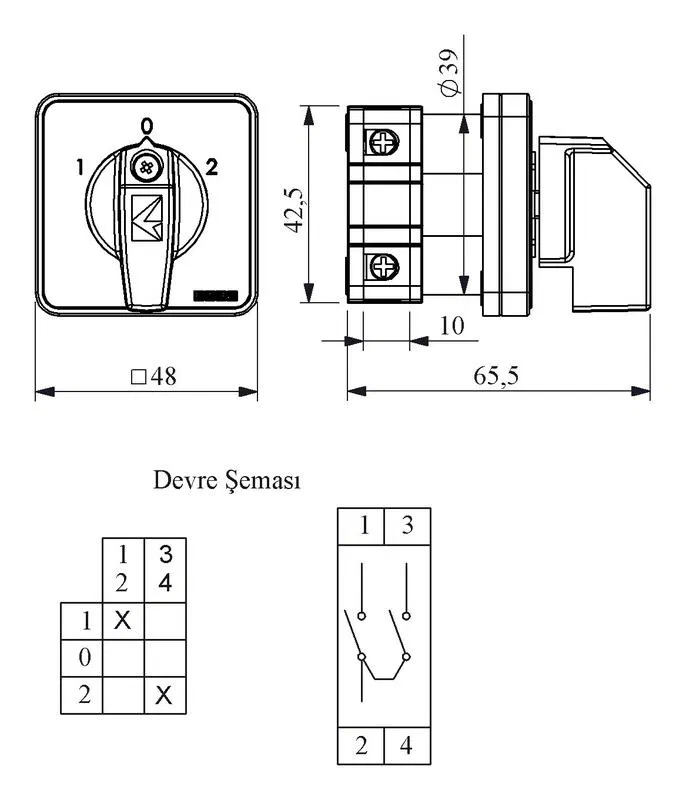

Single-phase reversing switch (1-0-2) 16A EMAS PSA016KD134S

PS series cam switches are mechanical devices with no power consumption of their own and are designed for installation as switching devices in electrical circuits. PS series switches can also be used as main switches or group switches for controlling single- or three-phase motor drives, switching with a required control circuit switching program, signaling, and in measuring circuits. Used in AC electrical circuits with voltages from 220 to 400 V. High precision Variety of modifications for a wide range of applications Long service life Compact bakelite housing Wide range of switches Ergonomic handle Mechanical life 100,000 operations (minimum value) Electrical life 50,000 operations (minimum value) Operating temperature -5C / +40 C IP Protection IP54 and IP56 (Front side) Maximum breaking capacity 6 kA Operating voltage 220V - 400V Operating current 10A - 120A Dielectric strength 1890V AC (for 1 minute) Insulation resistance 10 MOhm (at 500V DC) Operating frequency 50 Hz Standard TS EN 60947-3
