EKF

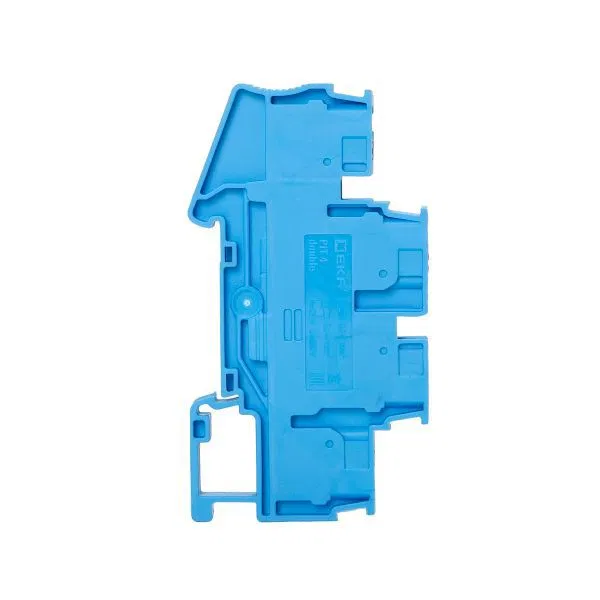

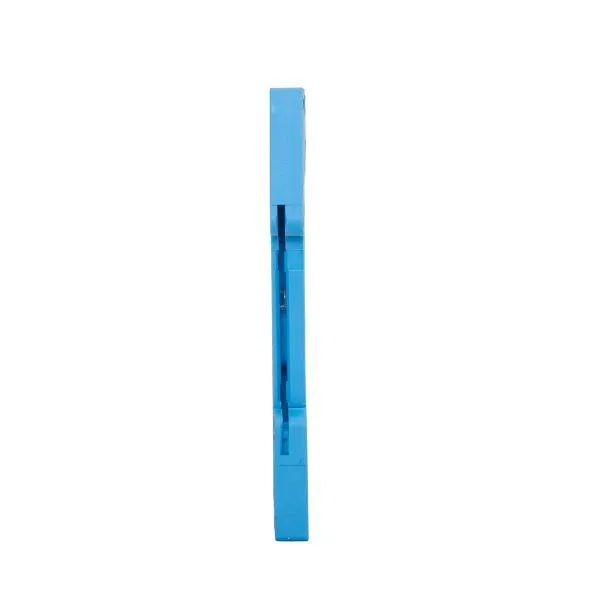

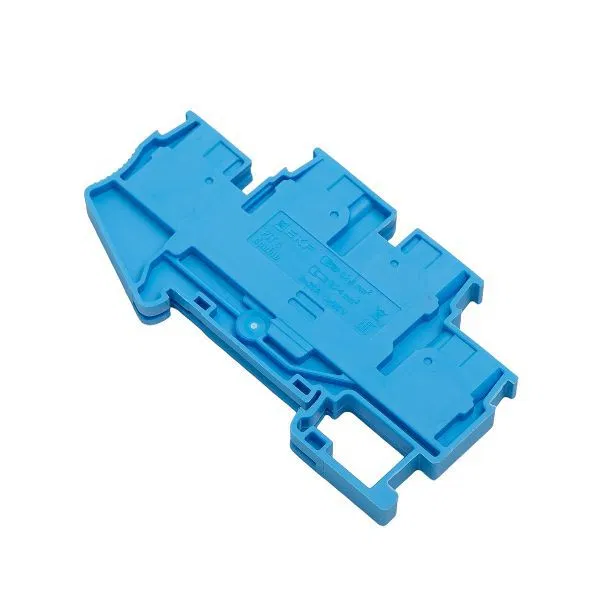

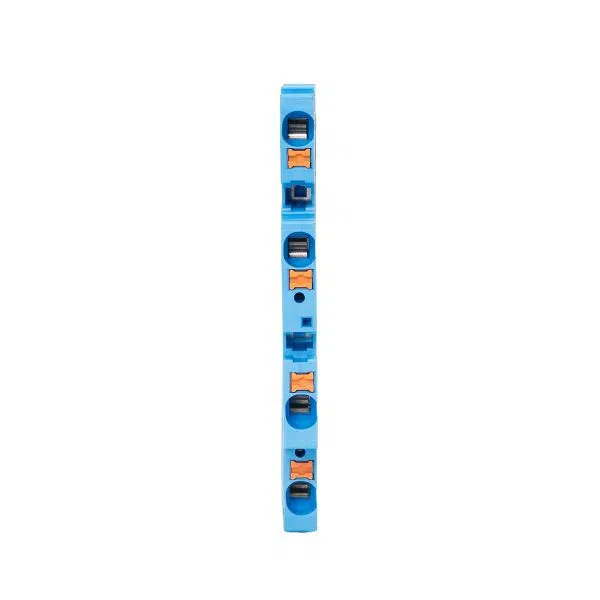

Two-level terminal Push-in 4 mm2 4 terminals blue EKF PIT-4-double-b
SKU: PIT-4-double-b
ETIM: EC000897
172 ₽
Get back 1 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

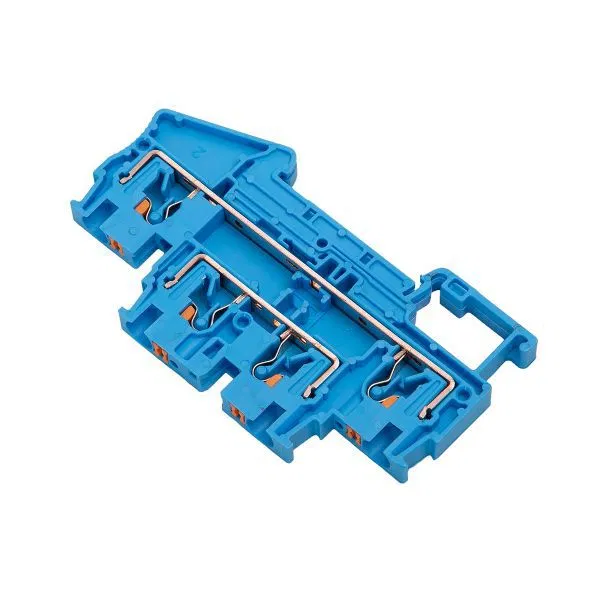

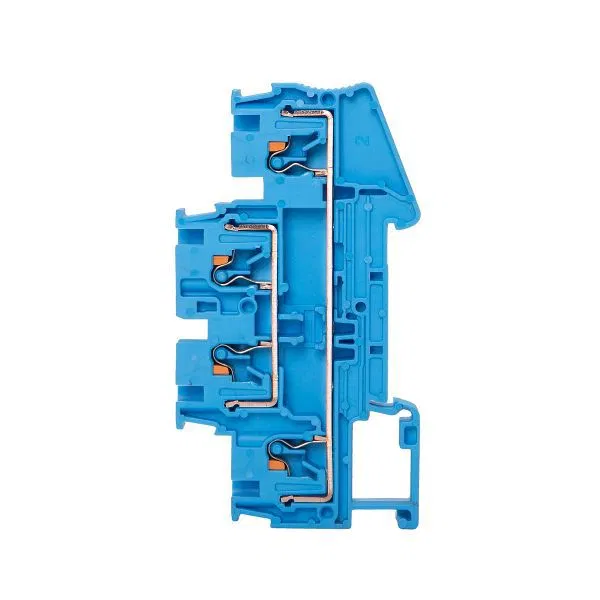

Push-in terminals allow for maximum acceleration of the installation process and easier operation, while two channels for jumpers will allow for the creation of various connection and power distribution schemes. Push-in connection technology allows for a simple way to connect conductors from 1.5 to 6 mm² directly and without tools. Special contact springs guarantee ease of insertion and high contact quality.
Version tested for explosion protection "Ex e"
No
Internally linked levels
No
Length
83.5 мм
Insulated
Yes
Flammability class of insulation material in accordance with UL57
V0
Number of terminals per level
2
Number of poles
2
Number of levels
2
Housing insulation material
Polyamide (PA)
Rated voltage
500 В
Rated current In
32 А
Closing plate can be fitted if required
Yes
Operating temperature
40 град.C
Operating temperature from
-40...40 град.C
Module size
6.2 мм
Connection position
Top
With protection against contact with live parts
Yes
With sealing head
No
Core cross-section
4 кв.мм
Stranded wire cross-section with ferrule
0.2...4 мм²
Flexible stranded conductor cross-section up to
4 кв.мм
Stranded flexible conductor cross-section from
0.2...4 кв.мм
Solid conductor cross-section to
4 кв.мм
Solid conductor cross-section from
0.2...4 кв.мм
Extra-fine-stranded flexible conductor cross-section without ferrule, from
0.2...4 кв.мм

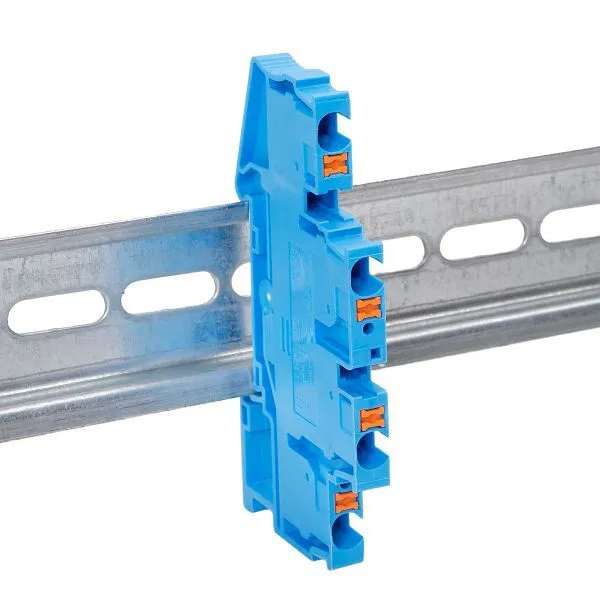

Mounting method
DIN rail (O-profile) 35 mm
Electrical connection type 1
Spring clamp connection
Electrical connection type 2
Spring clamp connection
Color
Blue
Width/connection pitch
6.2 мм
