EKF

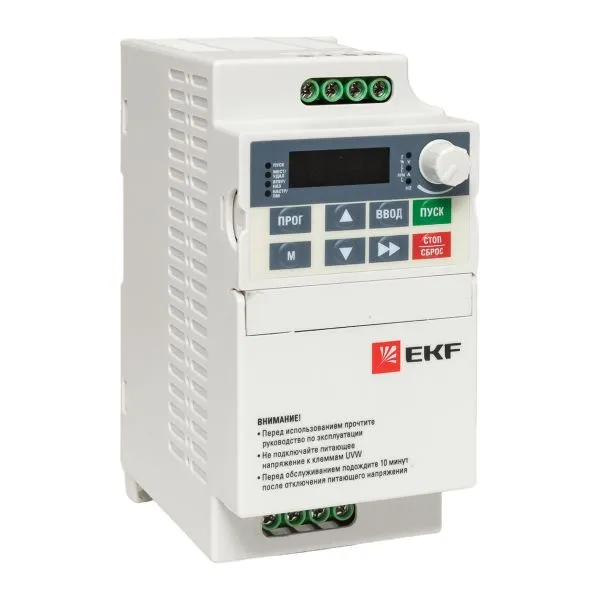

Frequency converter 0.75 kW 3x400V VECTOR-80 EKF Basic VT80-0R7-3
SKU: VT80-0R7-3
ETIM: EC001857
11,066 ₽
Get back 110 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Four-quadrant operation possible
Yes
Height
152 мм
Height
152 мм
Output power at rated output voltage
0.75 кВт
Depth
126 мм
Approved for use in residential and commercial areas
Yes
Permitted for use in industrial areas
Yes
Number of HW PROFINET interfaces
0
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
0
Number of HW parallel interfaces
0
Number of HW serial RS-232 interfaces
0
Number of HW serial RS-422 interfaces
0
Number of HW serial RS-485 interfaces
1
Number of HW serial TTY interfaces
0
Number of analog inputs
1 шт.
Number of analogue outputs
1 шт.
Number of input phases
3
Number of output phases
3
Number of other HW hardware interfaces
0
Number of digital inputs
4 шт.
Number of digital outputs
1 шт.
Max. output at quadratic load at rated output voltage
0.75 кВт
Maximum output frequency
400 Гц
Maximum output voltage
400 В
Mains voltage from
340...460 В
Rated output current
2.1 А
Relative symmetrical permissible mains frequency deviation
15 %
Relative symmetrical permissible mains voltage limit
15 %
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for BACnet
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
With control unit
Yes
With built-in braking resistors
No
With optical interface
No
With PC connection
No
Ingress protection (NEMA)
1
IP protection rating
IP21
AC frequency converter type
Direct converter
Mains frequency
50/60 Hz
Width
72 мм
