EKF

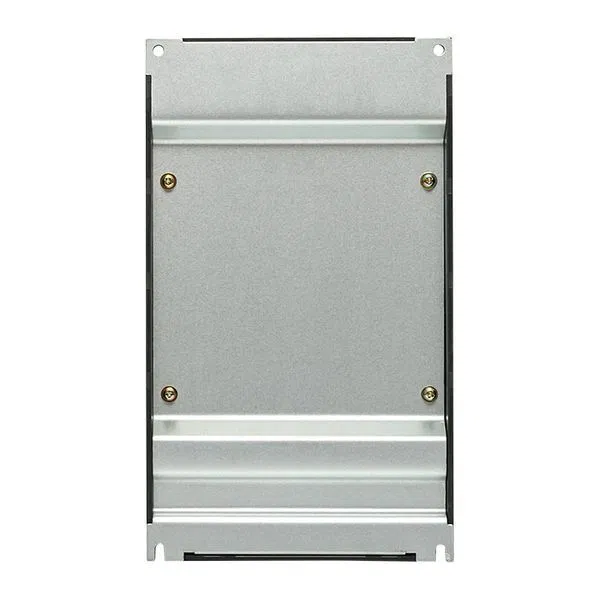

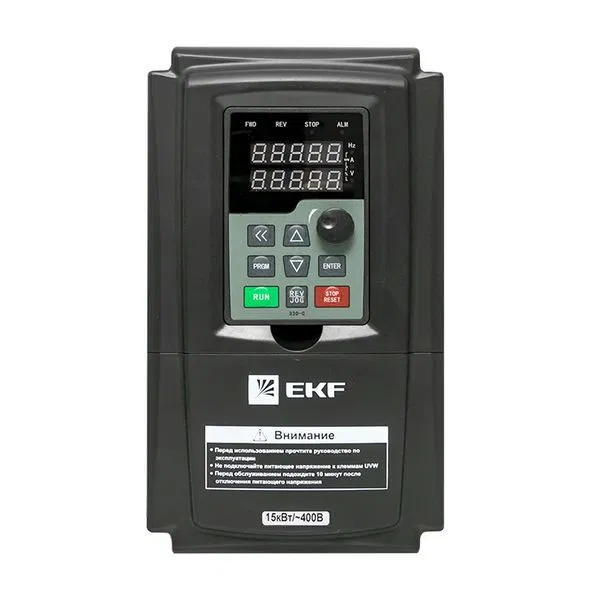

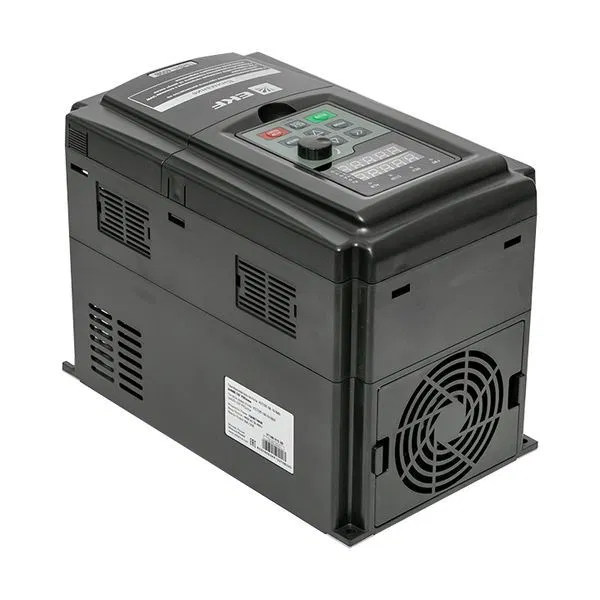

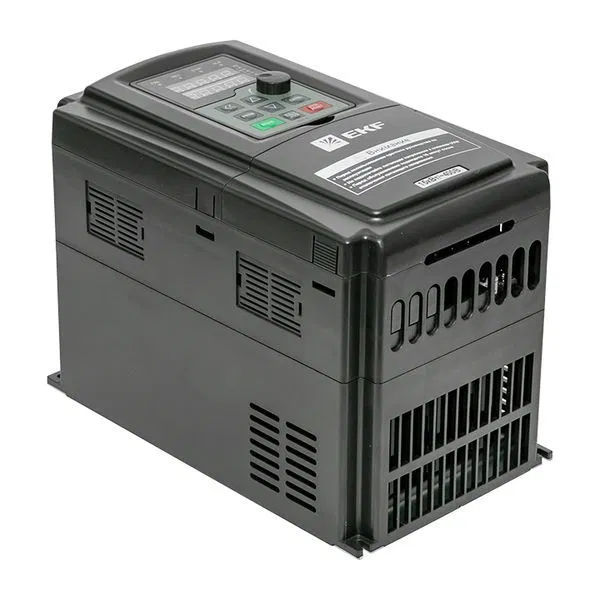

Frequency converter 11/15kW 3x400V VECTOR-100 EKF PROxima VT100-011-3B
SKU: VT100-011-3B
ETIM: EC001857
36,641 ₽
Get back 366 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
EKF VECTOR-100 general industrial frequency converters ensure precise motor speed maintenance depending on external factors. They provide a reduction in energy consumption of 30% or more. They are produced at rated powers from 0.4 to 630 kW.
Four-quadrant operation possible
Yes
Height
272 мм
Output power at rated output voltage
11 кВт
Depth
201 мм
Permitted for use in industrial areas
Yes
Number of HW serial RS-485 interfaces
1
Number of analog inputs
2 шт.
Number of analogue outputs
2 шт.
Number of input phases
3
Number of output phases
3
Number of digital inputs
5 шт.
Number of digital outputs
4 шт.
Maximum output power at linear load at rated output voltage
11 кВт
Maximum output frequency
600 Гц
Maximum output voltage
400 В
Mains voltage to
460 В
Mains voltage from
340...460 В
Rated output voltage
400 В
Rated output current
25 А
Rated output current
25 А
Relative symmetrical permissible mains frequency deviation
15 %
Relative symmetrical permissible mains voltage limit
15 %
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET IO protocol support
No
Protocol support for other system buses
No
With control unit
Yes
With built-in braking resistors
Yes
With optical interface
No
With PC connection
Yes
IP protection rating
IP20
AC frequency converter type
Direct converter
Mains frequency
50/60 Hz
Width
160 мм
