EKF

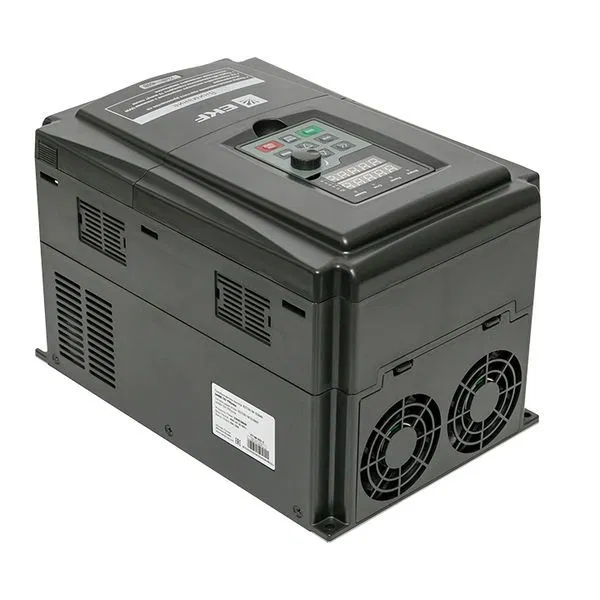

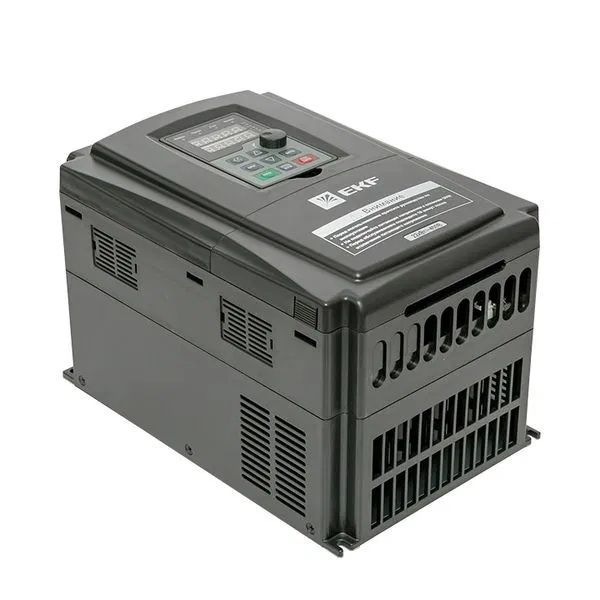

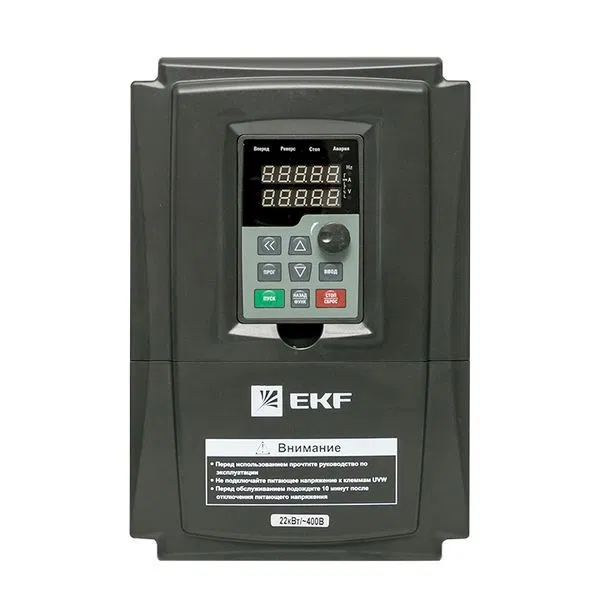

Frequency converter 22/30kW 3x400V with braking module VECTOR-100 EKF PROxima VT100-022-3B
SKU: VT100-022-3B
ETIM: EC001857
67,355 ₽
Get back 673 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
EKF VECTOR-100 general industrial frequency converters ensure precise motor speed maintenance depending on external factors. They provide a reduction in energy consumption of 30% or more. They are produced at rated powers from 0.4 to 630 kW.
Four-quadrant operation possible
Yes
Height
313 мм
Height
313 мм
Output power at rated output voltage
22 кВт
Depth
202 мм
Permitted for use in industrial areas
Yes
Number of HW serial RS-485 interfaces
1
Number of analog inputs
2 шт.
Number of analogue outputs
2 шт.
Number of input phases
3
Number of output phases
3
Number of digital inputs
5 шт.
Number of digital outputs
4 шт.
Maximum output power at linear load at rated output voltage
22 кВт
Maximum output frequency
600 Гц
Maximum output voltage
400 В
Mains voltage to
460 В
Mains voltage from
340...460 В
Rated output current
45 А
Relative symmetrical permissible mains frequency deviation
15 %
Relative symmetrical permissible mains voltage limit
15 %
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET IO protocol support
No
Protocol support for other system buses
No
With control unit
Yes
With built-in braking resistors
No
With optical interface
No
With PC connection
Yes
IP protection rating
IP20
AC frequency converter type
Direct converter
Mains frequency
50/60 Hz
Width
211 мм
