52,787 ₽
Get back 527 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse

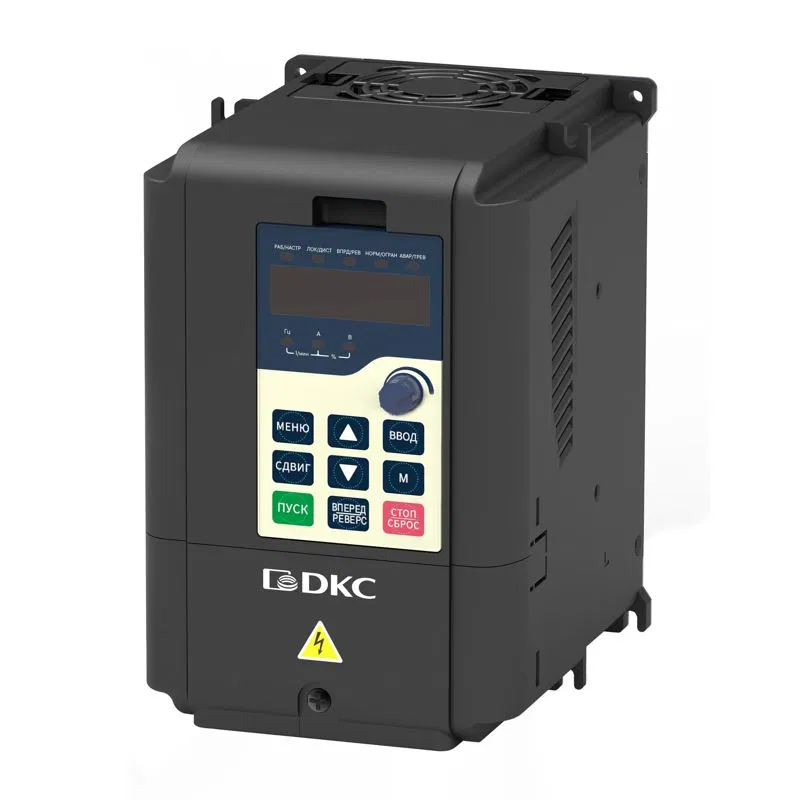

DKC "Mitra" (Mitra) V2000 frequency converter for controlling three-phase asynchronous motors in fans, pumps, and conveyors. Power supply: 3-phase, 380 V. Output power: 18.5 kW. Equipped with a built-in braking resistor and EMC filter. Supports vector control with and without feedback, as well as scalar control. Features a simple PLC, 6 discrete and 2 analog inputs, 2 relays, 2 transistor outputs, and 2 analog outputs. For integration into ACS TP, RS-485 (Modbus RTU) and CAN (CANopen) are supported. An encoder interface card can be connected. Features include automatic startup of a rotating motor, auto-adaptation, current limiting, overvoltage protection, and dual motor control. Settings can be copied via a removable operator panel (included with the frequency converter).
Height
320 mm
Height
320 mm
Depth
207 mm
Number of HW serial RS-485 interfaces
1
Number of analog inputs
2 pcs
Number of analogue outputs
2 pcs
Number of input phases
3
Number of output phases
3
Number of digital inputs
6 pcs
Number of digital outputs
2 pcs
Maximum output power at linear load at rated output voltage
18.5 kW
Maximum output frequency
600 Hz
Maximum output voltage
480 V
Mains voltage to
480 V
Mains voltage from
380 V
Rated output current
37 A
CAN protocol support
Yes
MODBUS protocol support
Yes
With control unit
Yes
With PC connection
Yes
IP protection rating
IP20
AC frequency converter type
Converter in voltage source mode
Mains frequency
50/60 Hz
Width
170 mm
