ONI (Группа IEK)
Frequency converter A150 380V 3Ph 2.2kW 6A with built-in braking module ONI A150-33-22NT
SKU: A150-33-22NT
ETIM: EC001857
245,484 ₽
Get back 2,454 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 12 шт
Analogues by specifications
No description available
Input current, ND variable load mode
5.8
Height
165 мм
Height
165 мм
Output power at rated output voltage
2.20 кВт
Output frequency
0...600
ND mode output current at variable load
6.0
Depth
162 мм
Mechanical design group
M2
Operating input voltage range
323...460
Approved for use in residential and commercial areas
Yes
Permitted for use in industrial areas
Yes
Climatic version
UKhL3.1
Number of HW serial RS-485 interfaces
0
Number of input phases
3
Number of output phases
3
Number of phases
3
Max. motor power in ND variable load mode
2.2
Maximum output power at linear load at rated output voltage
- кВт
Maximum output frequency
600 Гц
Maximum output voltage
400 В
Control method
Open-loop vector control
Output voltage from
0...400 В
Mains voltage to
380 В
Mains voltage from
380 В
Carrier frequency
0.5...16
Rated output voltage
400 В
Rated output current
6.0 А
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
With control unit
Yes
With built-in braking resistors
Yes
With PC connection
No
IP protection rating
IP20
Operating temperature from
-10...40 град.C
Cooling type: air cooling, water cooling
Fan (built-in)
AC frequency converter type
Direct converter
Control type
V/f and open-loop vector
Mains frequency
50/60 Hz
Width
105 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
53011 ₽
ONI (Группа IEK) Frequency converter FC-210 3Ph 380V 15kW 32A built-in braking module EMC filter ONI FC-210-33-01500G-TNF-M000
SKU: FC-210-33-01500G-TNF-M000
143592 ₽
PitON Frequency converter type PAC0350 Phd 45kW Ihd 92A Pn 55kW In 115A 400V IP20 built-in DC-choke PitON PAC0350X092AX3
SKU: PAC0350X092AX3
343322 ₽
INVT GD300-01A-075G-4 Frequency converter Comp 75kW 380V INVT 11001-01397
SKU: 11001-01397
49952 ₽

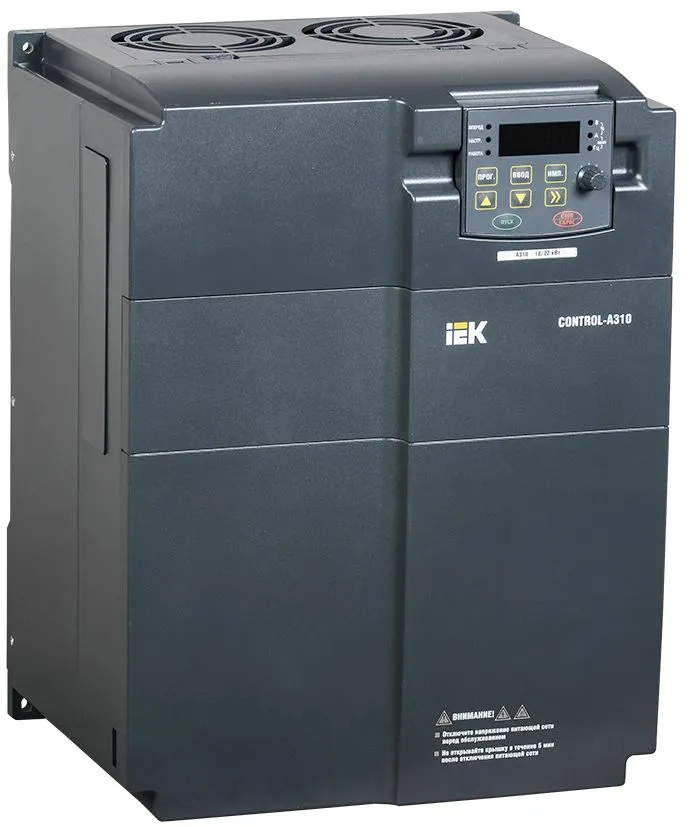

ONI (Группа IEK) Frequency converter CONTROL-A310 380V 3-phase 7.5-11kW 17-25A IEK CNT-A310D33V075-11TEZ
