ONI (Группа IEK)
Frequency converter K750 380V 3Ph 200-220kW 377-426A with DC choke ONI K750-33-200220RM
SKU: K750-33-200220RM
ETIM: EC001857
1,302,245 ₽
Get back 13,022 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
Weight
119.2 кг
Input current HD constant load mode
380
Input current, ND variable load mode
425
Height
1166 мм
Height
1166 мм
Output power at rated output voltage
200.00 кВт
Output frequency
0...600
Output current, HD mode constant load
377.0
ND mode output current at variable load
426.0
Depth
358 мм
Mechanical design group
M2
Operating input voltage range
323...483
Permitted for use in industrial areas
Yes
Electric shock protection class
I
Climatic version
UKhL3.1
Number of HW serial RS-485 interfaces
1
Number of input phases
3
Number of output phases
3
Number of phases
3
Max. motor power in HD constant load mode
200
Max. motor power in ND variable load mode
220
Maximum output power at linear load at rated output voltage
200 кВт
Maximum output frequency
600 Гц
Maximum output voltage
483 В
Maximum supply cable cross-section
95x2 кв.мм
Output voltage from
0...483 В
Mains voltage from
400 В
Carrier frequency
1...4
Rated output voltage
400 В
Rated output current
426.0 А
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
With control unit
Yes
With built-in braking resistors
No
With PC connection
Yes
IP protection rating
IP20
Operating temperature from
-10...40 град.C
Cooling type: air cooling, water cooling
Fan (built-in)
AC frequency converter type
Other
Mains frequency
50/60 Hz
Width
490 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
84133 ₽
ONI (Группа IEK) Frequency Inverter K751 380V 3-Phase 15-18kW 32-37A ONI K751-33-1518TM
SKU: K751-33-1518TM
44739 ₽
CHINT Frequency converter NVF7-0.75T-D2-B1 built-in braking chopper LCD panel EMC C3 CHINT 512508
SKU: 512508
20879 ₽
ONI (Группа IEK) Frequency converter FC-230 3Ph 380V 1.5kW 4A built-in brake module ONI FC-230-33-015T
SKU: FC-230-33-015T
26689 ₽

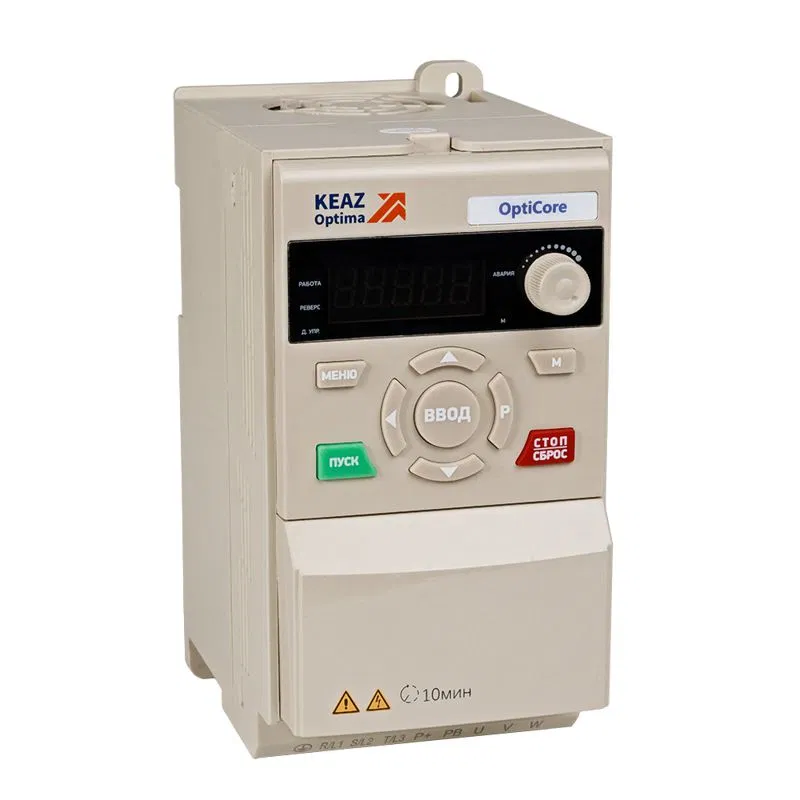

КЭАЗ OptiCore A300-5K5-Н4К-380-0-Т Frequency converter KEAZ 342657
