EKF

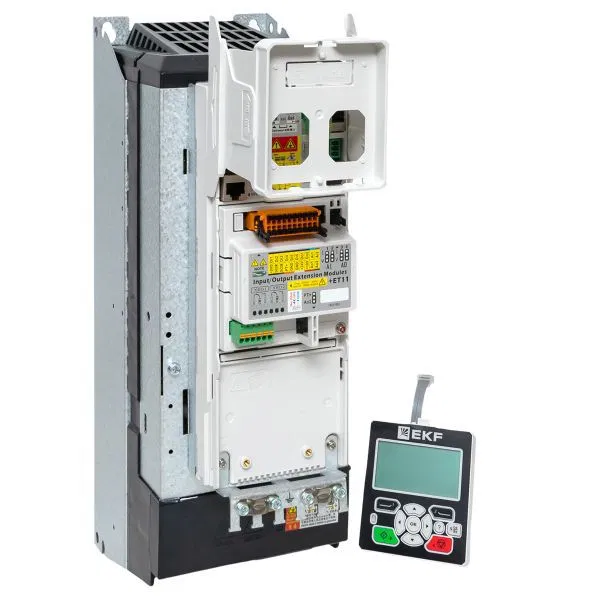

Frequency converter PRO-Drive PD-500-E88-22K-43-B-PN EKF
SKU: PD-500-E88-22K-43-B-PN
ETIM: EC001857
459,084 ₽
Get back 4,590 ₽ in points
Analogues by specifications
Stock by warehouse

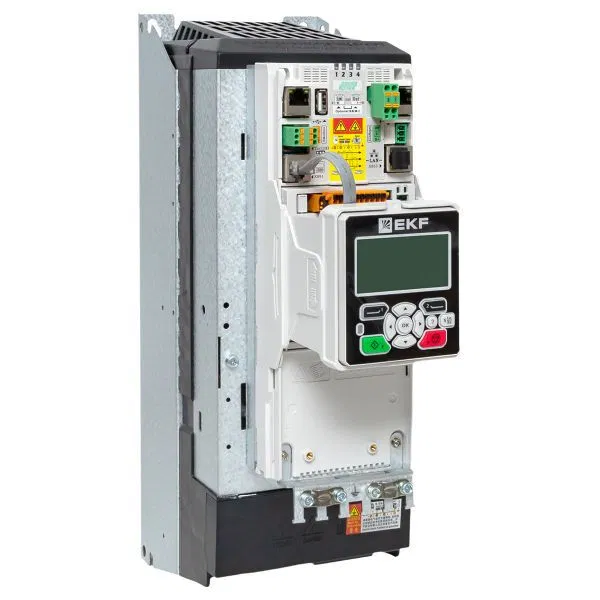

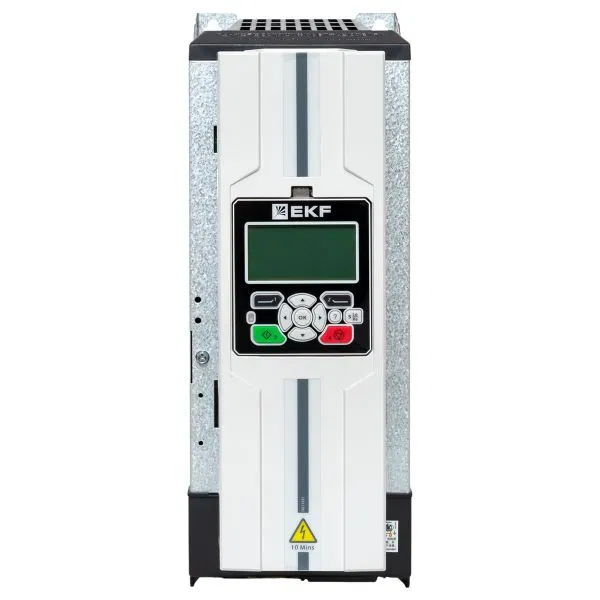

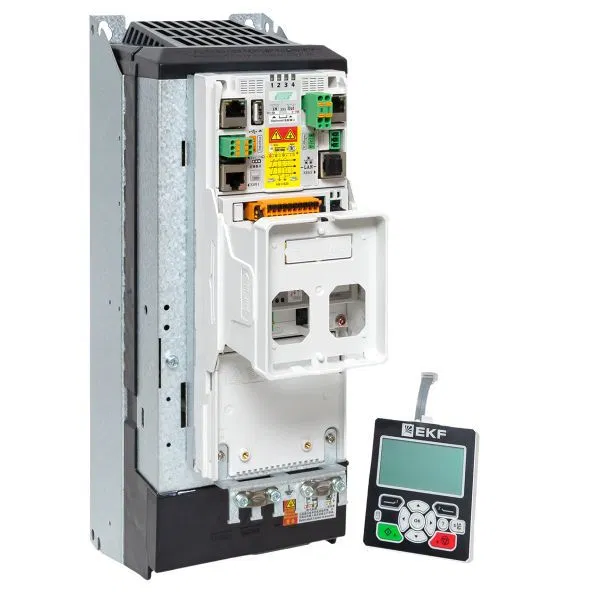

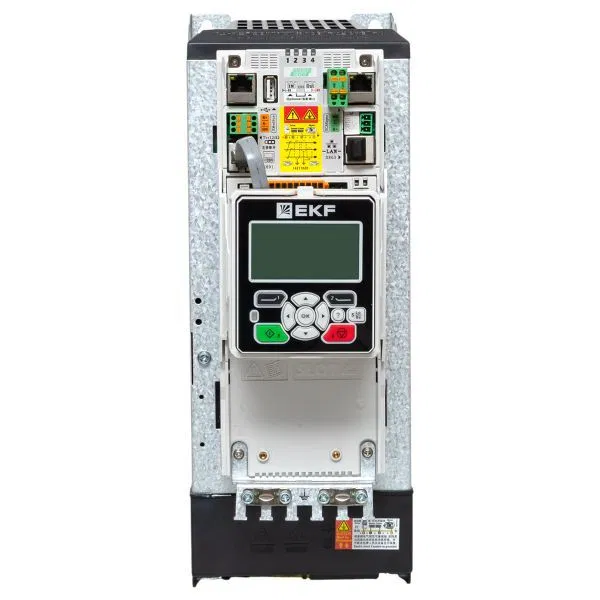

PRO-Drive 500 EKF frequency converter (hereinafter referred to as the converter) is designed to control the rotation speed of electric motors used in a wide range of industrial equipment. The converter ensures precise maintenance of the rotation speed or torque on the motor shaft depending on external factors. Converters comply with the requirements of GOST IEC 61800-5-1, GOST IEC 61800-3.
Height
400 мм
Height
400 мм
Output power at rated output voltage
22 кВт
Depth
270 мм
Permitted for use in industrial areas
Yes

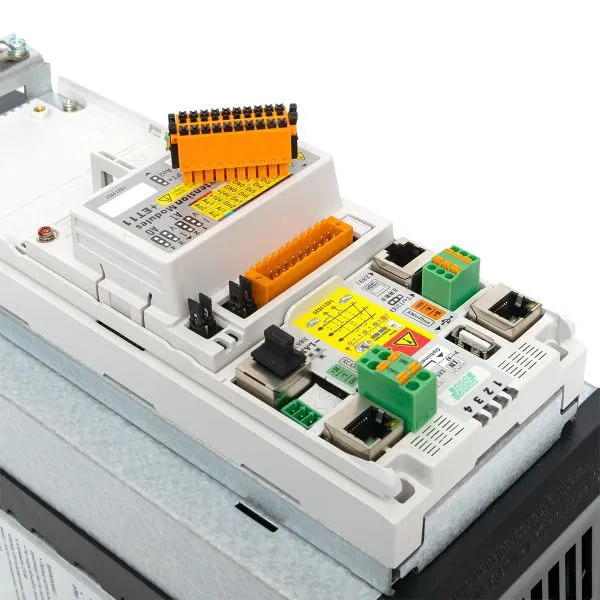

Number of HW PROFINET interfaces
1
Number of HW USB interfaces
1
Number of HW serial RS-485 interfaces
1
Number of analog inputs
3 шт.
Number of analogue outputs
2 шт.
Number of input phases
3
Number of output phases
3
Number of digital inputs
6 шт.
Number of digital outputs
5 шт.
Maximum output power at linear load at rated output voltage
22 кВт
Maximum output frequency
500 Гц
Maximum output voltage
400 В
Mains voltage to
490 В
Mains voltage from
360...490 В
MODBUS protocol support
Yes
PROFIBUS protocol support
Yes
TCP/IP protocol support
Yes

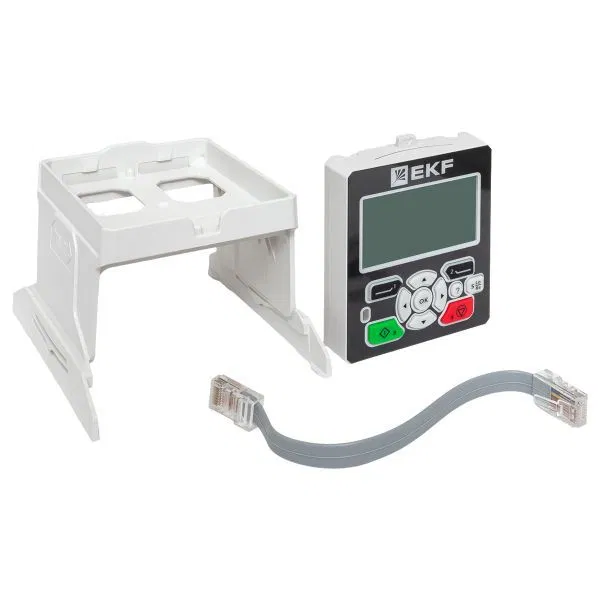

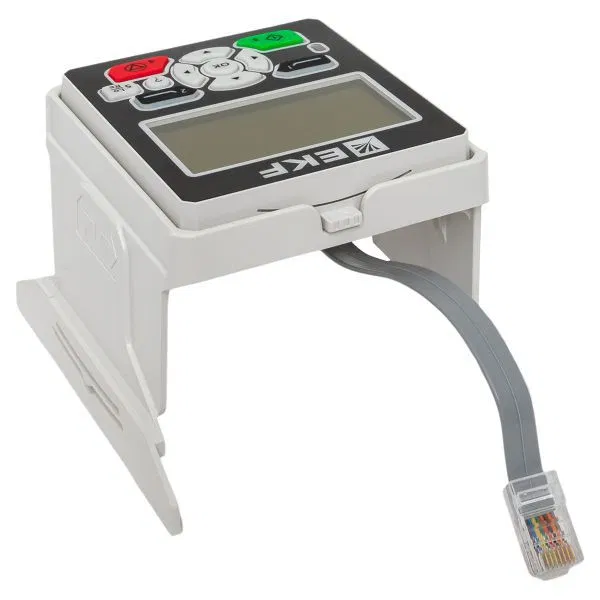

With control unit
Yes
With built-in braking resistors
No
With PC connection
Yes
IP protection rating
IP20
AC frequency converter type
Direct converter
Mains frequency
50/60 Hz
Width
145 мм
