Systeme Electric
Frequency converter STV630 315kW 400V EMC C3 + built-in DC reactor + LCD operator panel SE STV630C31N4L1 Systeme Electric
SKU: STV630C31N4L1
ETIM: EC001857
1,684,515 ₽
Get back 16,845 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications

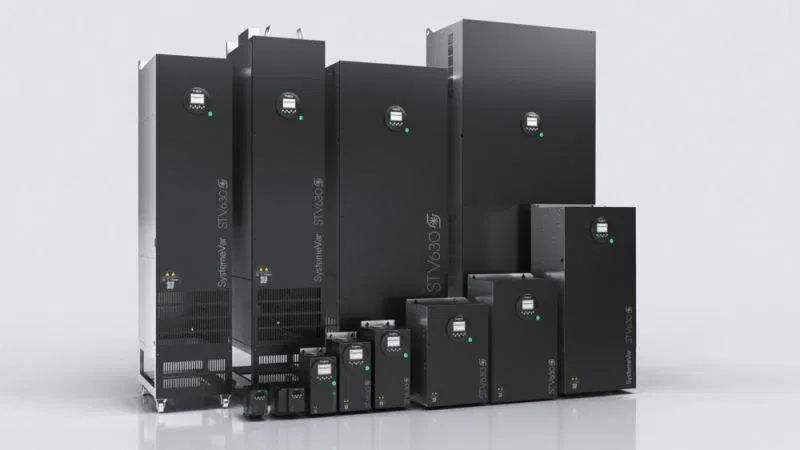

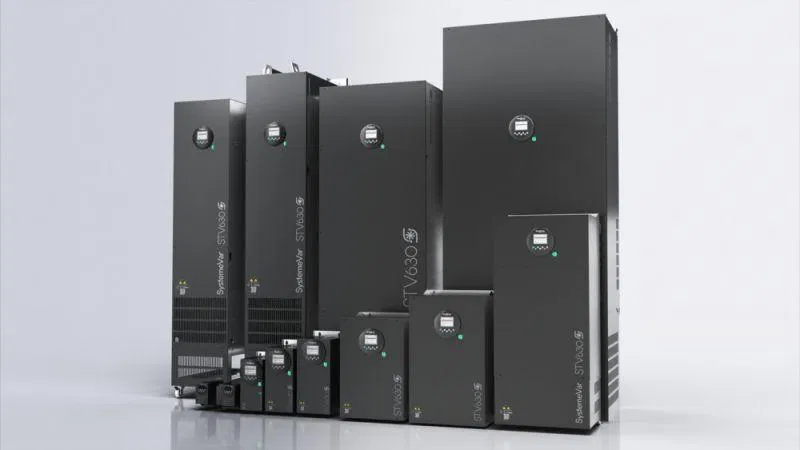

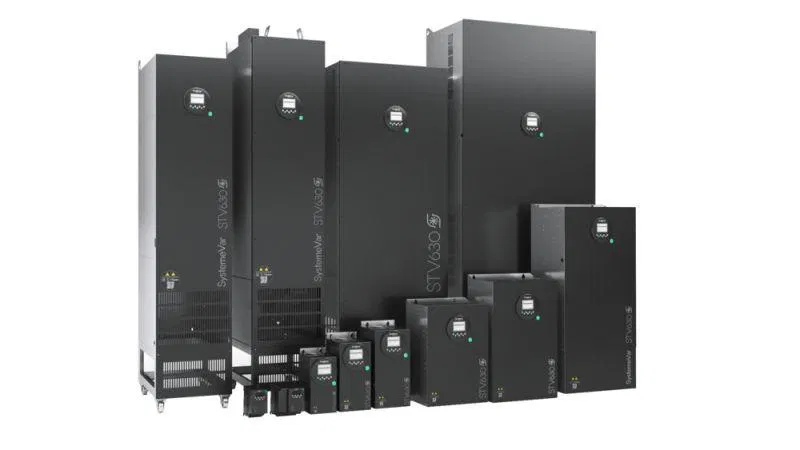

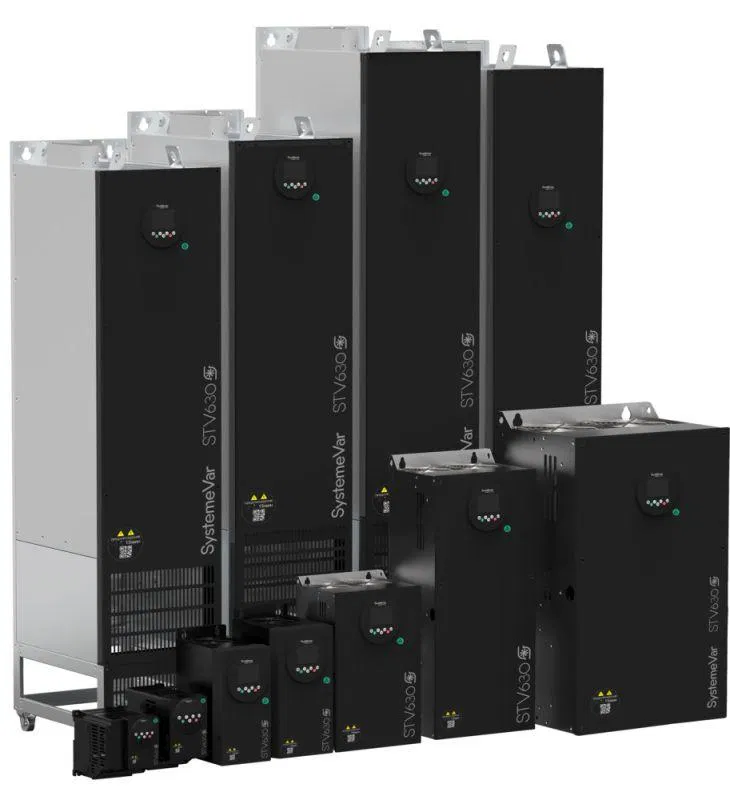

SystemeVar STV630 frequency converter for pump and fan applications. Rated characteristics: Un = 3Ph 380V; Pn = 315 kW; In = 585 A. LCD operator panel. With built-in DC reactor. Built-in EMC filter class C3. Built-in Modbus RTU. Number of I/O: 6DI, 2AI, 1DO, 2RO, 2AO, 1PTC. IP20 protection degree. One expansion card slot. With built-in status LED. 3C3 class PCB coating. Frame size D3. WxHxD (mm): 325x555x1495. Weight: 163 kg.
Height
555 мм
Output power at rated output voltage
315 кВт
Depth
1495 мм
Number of HW serial RS-485 interfaces
1
Number of analog inputs
2 шт.
Number of analogue outputs
2 шт.
Number of input phases
3
Number of output phases
3
Number of digital inputs
6 шт.
Number of digital outputs
1 шт.
Maximum output power at linear load at rated output voltage
315 кВт
Maximum output frequency
599 Гц
Maximum output voltage
440 В
Mains voltage to
480 В
Mains voltage from
380 В
Rated output current
585 А
MODBUS protocol support
Yes
With control unit
Yes
With PC connection
Yes
IP protection rating
IP20
AC frequency converter type
Converter in voltage source mode
Mains frequency
50/60 Hz
Width
325 мм
