Systeme Electric

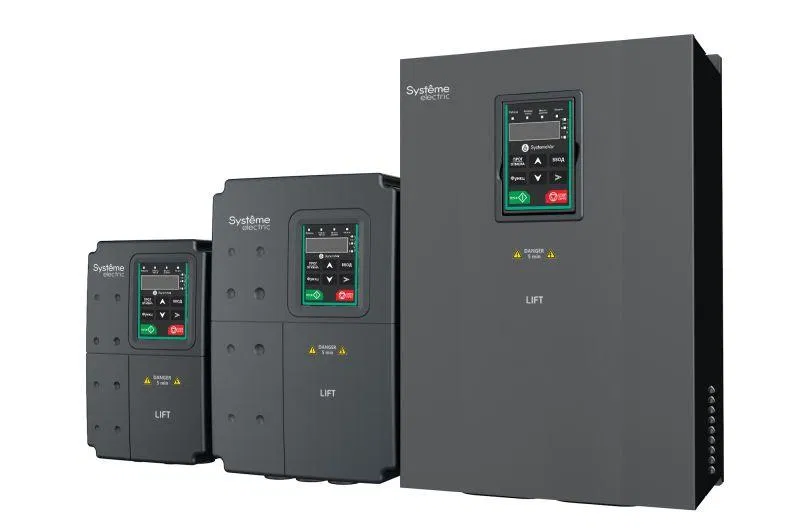

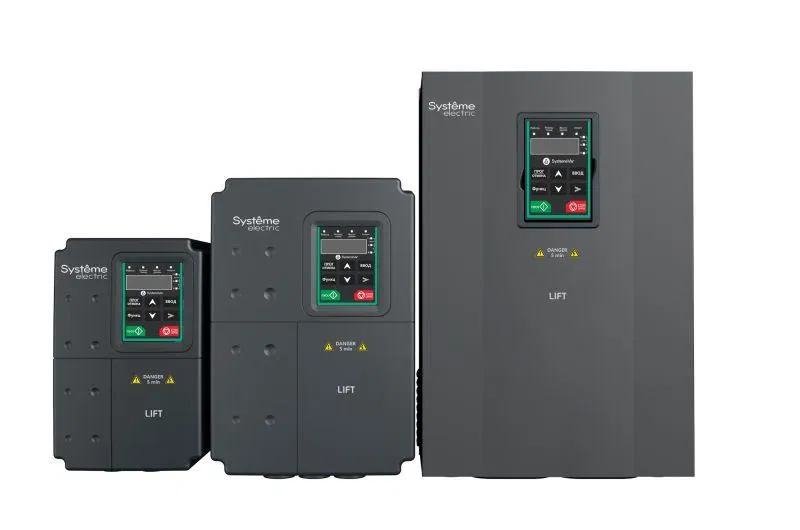

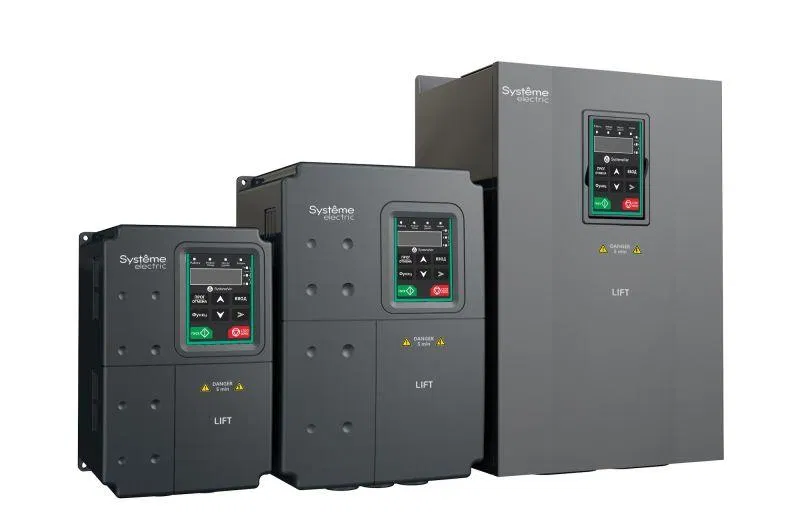

Frequency converter STV900L 18kW 400V lift SE STV900D18N4L Systeme Electric
SKU: STV900D18N4L
ETIM: EC001857
151,067 ₽
Get back 1,510 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
No description available
Four-quadrant operation possible
Yes
Height
470 мм
Output power at rated output voltage
18.5 кВт
Depth
220 мм
Number of HW serial RS-485 interfaces
1
Number of analog inputs
2 шт.
Number of analogue outputs
1 шт.
Number of input phases
3
Number of output phases
3
Number of digital inputs
6 шт.
Number of digital outputs
2 шт.
Maximum output power at linear load at rated output voltage
18.5 кВт
Maximum output frequency
400 Гц
Maximum output voltage
440 В
Mains voltage to
400 В
Mains voltage from
400 В
Rated output voltage
400 В
Rated output current
38 А
Relative symmetrical permissible mains frequency deviation
.05 %
Relative symmetrical permissible mains voltage limit
.1 %
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET IO protocol support
No
Protocol support for other system buses
No
With control unit
Yes
With optical interface
No
With PC connection
No
IP protection rating
IP20
AC frequency converter type
Converter in voltage source mode
Mains frequency
50/60 Hz
Width
290 мм
