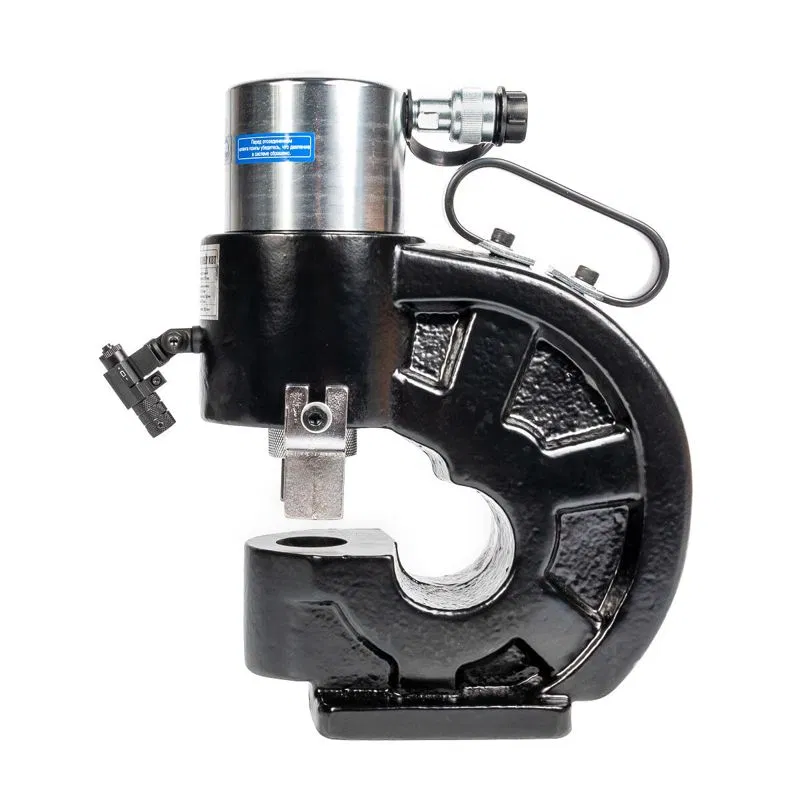

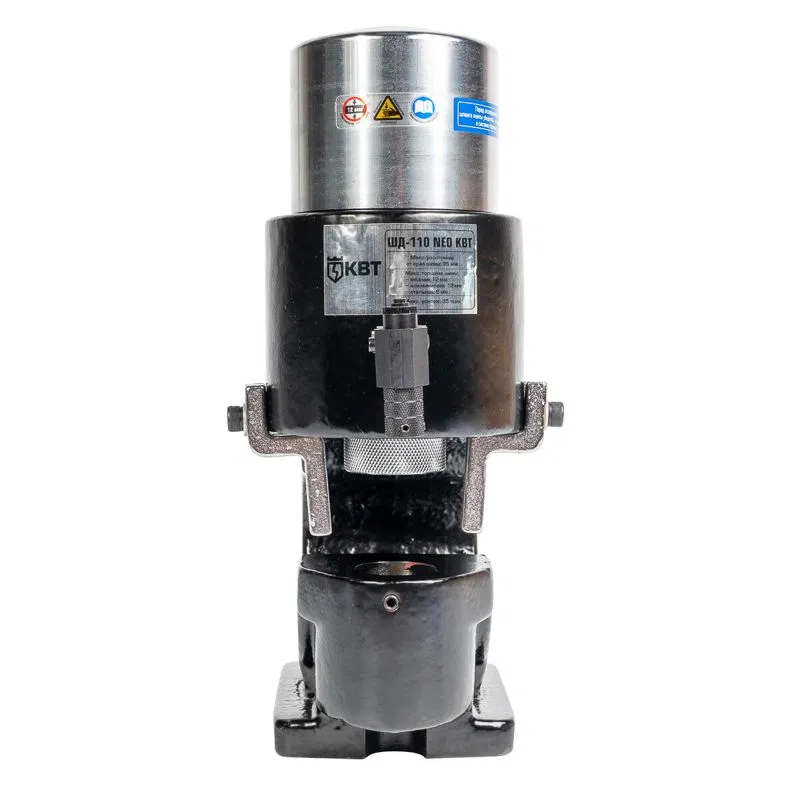

Hydraulic press for busbar punching ShD-110 NEO series 67051 KVT

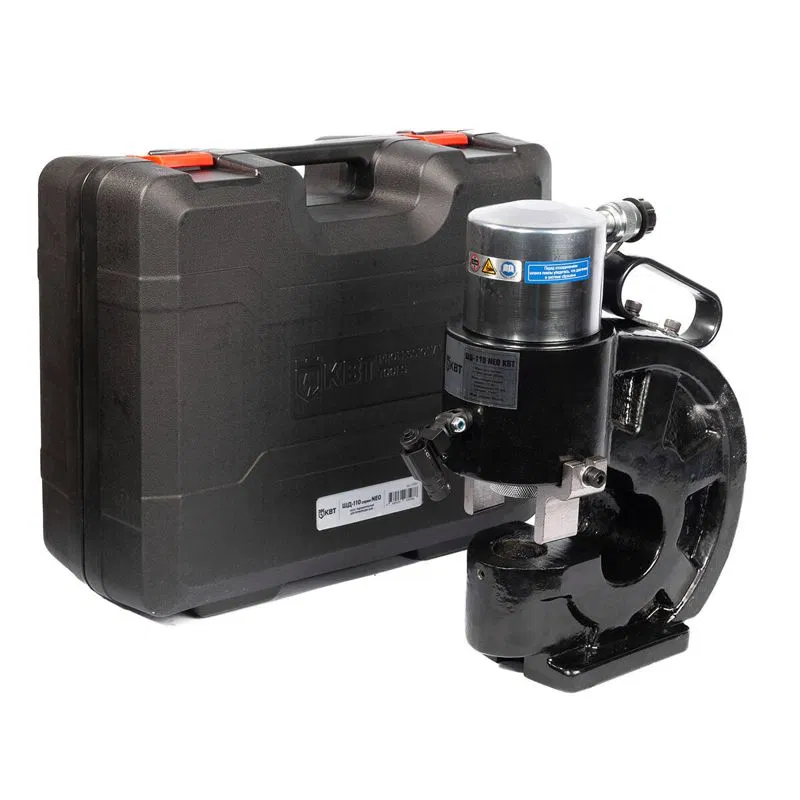

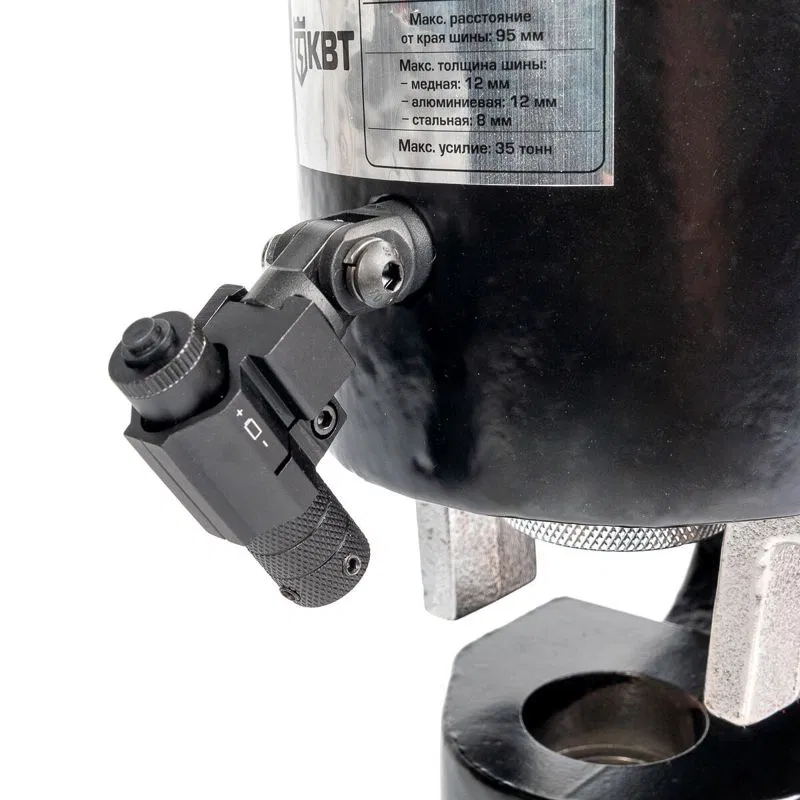

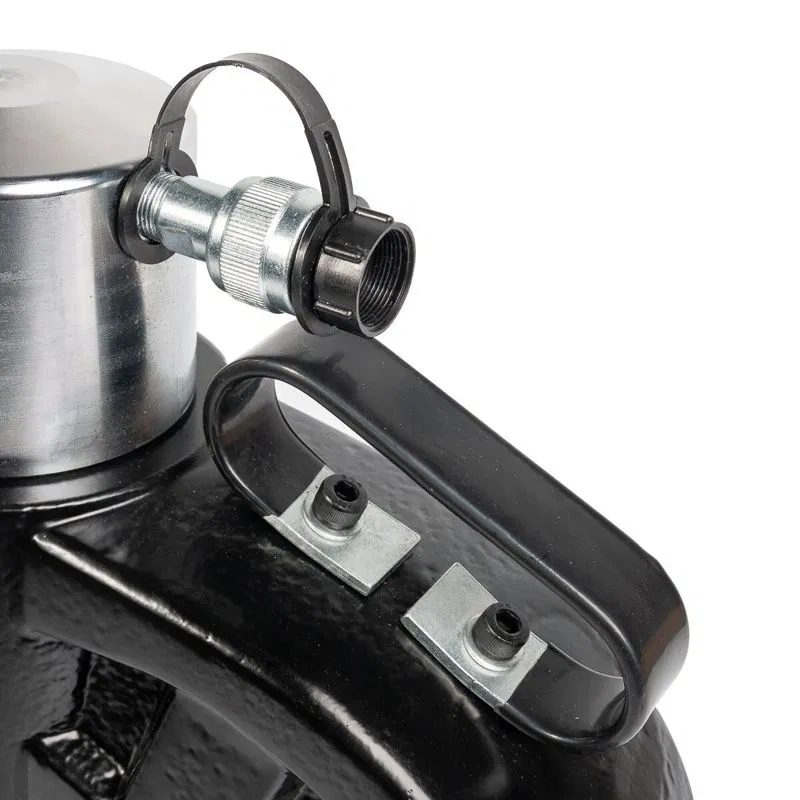

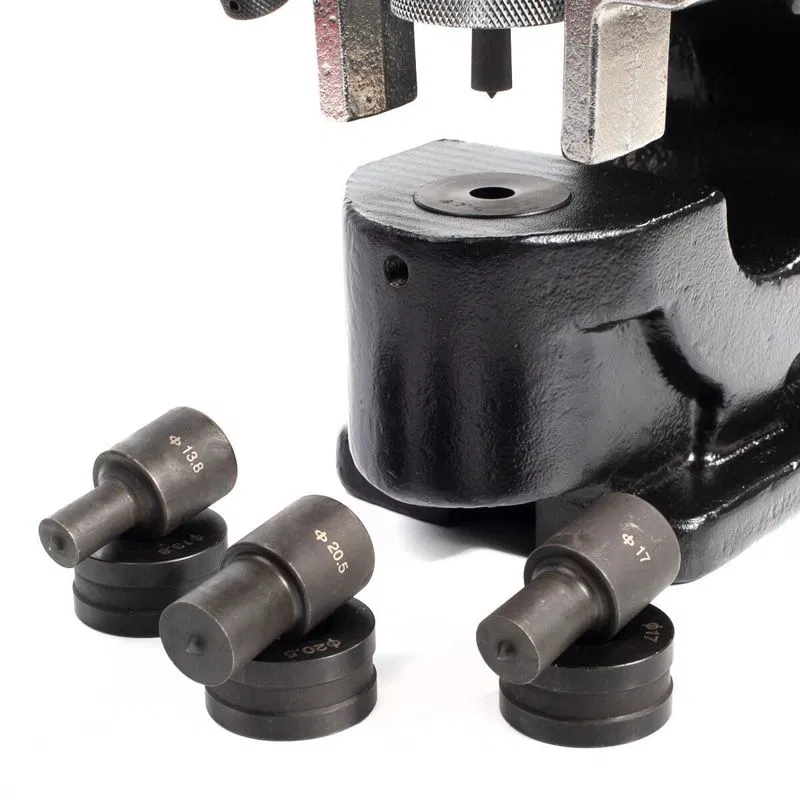

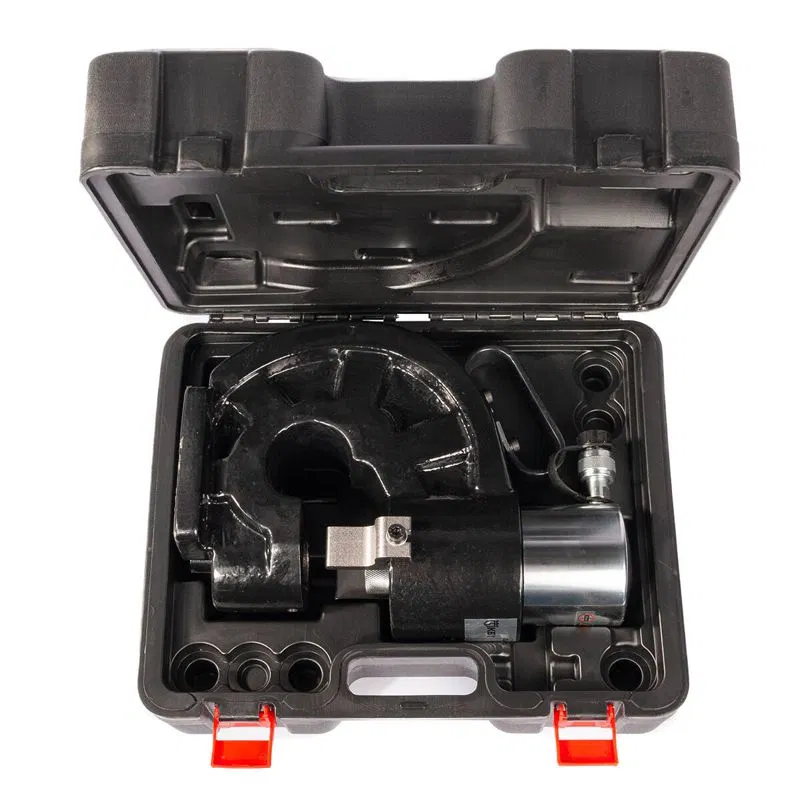

• In the kit: • hydraulic press ШД-110 NEO • Allen key • laser pointer and 9 AG13 batteries • O-ring repair kit • Hole diameter (mm): • round: 6.5/8.5/10.5/13.0/17.0/21.0 • oval: 6.5x10/8.5x13/10.5x17/13x20/17x22 • Material thickness: • copper/aluminum busbar: up to 12 mm • steel sheet: up to 8 mm • Maximum force: 35 t • Connection thread: K 3/8" "socket" • Maximum distance from the edge of the busbar to the center of the hole: 95 mm • No pilot hole drilling required • Ability for stationary mounting of the press to a workbench • Tool weight: 35.30 kg • Case dimensions: 440x210x380 mm • Compatibility: any "КВТ" hydraulic pumps with a working fluid volume of at least 0.60 L
