EKF
Programmable controller F100 12 V/V PRO-Logic EKF (without calibration) F100-12A-R
SKU: F100-12A-R
ETIM: EC000236
17,735 ₽
Analogues by specifications
Stock by warehouse
Devices designed to perform logic operations according to a given program. Capable of solving tasks of any complexity level. Used to increase energy efficiency, safety, and digitalization of enterprises in all fields of activity.
AC voltage at "Relay" digital output from
0...250 В
DC voltage at digital input from
20.4...28.8 В
DC voltage on digital output "Relay" from
0...30 В
SIL in accordance with IEC 61508
2
Analogue input 0-1 V
No
Analogue input 0-10 V
Yes
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
Yes
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
Yes
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
No
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Analogue output 0(4)-20 mA
Yes
Analogue output 0-10 V
Yes
Weight
0.23 кг
Rack mounting possible
No
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Front mounting possible
No
Program memory expansion possible
No
Processing time (1K, binary instruction)
0.05 мс
Height
95 мм
Depth
79 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Design
Modular
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of "fast" digital inputs (of total)
0
Number of "fast" digital outputs (of total)
0
Number of HW wireless interfaces
0
Number of HW PROFINET interfaces
0
Number of HW USB interfaces
0
Number of industrial Ethernet HW interfaces
1
Number of HW parallel interfaces
0
Number of HW serial RS-232 interfaces
1
Number of HW serial RS-422 interfaces
0
Number of HW serial RS-485 interfaces
1
Number of HW serial TTY interfaces
0
Number of analog inputs
2 шт.
Number of analogue outputs
2 шт.
Number of 0(4)-20 mA analogue outputs
4
Number of 0-10V analog outputs
4
Number of other HW hardware interfaces
0
Number of relay outputs
4
Number of digital inputs
4 шт.
Number of digital outputs
4 шт.
Number of digital outputs "Relay"
4
Number of "Triac" digital outputs
0
Number of digital outputs "Transistor"
0
Number of digital outputs "External SSR control"
0
Component, system accessory
No
Maximum number of timers
1 024
Maximum power consumption
4.8 Вт
Maximum number of addressable analogue inputs/outputs
2
Maximum number of addressable digital inputs/outputs
4
Analogue output 0(4)-20 mA supply voltage from
20.4...28.8 В
Analog output 0-10V supply voltage from
20.4...28.8 В
DC supply voltage to
28.8 В
DC supply voltage from
20.4...28.8 В
Memory capacity
27.53 Кб
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
Yes
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
Yes
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
Suitable for security systems
No
Operating temperature
55 град.C
Operating temperature from
0...55 град.C
Bluetooth radio standard
No
GPRS radio standard
No
GSM radio standard
No
UMTS radio standard
No
WLAN 802.11 radio standard
No
Supply voltage current type
DC (direct)
With display
No
With optical interface
No
Certified per IEC 61508
No (without)
SD memory card slot
No
With audible indication
No
IO-Link standard
Yes
Ingress protection (IP) of front side
IP20
Resistance to overloads
No
Processor clock frequency
2 МГц
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
Yes
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
Yes
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
Yes
Resistance thermometer Pt1000
Yes
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
Yes
Thermocouple type J
Yes
Thermocouple type K
Yes
Thermocouple type L
No
Thermocouple type n
Yes
Thermocouple type r
Yes
Thermocouple type S
Yes
Type T thermocouple
No
Memory type
Other
Current at "Relay" digital output from
0...5 А
Performance level per EN ISO 13849-1
Level c
Digital input "220V"
No
Digital input "24V"
Yes
Digital input "NPN"
Yes
Digital input "PNP"
Yes
Digital input "SK"
No
Conductometric digital input
No
Digital output "Relay"
Yes
Digital output "Triac"
No
Digital output "Transistor"
No
Digital output "External SSR control"
No
Real-time clock (RTC)
Yes
Width
40 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
22619 ₽
ONI (Группа IEK) PLC 410 CPU Module 14 DI 8 RO 220V AC with Ethernet port and screen ONI PLC-410-CPU-14D08R-1AC-00
SKU: PLC-410-CPU-14D08R-1AC-00
55432 ₽

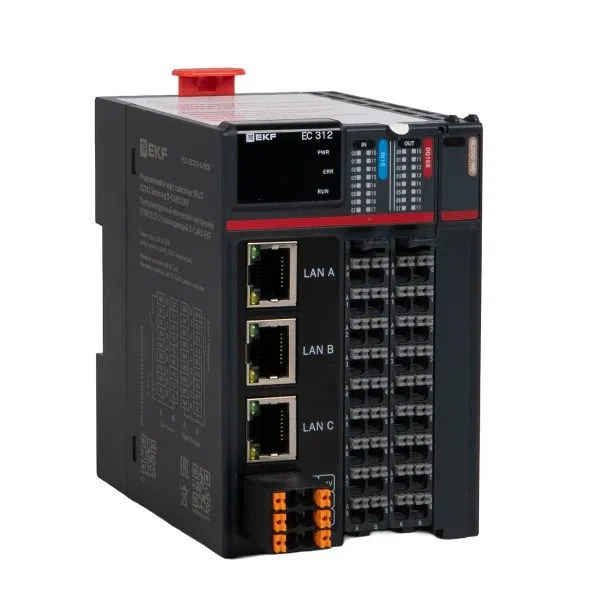

EKF Programmable logic controller (PLC) EC312 sourcing D-CARD EKF PLC-EC312-S-DCD
