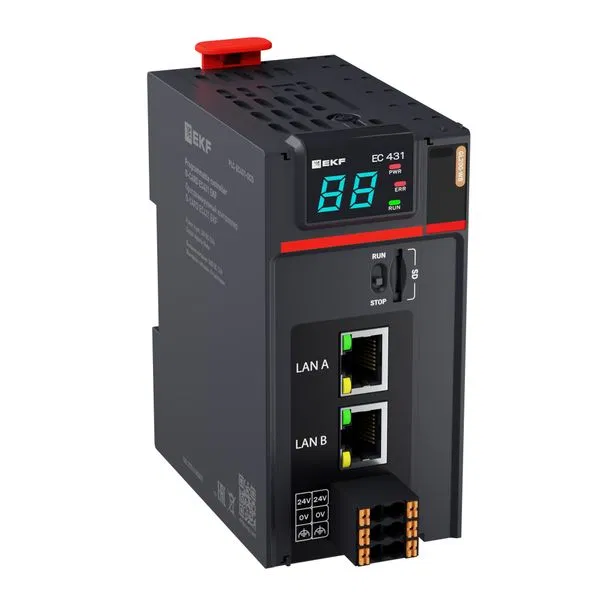

EKF
SKU: PLC-EC431-DCD
ETIM: EC000236
227733 ₽
Price list (incl. VAT):
427000 ₽
Preorder
Order multiple: 30 шт
No description available
| DC voltage at digital input from | 19.2...33 В |
| SIL in accordance with IEC 61508 | 3 |
| Analogue input 0-1 V | No |
| Analogue input 0-10 V | No |
| Analogue input 0-2 kOhm | No |
| Analog input 0-20 mA | No |
| Analogue input 0-4 kOhm | No |
| Analogue input 0-5 kOhm | No |
| Analogue input 0-5 mA | No |
| Analogue input 4-20 mA | No |
| Analog input ±1V | No |
| Analogue input ±50 mV | No |
| Analog input active resistance 25-2000 Ω | No |
| Analogue input resistance 25-5000 Ohm | No |
| Analogue input ohmic resistance 25-900 Ohm | No |
| Analog input, thermocouple tP.tL | No |
| Analogue output 0(4)-20 mA | No |
| Analogue output 0-10 V | No |
| Per IEC 1131-3 (DIN EN 61131-3) | Yes |
| Weight | 0.194 кг |
| Rack mounting possible | Yes |
| Wall/surface mounting possible | No |
| Busbar mounting possible | Yes |
| Front mounting possible | No |
| Program memory expansion possible | Yes |
| Processing time (1K, binary instruction) | 0.002 мс |
| Height | 120 мм |
| Built-in power supply output voltage | 5 В |
| Depth | 100.5 мм |
| Additional equipment (Ex ia) | No |
| Additional equipment (Ex ib) | No |
| Design | Modular |
| Category per EN 954-1 | 3 |
| Gas explosion protection category (EU ATEX directives) | No (without) |
| Dust explosion protection category (EU ATEX Directive) | No (without) |
| Number of "fast" digital inputs (of total) | 0 |
| Number of "fast" digital outputs (of total) | 0 |
| Number of HW wireless interfaces | 0 |
| Number of HW PROFINET interfaces | 2 |
| Number of HW USB interfaces | 1 |
| Number of industrial Ethernet HW interfaces | 2 |
| Number of HW parallel interfaces | 0 |
| Number of HW serial RS-232 interfaces | 0 |
| Number of HW serial RS-422 interfaces | 0 |
| Number of HW serial RS-485 interfaces | 0 |
| Number of HW serial TTY interfaces | 0 |
| Number of analog inputs | 0 шт. |
| Number of analogue outputs | 0 шт. |
| Number of 0(4)-20 mA analogue outputs | 0 |
| Number of 0-10V analog outputs | 0 |
| Number of other HW hardware interfaces | 0 |
| Number of relay outputs | 0 |
| Number of digital inputs | 0 шт. |
| Number of digital outputs | 0 шт. |
| Number of digital outputs "Relay" | 0 |
| Number of "Triac" digital outputs | 0 |
| Number of digital outputs "Transistor" | 0 |
| Number of digital outputs "External SSR control" | 0 |
| Component, system accessory | No |
| Maximum power consumption | 10 Вт |
| Maximum number of addressable analogue inputs/outputs | 0 |
| Maximum number of addressable digital inputs/outputs | 0 |
| DC supply voltage to | 33 В |
| DC supply voltage from | 19.2...33 В |
| Memory capacity | 256 000 Кб |
| RAM | 512 Гб |
| AS-Interface Safety at Work protocol support | No |
| ASI protocol support | Yes |
| CAN protocol support | Yes |
| Data Highway protocol support | No |
| DeviceNet protocol support | Yes |
| DeviceNet Safety protocol support | No |
| Ethernet / IP protocol support | Yes |
| Foundation Fieldbus protocol support | No |
| INTERBUS protocol support | No |
| KNX protocol support | No |
| LON protocol support | No |
| MODBUS protocol support | Yes |
| PROFIBUS protocol support | No |
| PROFINET CBA protocol support | No |
| PROFINET IO protocol support | Yes |
| PROFIsafe protocol support | No |
| SUCONET protocol support | No |
| SafetyBUS p protocol support | No |
| TCP/IP protocol support | Yes |
| Protocol support for INTERBUS Safety | No |
| SERCOS protocol support | No |
| Protocol support for other system buses | Yes |
| Suitable for security systems | Yes |
| Operating temperature | 55 град.C |
| Operating temperature from | -20...55 град.C |
| Bluetooth radio standard | No |
| GPRS radio standard | No |
| GSM radio standard | No |
| UMTS radio standard | No |
| WLAN 802.11 radio standard | No |
| Supply voltage current type | DC (direct) |
| With display | Yes |
| With optical interface | No |
| Certified per IEC 61508 | No (without) |
| SD memory card slot | Yes |
| With audible indication | No |
| IO-Link standard | Yes |
| Ingress protection (IP) of front side | IP20 |
| Resistance to overloads | Yes |
| Processor clock frequency | 1 500 МГц |
| Resistance thermometer 1000H | No |
| 1000M resistance thermometer | No |
| 1000P resistance thermometer | No |
| Resistance thermometer 100H | No |
| Resistance thermometer 100M | No |
| Resistance thermometer 100P | No |
| 500H resistance thermometer | No |
| Resistance thermometer 500M | No |
| 500P resistance thermometer | No |
| 50M resistance thermometer | No |
| 50P resistance thermometer | No |
| Resistance thermometer Cu100 | No |
| Cu1000 resistance thermometer | No |
| Cu50 resistance thermometer | No |
| Resistance thermometer Cu500 | No |
| Ni100 resistance thermometer | No |
| Ni1000 resistance thermometer | No |
| Ni500 resistance thermometer | No |
| Pt100 resistance thermometer | Yes |
| Resistance thermometer Pt1000 | Yes |
| Pt50 resistance thermometer | No |
| Pt500 resistance thermometer | No |
| TSM gr.23 resistance thermometer | No |
| Thermocouple type TVR (A-1) | No |
| Thermocouple type TVR (A-2) | No |
| Thermocouple type TVR (A-3) | No |
| Type B thermocouple | Yes |
| Thermocouple type J | Yes |
| Thermocouple type K | Yes |
| Thermocouple type L | No |
| Thermocouple type n | Yes |
| Thermocouple type r | Yes |
| Thermocouple type S | Yes |
| Type T thermocouple | Yes |
| Memory type | Other |
| Performance level per EN ISO 13849-1 | Level d |
| Digital input "220V" | No |
| Digital input "24V" | No |
| Digital input "NPN" | No |
| Digital input "PNP" | No |
| Digital input "SK" | No |
| Conductometric digital input | No |
| Digital output "Relay" | No |
| Digital output "Triac" | No |
| Digital output "Transistor" | No |
| Digital output "External SSR control" | No |
| Real-time clock (RTC) | Yes |
| Width | 59.2 мм |
| Non-volatile memory (FLASH) | 4 Мб |
