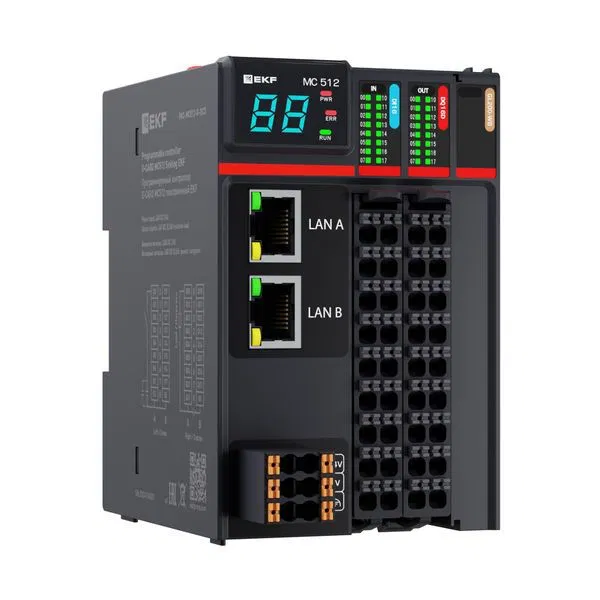

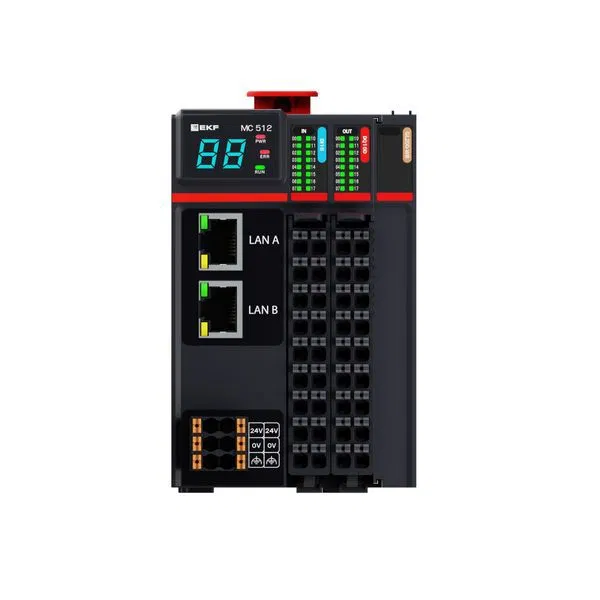

Programmable Logic Controller (PLC) MC512 current collector D-CARD EKF PAC-MC512-D-DCD
SKU: PAC-MC512-D-DCD
ETIM: EC000236
40,000 ₽
Get back 400 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
DC voltage at digital input from
19.2...33 В
DC voltage at digital output "Transistor" from
0...26.4 В
SIL in accordance with IEC 61508
2
Analogue input 0-1 V
No
Analogue input 0-10 V
No
Analogue input 0-2 kOhm
No
Analog input 0-20 mA
No
Analogue input 0-4 kOhm
No
Analogue input 0-5 kOhm
No
Analogue input 0-5 mA
No
Analogue input 4-20 mA
No
Analog input ±1V
No
Analogue input ±50 mV
No
Analog input active resistance 25-2000 Ω
No
Analogue input resistance 25-5000 Ohm
No
Analogue input ohmic resistance 25-900 Ohm
No
Analog input, thermocouple tP.tL
No
Analogue output 0(4)-20 mA
No
Analogue output 0-10 V
No
Per IEC 1131-3 (DIN EN 61131-3)
Yes
Weight
0.256 кг
Rack mounting possible
Yes
Wall/surface mounting possible
No
Busbar mounting possible
Yes
Front mounting possible
No
Program memory expansion possible
Yes
Processing time (1K, binary instruction)
0.004 мс
Height
120 мм
Built-in power supply output voltage
5 В
Depth
100.5 мм
Additional equipment (Ex ia)
No
Additional equipment (Ex ib)
No
Design
Modular
Category per EN 954-1
2
Gas explosion protection category (EU ATEX directives)
No (without)
Dust explosion protection category (EU ATEX Directive)
No (without)
Number of "fast" digital inputs (of total)
16
Number of "fast" digital outputs (of total)
16
Number of HW wireless interfaces
0
Number of HW PROFINET interfaces
1
Number of HW USB interfaces
1
Number of industrial Ethernet HW interfaces
2
Number of HW parallel interfaces
0
Number of HW serial RS-232 interfaces
1
Number of HW serial RS-422 interfaces
0
Number of HW serial RS-485 interfaces
2
Number of HW serial TTY interfaces
0
Number of analog inputs
0 шт.
Number of analogue outputs
0 шт.
Number of 0(4)-20 mA analogue outputs
0
Number of 0-10V analog outputs
0
Number of other HW hardware interfaces
0
Number of relay outputs
0
Number of digital inputs
16 шт.
Number of digital outputs
16 шт.
Number of digital outputs "Relay"
0
Number of "Triac" digital outputs
0
Number of digital outputs "Transistor"
16
Number of digital outputs "External SSR control"
0
Component, system accessory
No
Maximum power consumption
10 Вт
Maximum number of addressable analogue inputs/outputs
0
Maximum number of addressable digital inputs/outputs
16
DC supply voltage to
33 В
DC supply voltage from
19.2...33 В
Memory capacity
16 000 Кб
RAM
48 Гб
AS-Interface Safety at Work protocol support
No
ASI protocol support
Yes
CAN protocol support
Yes
Data Highway protocol support
No
DeviceNet protocol support
Yes
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
Yes
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
KNX protocol support
No
LON protocol support
No
MODBUS protocol support
Yes
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
Yes
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
Yes
Protocol support for INTERBUS Safety
No
SERCOS protocol support
Yes
Protocol support for other system buses
Yes
Suitable for security systems
No
Operating temperature
55 град.C
Operating temperature from
-20...55 град.C
Bluetooth radio standard
No
GPRS radio standard
No
GSM radio standard
No
UMTS radio standard
No
WLAN 802.11 radio standard
No
Supply voltage current type
DC (direct)
With display
Yes
With optical interface
No
Certified per IEC 61508
No (without)
SD memory card slot
Yes
With audible indication
No
IO-Link standard
Yes
Ingress protection (IP) of front side
IP20
Resistance to overloads
Yes
Processor clock frequency
1 200 МГц
Resistance thermometer 1000H
No
1000M resistance thermometer
No
1000P resistance thermometer
No
Resistance thermometer 100H
No
Resistance thermometer 100M
No
Resistance thermometer 100P
No
500H resistance thermometer
No
Resistance thermometer 500M
No
500P resistance thermometer
No
50M resistance thermometer
No
50P resistance thermometer
No
Resistance thermometer Cu100
No
Cu1000 resistance thermometer
No
Cu50 resistance thermometer
No
Resistance thermometer Cu500
No
Ni100 resistance thermometer
No
Ni1000 resistance thermometer
No
Ni500 resistance thermometer
No
Pt100 resistance thermometer
Yes
Resistance thermometer Pt1000
Yes
Pt50 resistance thermometer
No
Pt500 resistance thermometer
No
TSM gr.23 resistance thermometer
No
Thermocouple type TVR (A-1)
No
Thermocouple type TVR (A-2)
No
Thermocouple type TVR (A-3)
No
Type B thermocouple
Yes
Thermocouple type J
Yes
Thermocouple type K
Yes
Thermocouple type L
No
Thermocouple type n
Yes
Thermocouple type r
Yes
Thermocouple type S
Yes
Type T thermocouple
Yes
Memory type
Other
Current at digital output "Transistor" from
0...0.5 А
Performance level per EN ISO 13849-1
Level c
Digital input "220V"
No
Digital input "24V"
Yes
Digital input "NPN"
Yes
Digital input "PNP"
Yes
Digital input "SK"
No
Conductometric digital input
No
Digital output "Relay"
No
Digital output "Triac"
No
Digital output "Transistor"
Yes
Digital output "External SSR control"
No
Real-time clock (RTC)
Yes
Width
59.2 мм
Non-volatile memory (FLASH)
1 Мб
