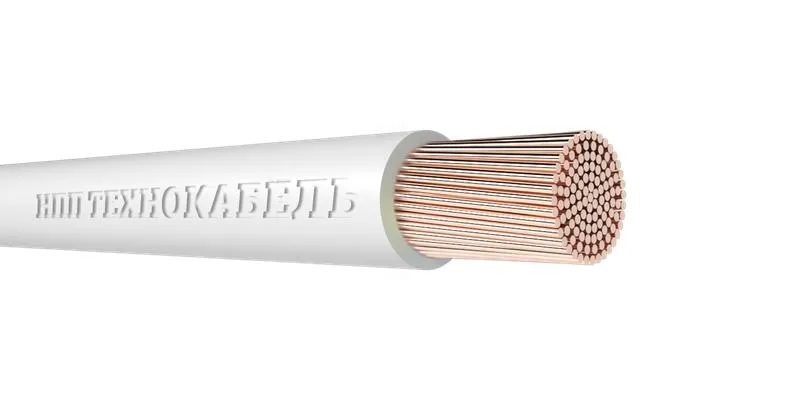

Wire PuGPng(A)-HF 1x4 450/750V white (coil) (m) Tekhnokabel 00-00149533
SKU: 00-00149533
ETIM: EC000993
73 ₽
Price list (incl. VAT):
73 ₽
Available August 7
Availability
| Warehouse | Qty | Unit | Ready for pickup | Delivery to Smolensk | |
|---|---|---|---|---|---|
|
Transit warehouse
Available
|
1267 | м | August 7 | clarifying |
Select a warehouse to order
Single-core wire with a copper conductor, made of non-flammable plastic, with insulation made of halogen-free polymer compounds.
Wires are intended for electrical installations
for stationary installation in lighting and power networks, as well as for the installation of electrical equipment,
machines, mechanisms, and machine tools, internal electrical installations, where frequent bending is possible. Used during the installation of switchboards and similar equipment, during repair work
on various machinery and equipment, including automotive repair.
| Conductor diameter | 2.41 мм |
| Permissible operating temperature (no movement) to | 45 град.C |
| Permissible operating temperature (without movement) from | -15 град.C |
| Core insulation | Halogen-free polymer compound |
| Conductor class | 5 - flexible stranded |
| Cable/wire grade | PuGPng(A)-HF |
| Oil resistance in accordance with EN 60811-2-1 | No |
| Display present | No |
| Outer diameter (approx.) | 3.9 мм |
| Low smoke emission in accordance with EN 61034-2 (ng-LS version) | No |
| Rated voltage U | 450 кВ |
| Fire resistance | No |
| Recommended installation temperature during pulling, up to | 45 град.C |
| Recommended installation temperature during pulling from | -15 град.C |
| Core cross-section | 4 мм |
| Low temperature resistance in accordance with EN 60811-1-4 | No |
| Wire color | White |
