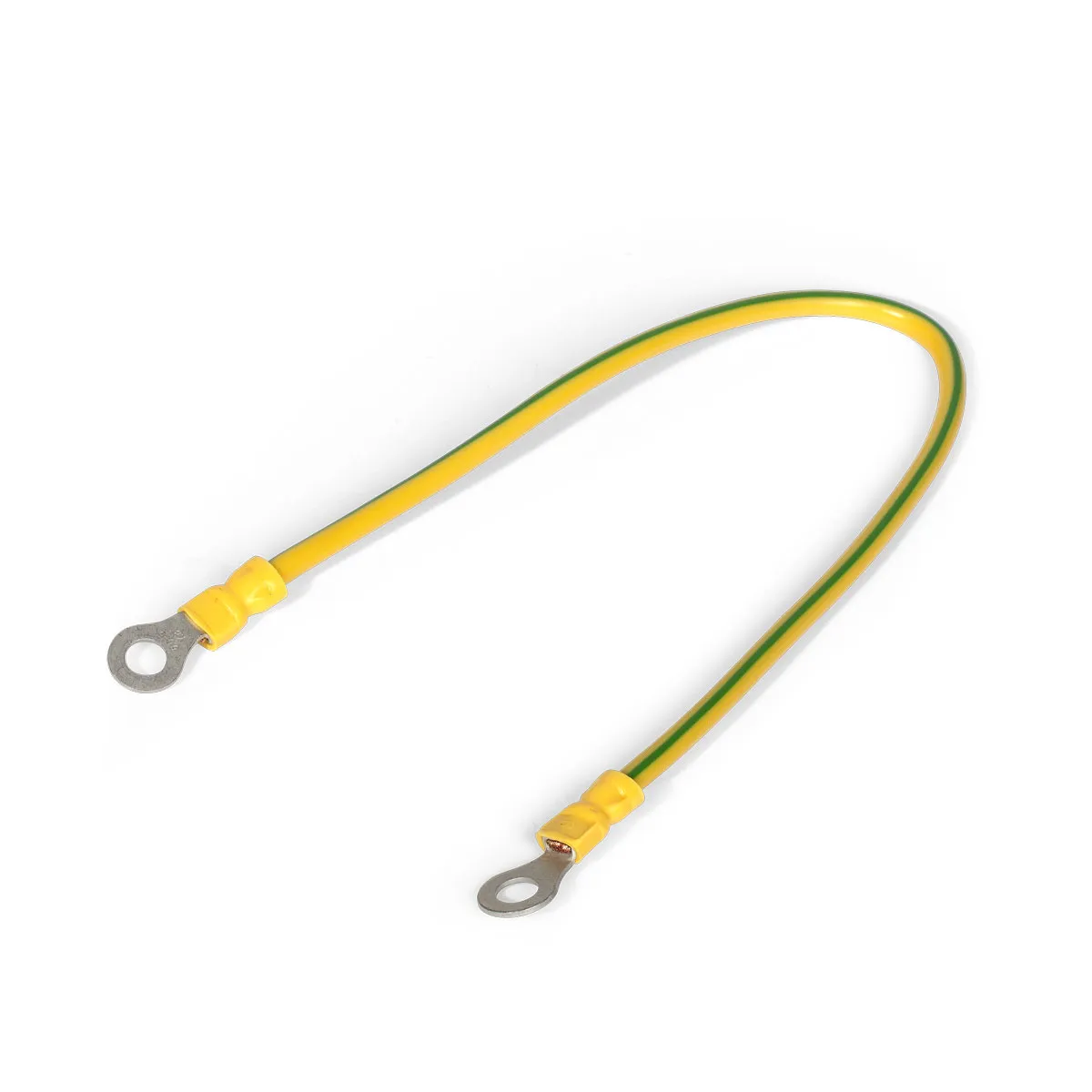

Earthing conductor PZU 10-200 80737 Fortisflex

• Designed for grounding metal structures, machine bodies, apparatus, and panels • Used in grounding or equipotential bonding systems • Wire and terminal material: M1 grade electrical copper • Terminal coating: electrolytic tinning • Wire brand: PuGV (PV-3) • Type of terminal used: • For 6 mm2 wire - NKI 6.0–6 • For 10 mm2 wire - TMLs 10–8 • For 16 mm2 wire - TMLs 16–8 • For 25 mm2 wire - TMLs 25–8 • For PZU-6, insulated ring terminals NKI (KVT) with a yellow PVC sleeve are used • For PZU-10, PZU-16, and PZU-25, yellow-green end heat-shrinkable sleeves seal, insulate, and protect the contact connection of the terminal and wire from corrosion • Custom execution of grounding conductors of non-standard length and with other holes for the contact rod in terminals is available upon request
