264 ₽
Get back 2 ₽ in points
Analogues by specifications
Stock by warehouse

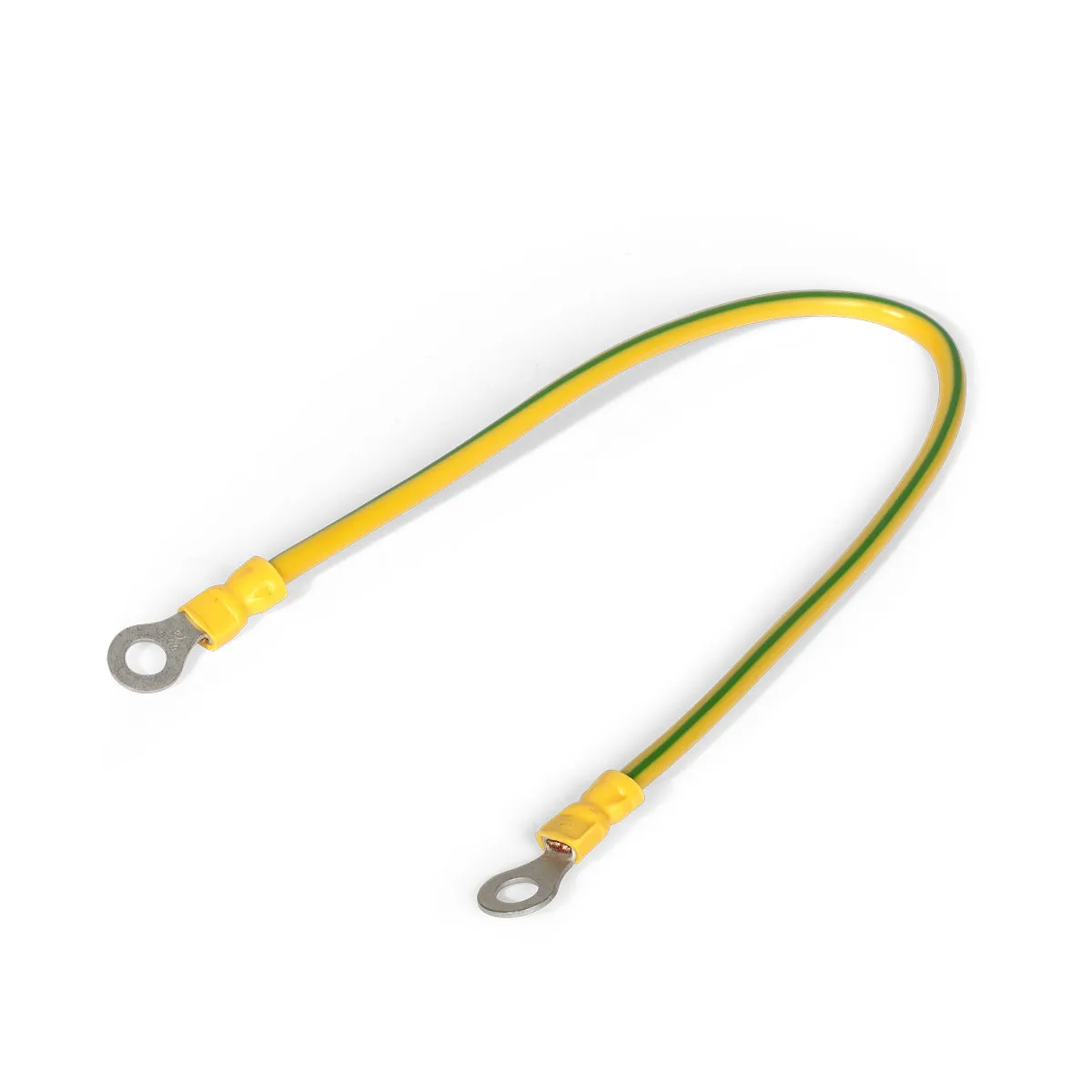

• Designed for grounding of metal structures, machine enclosures, apparatus, and panels
• Used in grounding or equipotential bonding systems
• Wire and terminal material: M1 grade electrotechnical copper
• Terminal coating: electrolytic tinning
• Wire brand: PuGV (PV-3)
• Type of terminal used:
• For 6 mm² wire - NKI 6.0–6
• For 10 mm² wire - TMLs 10–8
• For 16 mm² wire - TMLs 16–8
• For 25 mm² wire - TMLs 25–8
• For PZU-6, insulated ring terminals NKI (KVT) with a yellow PVC sleeve are used
• For PZU-10, PZU-16, and PZU-25, yellow-green end heat-shrinkable sleeves seal, insulate, and protect the terminal and wire contact connection from corrosion
• Custom execution of grounding conductors of non-standard lengths and with other holes for the contact rod in terminals is available upon request
Length
308 мм
Conductor material
Tinned copper
Rated conductor cross-section
6 кв.мм
Braid
No
