EKF

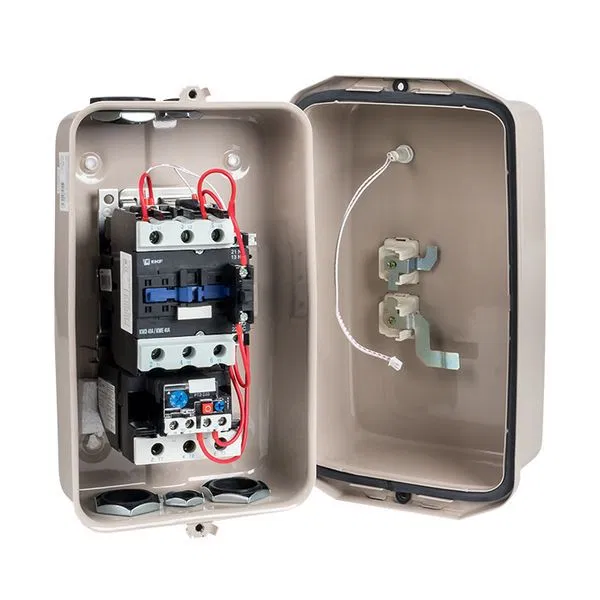

Magnetic starter PML-3230-40A-400V with thermal relay 30-40A in IP65 enclosure, with Start/Stop buttons, with indication ctrp-r-40-400v-led EKF
SKU: ctrp-r-40-400v-led
ETIM: EC001037
7015 ₽
Price list (incl. VAT):
13153 ₽
Preorder
Пускатель магнитный КМЭ EKF PROxima является комплектным устройством, состоящим из малогабаритного контактора КМЭ, теплового реле РТЭ, оболочки с сальниками и кнопок управления. Пускатели предназначены для дистанционного пуска непосредственным подключением к сети и остановки трехфазных асинхронных электродвигателей с короткозамкнутым ротором на напряжение переменного тока до 400 В, а также для защиты электродвигателей от перегрузок недопустимой продолжительности и сверхтоков, возникающих при обрыве одной из фаз. При применении контакторов КМЭ 0910 – КМЭ 3210 используется пластиковый корпус, контакторов КМЭ 4011 – КМЭ 9511 – металлическая оболочка.
| External restart possible | Yes |
| Busbar mounting possible | No |
| Height | 312 мм |
| Depth | 161 мм |
| Overload protection device setting range to | 40 А |
| Setting range of overload protection device from | 30 А |
| Release class | Class 10 |
| Coordination class per IEC 60947-4-3 | Class 2 |
| Number of auxiliary NO contacts | 1 |
| Number of auxiliary break contacts | 0 |
| Number of gangs | 6 |
| Maximum operating temperature | 40 град.C |
| Rated power at AC-3, 400 V | 18 кВт |
| Rated operational power at AC-3, 230 V, 3-phase | 18.5 кВт |
| Rated control supply voltage Us AC at 50 Hz up to | 440 В |
| Rated control supply voltage Us AC at 50 Hz from | 320 В |
| Rated control supply voltage Us DC up to | 0 В |
| Rated control supply voltage Us DC from | 0 В |
| Rated operational current Ie | 40 А |
| Rated current | 40 А |
| Rated conditional short-circuit current, type 2, 400 V | 3000 А |
| AS-Interface Safety at Work protocol support | No |
| ASI protocol support | No |
| CAN protocol support | No |
| Data Highway protocol support | No |
| DeviceNet protocol support | No |
| DeviceNet Safety protocol support | No |
| Ethernet / IP protocol support | No |
| Foundation Fieldbus protocol support | No |
| INTERBUS protocol support | No |
| LON protocol support | No |
| MODBUS protocol support | No |
| PROFIBUS protocol support | No |
| PROFINET CBA protocol support | No |
| PROFINET IO protocol support | No |
| PROFIsafe protocol support | No |
| SUCONET protocol support | No |
| SafetyBUS p protocol support | No |
| TCP/IP protocol support | No |
| Protocol support for INTERBUS Safety | No |
| SERCOS protocol support | No |
| Protocol support for other system buses | No |
| Suitable for emergency shutdown | Yes |
| Switch-on current type | Alternating current (AC) |
| With short-circuit protection | No |
| With fuse | No |
| With transformer | No |
| Ingress protection (NEMA) | 4X |
| IP protection rating | IP65 |
| Thermal overload relay | No |
| Main electrical circuit connection type | Screw connection |
| Starter type | Direct-on-line starter |
| Type of electrical control circuit connection | Screw connection |
| Width | 184 мм |
