EKF
Magnetic reversing contactor PML-4630-65A-400V with thermal relay 48-65A in IP44 enclosure, with Start/Stop buttons, with indication ctrp-r-65-400v-rev EKF
SKU: ctrp-r-65-400v-rev
ETIM: EC001037
44,382 ₽
Get back 443 ₽ in points
Analogues by specifications
KME reverse contactors in IP44 EKF PROxima housing are designed for starting, stopping, and reversing an electric motor, as well as for protecting electric motors from overloads and overcurrents occurring due to a phase failure.
External restart possible
Yes
Busbar mounting possible
No
Height
415 мм
Height
415 мм
Depth
185 мм
Overload protection device setting range to
65 А
Setting range of overload protection device from
48...65 А
Release class
Class 10
Coordination class per IEC 60947-4-3
Class 2
Number of auxiliary NO contacts
1
Number of auxiliary break contacts
2
Number of gangs
6
Maximum operating temperature
40 град.C
Rated power at AC-3, 400 V
30 кВт
Rated operational power at AC-3, 230 V, 3-phase
30 кВт
Rated control supply voltage Us AC at 50 Hz up to
440 В
Rated control supply voltage Us AC at 50 Hz from
320...440 В
Rated control supply voltage Us DC up to
0 В
Rated control supply voltage Us DC from
0 В
Rated operational current Ie
65 А
Rated current
65 А
Rated conditional short-circuit current, type 2, 400 V
3 000 А
AS-Interface Safety at Work protocol support
No
ASI protocol support
No
CAN protocol support
No
Data Highway protocol support
No
DeviceNet protocol support
No
DeviceNet Safety protocol support
No
Ethernet / IP protocol support
No
Foundation Fieldbus protocol support
No
INTERBUS protocol support
No
LON protocol support
No
MODBUS protocol support
No
PROFIBUS protocol support
No
PROFINET CBA protocol support
No
PROFINET IO protocol support
No
PROFIsafe protocol support
No
SUCONET protocol support
No
SafetyBUS p protocol support
No
TCP/IP protocol support
No
Protocol support for INTERBUS Safety
No
SERCOS protocol support
No
Protocol support for other system buses
No
Suitable for emergency shutdown
Yes
Switch-on current type
AC (alternating)
With short-circuit protection
No
With fuse
No
With transformer
No
Ingress protection (NEMA)
1
IP protection rating
IP44
Thermal overload relay
No
Main electrical circuit connection type
Screw connection
Starter type
Reversing starter
Type of electrical control circuit connection
Screw connection
Width
265 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
6288 ₽
КЭАЗ Magnetic starter PML 1230 10A 380AC (5.5-8A) UHL3 B KEAZ 295533
SKU: 295533
2444 ₽
EKF Contactor in enclosure KME 12A 230V with RTE Ir-9-13A IP65 EKF PROxima ctrp-r-12-220v
SKU: ctrp-r-12-220v
22394 ₽

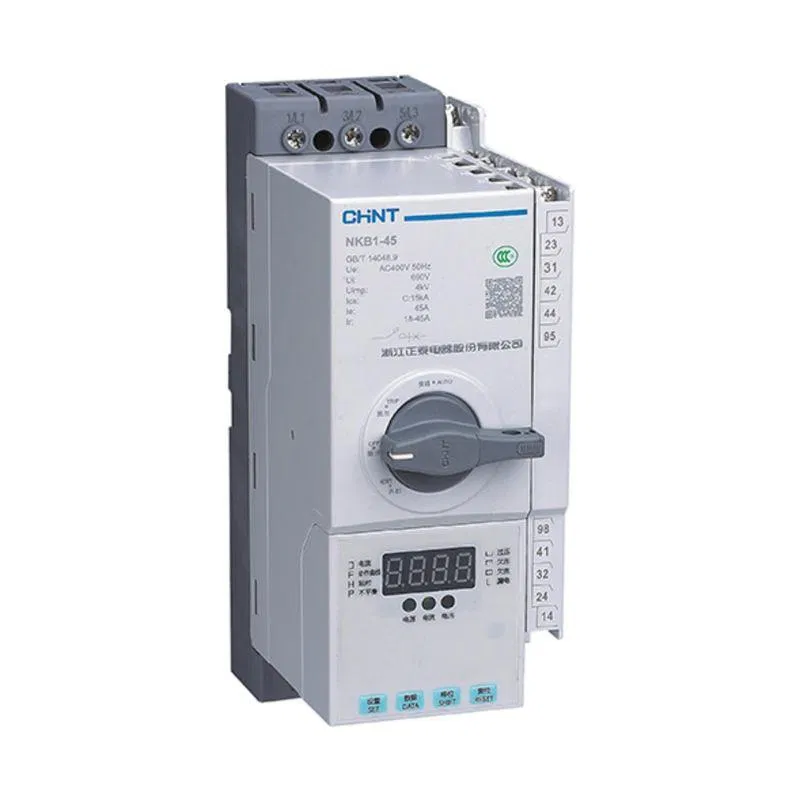

CHINT Smart contactor with control and protection function NKB1-45 C/M45/06MLTG CHINT 173509
