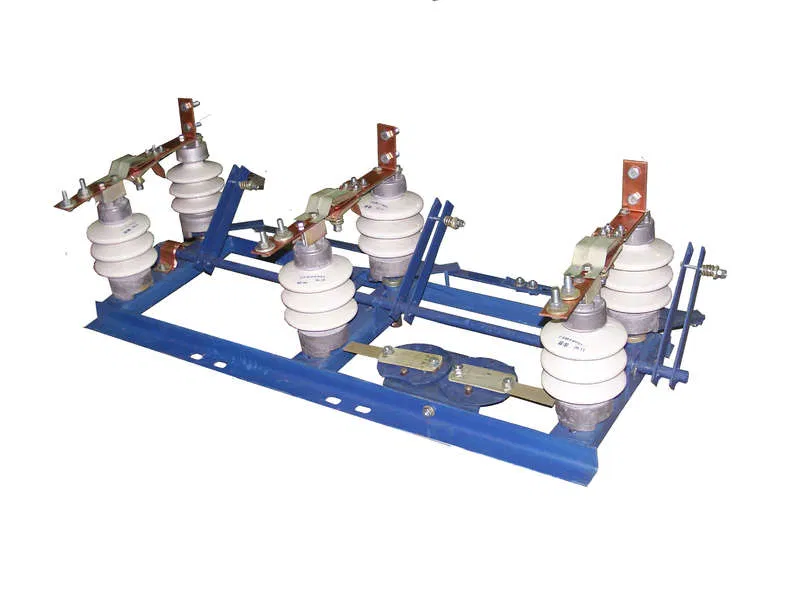

Disconnector RLND-1-10-400 UKhL1 3P with PRNZ-10 drive Elektrofarfor TsB-00004051

RLND-1-10-400 UHL1 (3-pole) disconnector with PRNZ-10 drive is designed: • to ensure switching on and off of de-energized sections of an electrical circuit under voltage; • to create a break in the electrical circuit to ensure safe maintenance of equipment; • to switch on and off the no-load current during transformer operation; • for grounding using stationary grounders of disconnected sections. The included PRNZ-10 drive is used for manual switching on and off of the main and grounding blades of the disconnectors. The RLND-1-10-400 UHL1 (3-pole) disconnector with PRNZ-10 drive should be operated: • at an altitude of no more than 1 km above sea level; • in a temperature range of -60 — +40 degrees Celsius; • at a wind speed of no more than 15 m/s (during icing); • at a wind speed of no more than 40 m/s (in the absence of icing). The disconnector is a three-pole device operating with a rated voltage of 10 kV and a rated current of 400A. The equipment is manufactured by IZVA. The blades are positioned horizontally. The delivery set of the RLND-1-10-400 UHL1 disconnector includes: - disconnector - disconnector drive - passport.
