DKC

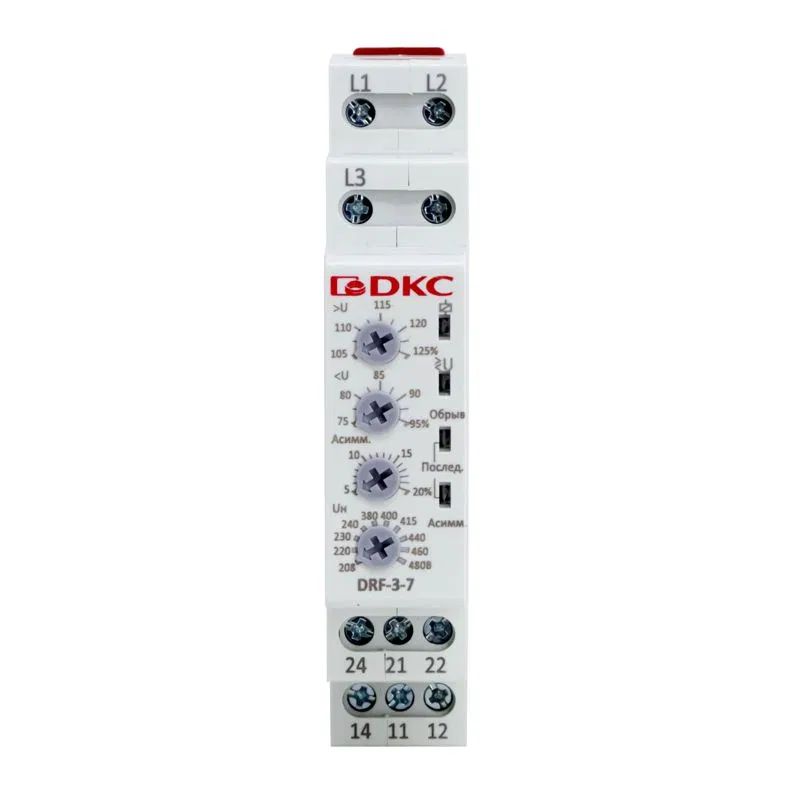

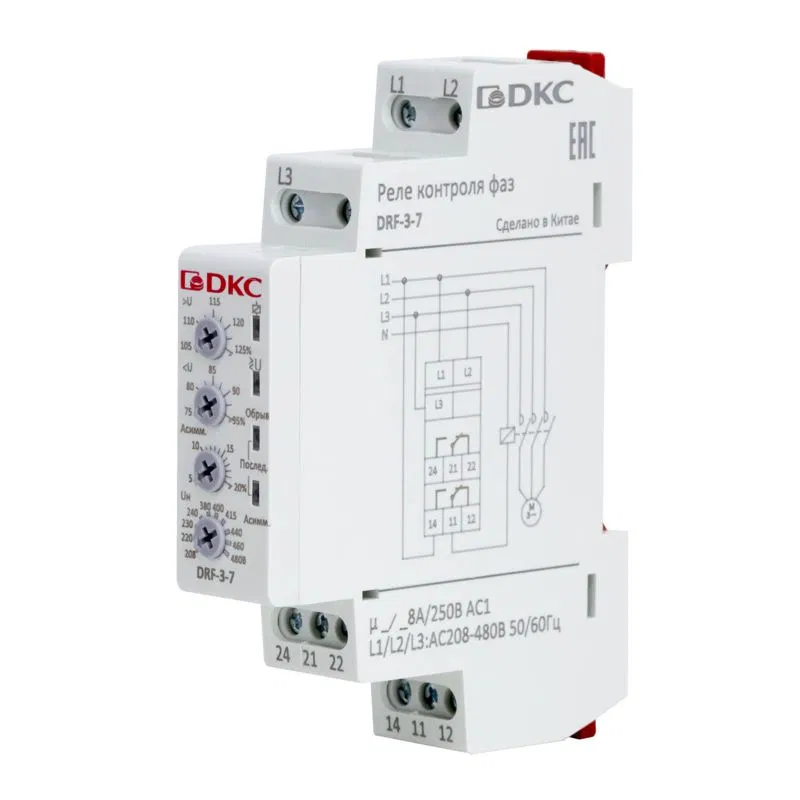

Phase monitoring relay, 3 phase, type DRF, voltage monitoring, phase loss monitoring, phase sequence monitoring, asymmetry monitoring, 2CO contact configuration, 208-480V DRF-3-7 DKC
SKU: DRF-3-7
ETIM: EC001441
2,557 ₽
Get back 25 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Stock by warehouse
DRF-3-7 phase control relay analyzes the phase state in the electrical network; if conditions such as asymmetry or phase loss are detected, the relay generates a signal to shut down the system.
Height
90 мм
Height
90 мм
Depth
65 мм
Voltage measuring range to
480 В
Voltage measuring range from
208 В
Number of normally closed (NC) contacts
2
Number of normally open (NO) contacts
2
Number of switching contacts
2
Maximum permissible delay time
10 с
Maximum permissible trip delay time without holding
10 с
Minimum adjustable delay time
.1 с
Minimum adjustable response delay time without time lag
.1 с
Rated control supply voltage Us AC at 50 Hz up to
480 В
Rated control supply voltage Us AC at 50 Hz from
208 В
Rated control supply voltage Us DC up to
480 В
Rated control supply voltage Us DC from
208 В
Switch-on current type
AC/DC
With removable terminals, clamps
false
Connection type
Screw connection
Phase sequence monitoring function
Yes
Phase asymmetry detection function
Yes
Phase failure detection function
Yes
Overvoltage detection function
Yes
Undervoltage detection function
Yes
Width
18 мм
