ONI (Группа IEK)

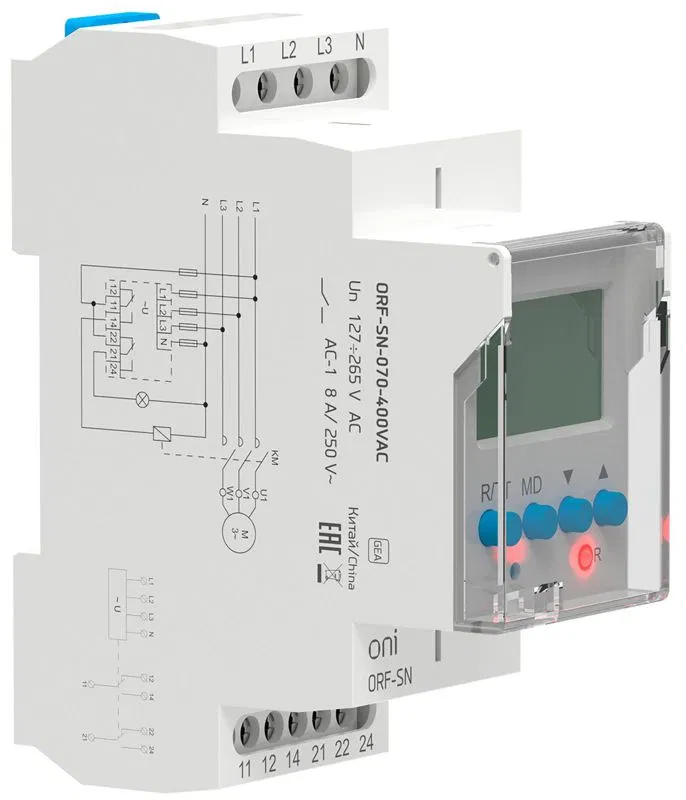

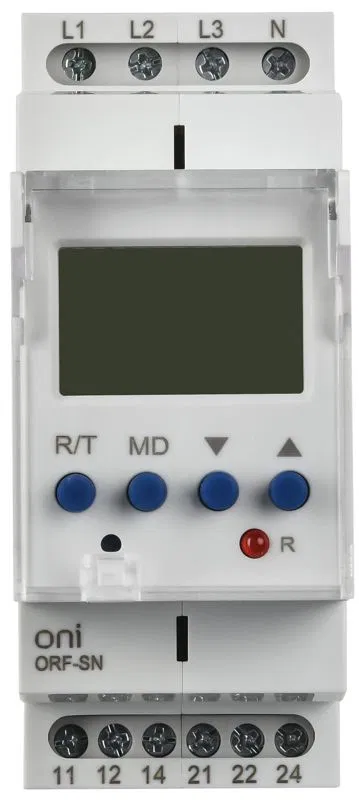

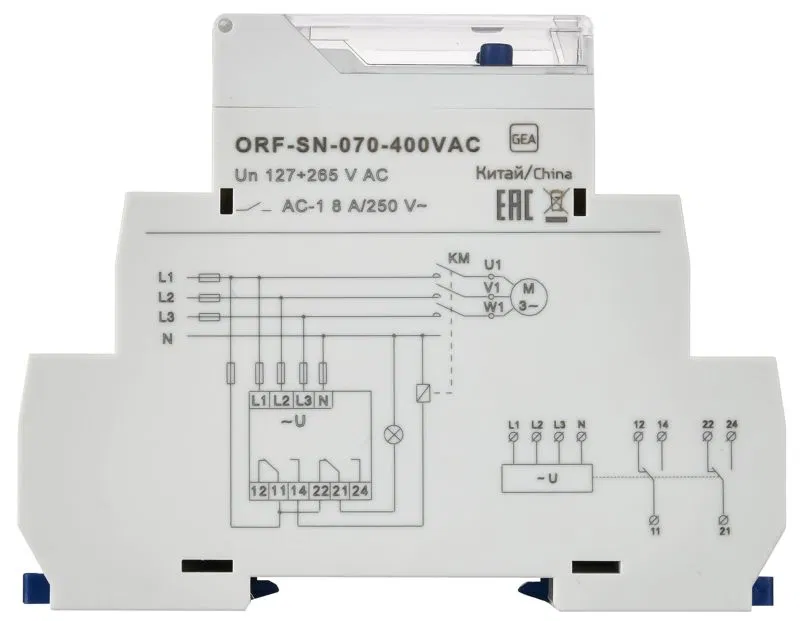

Phase control relay ORF-SN 3 phase 2 contacts 70-400V AC with neutral control ONI ORF-SN-070-400VAC
SKU: ORF-SN-070-400VAC
ETIM: EC001441
29,130 ₽
Get back 291 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 6 шт
Analogues by specifications
Stock by warehouse
Phase control relays provide continuous monitoring of three-phase network parameters and protection of equipment in case of emergency modes: overvoltage, undervoltage, voltage asymmetry, phase sequence, and phase failure.
Devices are widely used in automation systems, automatic transfer switches (ATS), as well as for protecting electric motors, pumps, compressors, and other equipment critical to power supply stability.
*The list of controlled parameters depends on the device modification. Detailed characteristics are in the product data sheet.
Overvoltage category
3
Weight
0.1 кг
Response time
0.1...20 мс
Height
90 мм
Height
90 мм
Depth
64 мм
Voltage measuring range to
400 В
Voltage measuring range from
70...400 В
Relay tripping indicator
Red LED (R)
Overvoltage category
3
Number of normally closed (NC) contacts
2
Number of normally open (NO) contacts
2
Number of switching contacts
2
Maximum permissible delay time
20 с
Maximum permissible trip delay time without holding
30 с
Mech. endurance
10,000,000
Minimum adjustable delay time
0.1 с
Minimum adjustable response delay time without time lag
0.3 с
Rated voltage of contact assembly
250 AC / 24 DC
Rated current of contact groups at AC-1
8
Rated control supply voltage Us AC at 50 Hz up to
265 В
Rated control supply voltage Us AC at 50 Hz from
127...265 В
Rated control supply voltage Us DC from
- В
Operating position
Any
Repairability
No
Switch-on current type
Constant (DC)
Monitored voltage current type
Alternating current (AC)
Mounting method
DIN rail (standard) 35 mm
Pollution degree
2
IP protection rating of terminal
IP20
Ingress protection (IP) of front panel
IP40
Operating temperature from
-20...55 град.C
Phase sequence monitoring function
Yes
Phase asymmetry detection function
Yes
Phase failure detection function
Yes
Overvoltage detection function
Yes
Undervoltage detection function
Yes
Width
36 мм
Electrical endurance
1,000,000
