ONI (Группа IEK)

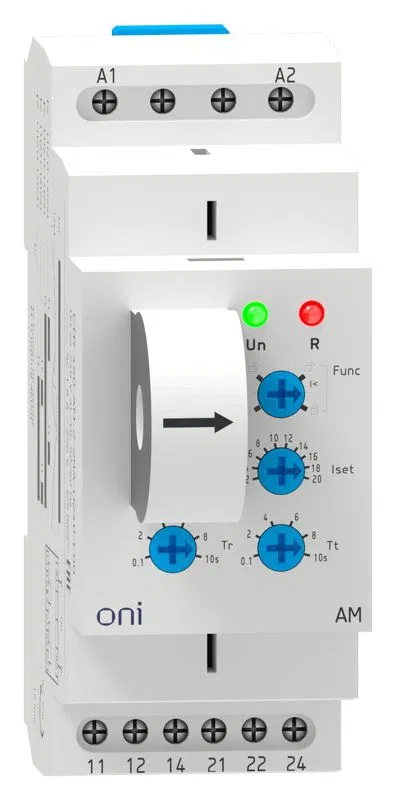

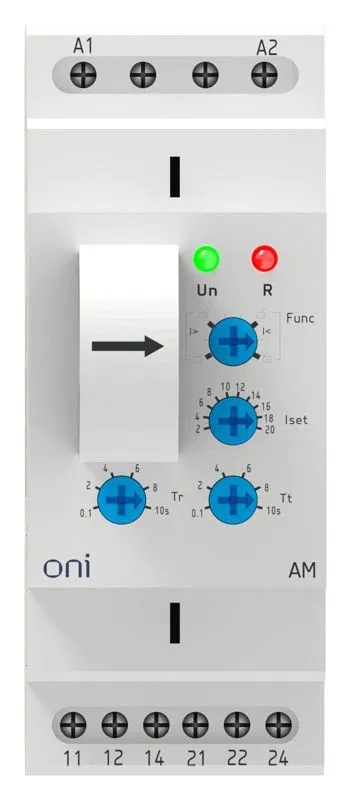

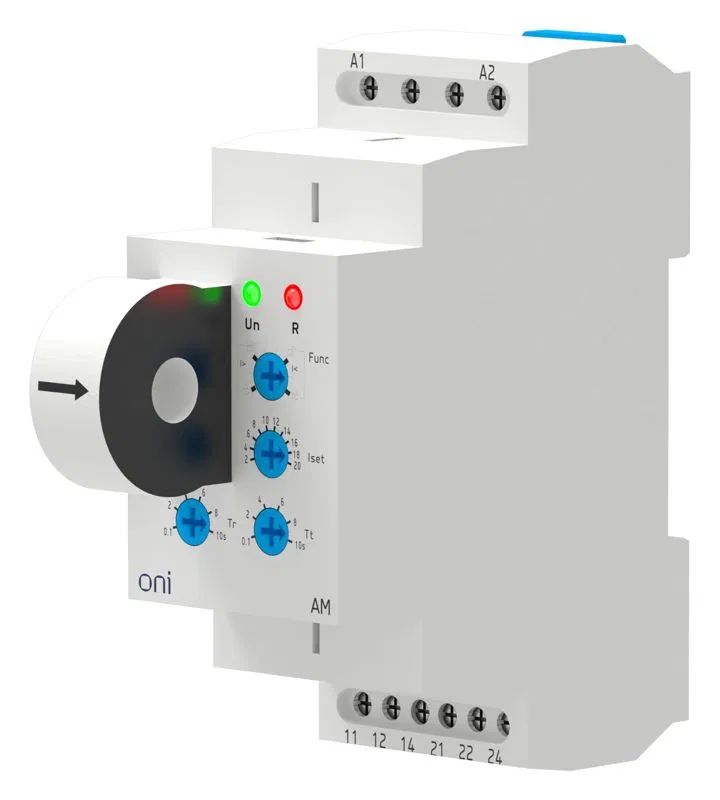

Current monitoring relay AM 2A-20A 2 contacts 24-240V AC/24V DC ONI CTR-450-AM-2-20A-U240-C00
SKU: CTR-450-AM-2-20A-U240-C00
ETIM: EC001440
8,572 ₽
Get back 85 ₽ in points
Analogues by specifications
Stock by warehouse
AM ONI type current monitoring relay is designed for continuous monitoring of current in an electrical circuit and switching control circuits when the value exceeds the set limits.
Overvoltage category
3
1-phase hysteresis monitoring possible
Yes
1-phase overcurrent monitoring possible
Yes
1-phase undercurrent control possible
Yes
3-phase hysteresis monitoring possible
No
3-phase overcurrent monitoring possible
No
3-phase undercurrent monitoring possible
Yes
Height
95 мм
Height
95 мм
Depth
88 мм
Current measurement range at
20 А
Current measurement range from
2...20 А
Voltage presence indicator
Green LED (Un)
Relay tripping indicator
Red LED (R)
Overvoltage category
3
Number of changeover contact sets
2
Number of normally closed (NC) contacts
0
Number of normally open (NO) contacts
0
Number of switching contacts
2
Max. cross-section of stranded cable with ferrules
1x2.5
Max. single-core cable cross-section
1x2.5
Maximum permissible delay time
Please provide the text you would like me to translate. с
Maximum permissible trip delay time without holding
10 с
Minimum adjustable delay time
Please provide the text you would like me to translate. с
Minimum adjustable response delay time without time lag
0.1 с
Rated voltage of contact assembly
250 V AC / 24 V DC
Rated current of contact groups at AC-1
8
Rated control supply voltage Us AC at 50 Hz up to
240 В
Rated control supply voltage Us AC at 50 Hz from
24...240 В
Rated control supply voltage Us DC up to
240 В
Rated control supply voltage Us DC from
24...240 В
Switch-on current type
AC/DC
Contains constant voltage control functions-current increase
No
Includes DC voltage monitoring functions - undercurrent
No
Mounting method
DIN rail (standard) 35 mm
Pollution degree
2
IP protection rating of terminal
IP20
Ingress protection (IP) of front panel
IP40
Operating temperature from
-20...55 град.C
Connection type
Screw connection
Width
36 мм
