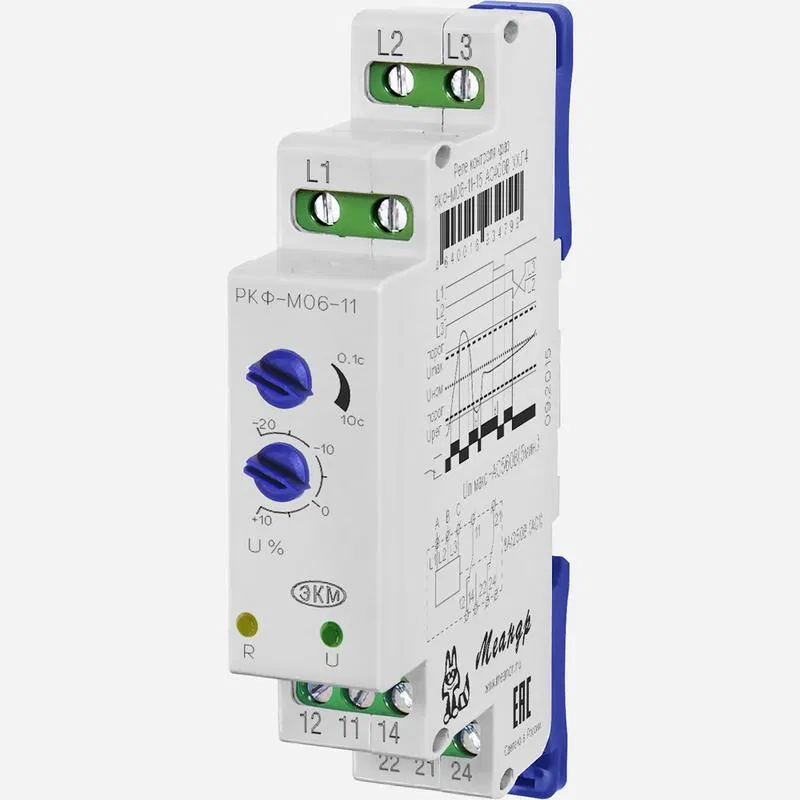

Three-phase line voltage monitoring relay RKF-M06-11-22 AC690V UHL4 (spec.) Meandr A8302-16936762
SKU: A8302-16936762
ETIM: EC001438
6,486 ₽
Get back 64 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
No description available
1-phase undervoltage monitoring possible
Yes
3-phase undervoltage monitoring possible
Yes
Height
93 мм
Depth
62 мм
Voltage measurement range 1 at
759 В
Voltage measurement range 1 from
552 В
Voltage measuring range 2 to
897 В
Voltage measuring range 2 from
655.5 В
Number of normally closed (NC) contacts
0
Number of normally open (NO) contacts
0
Number of switching contacts
2
Maximum permissible delay time
10 с
Maximum permissible trip delay time without holding
.1 с
Minimum adjustable delay time
.1 с
Rated control supply voltage Us AC at 50 Hz up to
950 В
Rated control supply voltage Us AC at 50 Hz from
350 В
Tripping threshold voltage to
897 В
Response threshold voltage from
517.5 В
Switch-on current type
Alternating current (AC)
Monitored voltage current type
Alternating current (AC)
With removable terminals, clamps
No
Includes DC voltage monitoring functions - hysteresis
No
Includes DC voltage monitoring functions - overvoltage
No
Includes DC voltage monitoring functions - undervoltage
No
Width
22 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
24812 ₽
ЧЭАЗ Voltage relay RSN-16-25 front connection ChEAZ A8119-77137017
SKU: A8119-77137017
3190 ₽
Меандр Multifunctional protection device UZM-16 UKHL4 Meandr A8302-16931910
SKU: A8302-16931910
22238 ₽

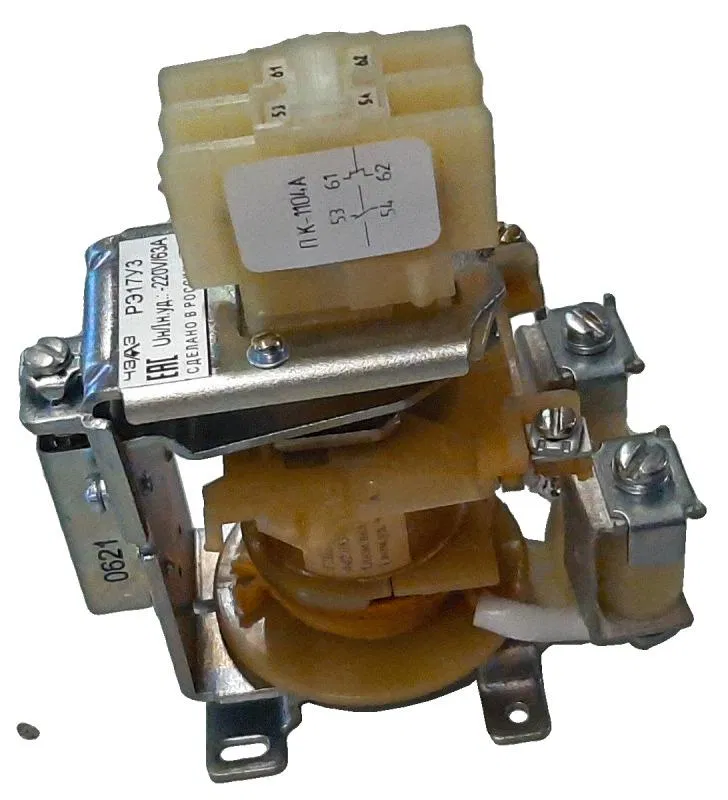

ЧЭАЗ Voltage relay RE-17-220V (on incl. undervoltage) 4A (hold undervoltage current) 1NO+1NC CHEAZ A8119-77945629
