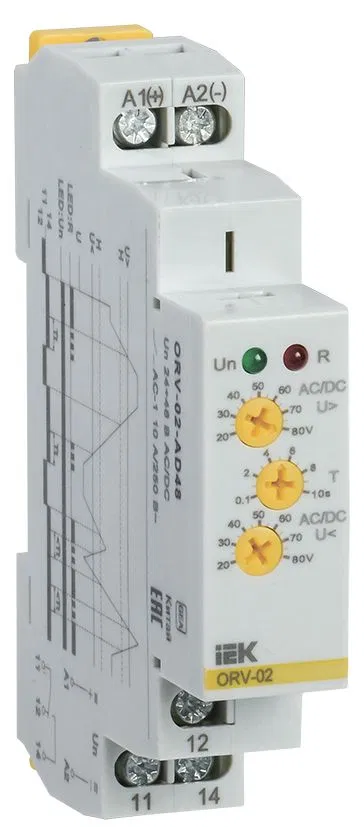

ORV voltage monitoring relay single-phase 24-48V AC/DC IEK ORV-02-AD48
SKU: ORV-02-AD48
ETIM: EC001438
27,640 ₽
Get back 276 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
No description available
1-phase
Yes
3-phase
No
Overvoltage category
3
Weight
0.059 кг
1-phase undervoltage monitoring possible
Yes
3-phase undervoltage monitoring possible
No
Time delay
(0.1÷10) ± 10%
Height
90 мм
Height
90 мм
Hysteresis
3
Depth
64 мм
Voltage measurement range 1 from
20 В
Voltage measuring range 2 from
80 В
Supply voltage frequency range
45...65
Voltage presence indicator
Green LED (Un)
Relay tripping indicator
Red LED (R)
Overvoltage category
3
Number of switching contacts
1
Max. cross-section of stranded cable with ferrules
1x2.5
Max. single-core cable cross-section
1x2.5
Mech. endurance
10,000,000
Minimum adjustable response delay time without time lag
0.5 с
Rated voltage of contact assembly
250 AC / 24 DC
Rated current of contact groups at AC-1
10
Rated voltage
24...48 AC/DC В
Rated control supply voltage Us AC at 50 Hz from
48 В
Rated control supply voltage Us DC from
- В
Measurement error
±1
Setting error
± 5
Operating position
Any
Repairability
No
Switch-on current type
AC/DC
Includes DC voltage monitoring functions - hysteresis
No
Includes DC voltage monitoring functions - overvoltage
Yes
Includes DC voltage monitoring functions - undervoltage
Yes
Mounting method
DIN rail (standard) 35 mm
Pollution degree
2
IP protection rating of terminal
IP20
Ingress protection (IP) of front panel
IP40
Operating temperature from
+20...+55 град.C
Width
18 мм
Electrical endurance
1,000,000
