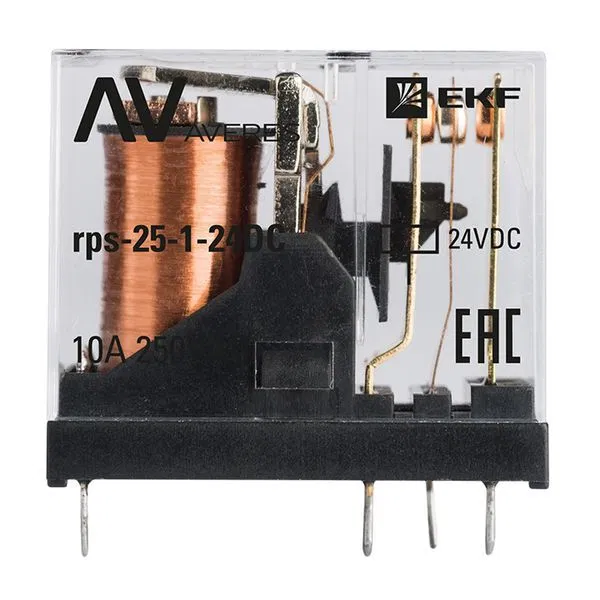

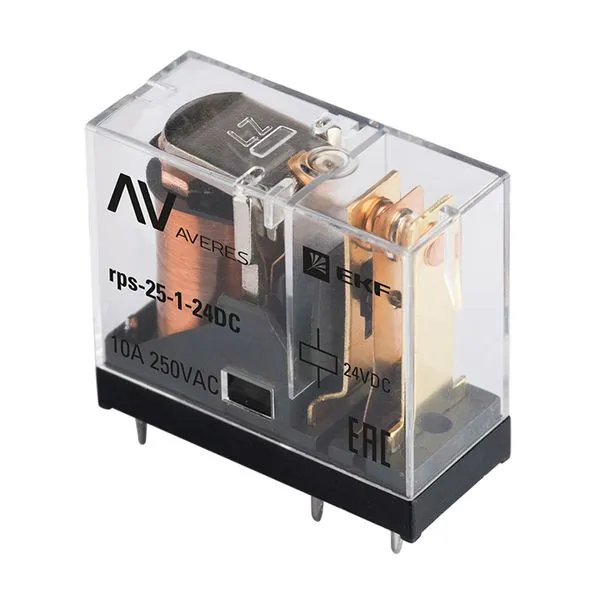

Intermediate relay RP slim 25/1 10A 24V DC EKF AVERES rps-25-1-24DC
SKU: rps-25-1-24DC
ETIM: EC001437
2,420 ₽
Get back 24 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
Intermediate relays of the RP slim EKF AVERES series are complete switching equipment designed for currents up to 10 A. Relays are distinguished by their compact design. RP series relays can be equipped with modular series connectors RM-22, RM-22 and RM-25 for mounting the relay on a 35-mm DIN rail. The terminal blocks for switching contacts and the coil are located on the modular connector. Switching with aluminum and copper wire is possible.
Supplied with socket
No
Type of changeover contacts
Double contact
Height
26 мм
Height
25.3 мм
Depth
29 мм
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
0
Number of auxiliary break contacts
0
Number of normally closed (NC) contacts
0
Number of normally open (NO) contacts
0
Number of switching contacts
1
Rated control supply voltage Us AC at 50 Hz up to
0 В
Rated control supply voltage Us AC at 50 Hz from
0 В
Rated control supply voltage Us DC up to
24 В
Rated control supply voltage Us DC from
24...24 В
Rated current
10 А
Polarization
Free pole configuration
Switch-on current type
DC (direct)
With positively driven contacts
No
With LED display
No
With removable terminals, clamps
No
IP protection rating
IP40
Connection type
Flat plug connector
Switching characteristics
Monostable
Width
13 мм
