ONI (Группа IEK)

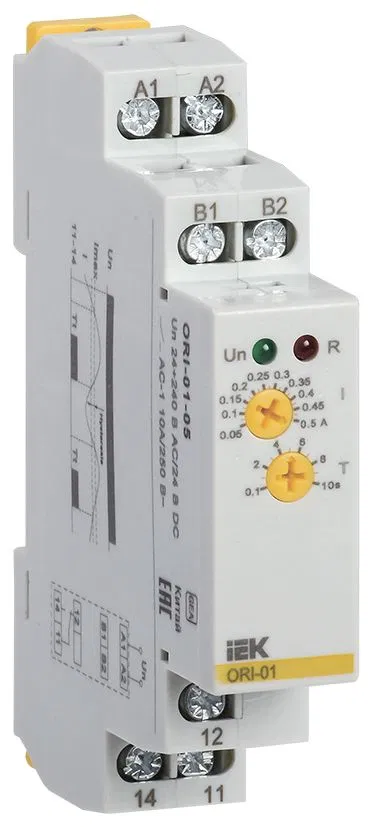

Current monitoring relay ORI 0.05-0.5A 24-240V AC/24V DC IEK ORI-01-05
SKU: ORI-01-05
ETIM: EC001440
32,905 ₽
Get back 329 ₽ in points
Order multiple: 10 шт
Analogues by specifications
Stock by warehouse
No description available
Overvoltage category
3
Weight
0.062 кг
1-phase hysteresis monitoring possible
Yes
1-phase overcurrent monitoring possible
Yes
1-phase undercurrent control possible
Yes
3-phase hysteresis monitoring possible
No
3-phase overcurrent monitoring possible
No
3-phase undercurrent monitoring possible
No
Height
90 мм
Height
90 мм
Hysteresis
5
Depth
64 мм
Current measurement range from
0.05...0.5 А
Supply voltage deviation range
-15...10
Supply voltage frequency range
50/60 ± 0.2
Voltage presence indicator
Green LED (Un)
Relay tripping indicator
Red LED (R)
Overvoltage category
3
Number of changeover contact sets
1
Number of normally closed (NC) contacts
0
Number of normally open (NO) contacts
0
Number of changeover contacts
0
Number of switching contacts
0
Max. cross-section of stranded cable with ferrules
1x2.5
Max. single-core cable cross-section
1x2.5
Maximum permissible delay time
Please provide the text you would like me to translate. с
Maximum permissible trip delay time without holding
10 с
Mech. endurance
10,000,000
Minimum adjustable delay time
Please provide the text you would like me to translate. с
Minimum adjustable response delay time without time lag
0.1 с
Supply voltage from
24...240 V AC / 24 V В
Rated voltage of contact assembly
250 V AC / 24 V DC
Rated current of contact groups at AC-1
10
Rated control supply voltage Us AC at 50 Hz from
24...240 В
Rated control supply voltage Us DC from
24 В
Setting error
± 5
Power consumption
AC 0.09...3 VA / DC 0.05...1.5 W кВт
Tolerance limits
10
Operating position
Any
Repairability
No
Switch-on current type
AC/DC
Contains constant voltage control functions-current increase
No
Includes DC voltage monitoring functions - undercurrent
No
Mounting method
DIN rail (standard) 35 mm
Pollution degree
2
IP protection rating of terminal
IP20
Ingress protection (IP) of front panel
IP40
Operating temperature from
-20...55 град.C
Width
18 мм
Electrical endurance
1,000,000
