Time relay 30-30min 24V AC-DC EMAS RZ1A2C30M-2

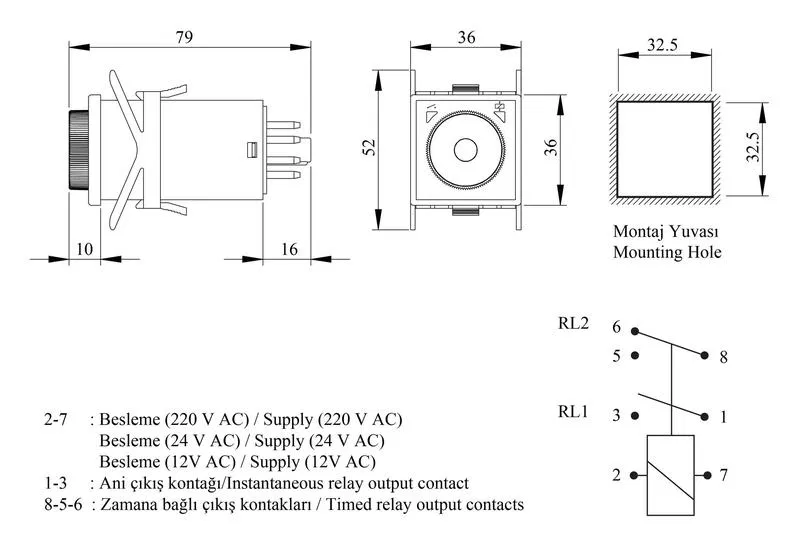

RZ1A2C30M-2 Time relay (3-30 min, ON and OFF delay), 1NO+1NC, 24V AC/DC TECHNICAL INFORMATION Mechanical endurance: at least 10,000,000 operations Electrical endurance: at least 100,000 operations Operating temperature: min./max. -5/+40 °C Protection rating: IP20 Maximum switching frequency: 6,000 operations per hour (at partial load) Rated voltage, Ue: 24V AC/DC Rated coil voltage: 1.5VA AC; 1W DC Rated current, le: 5A Max. voltage: 250V AC Max. switching capacity: 1250VA Operating frequency: 50-60Hz Operating power: max. 2VA AC / min. 2W DC setting accuracy: ±2% Voltage effect: < 1% Max. response time: < 100 ms Voltage range: (0.85-1.1)*Ue Standard contact material: silver/nickel Weight: 60±3g RZ1A series analog time relays • 9 time intervals • Panel mounting via a special flexible connecting clamp or mounting on 35mm DIN-rail using an 8-pin terminal block type RS1P08 • With ON and OFF delay • Ensures minimum motor downtime during malfunctions • Compact size • Relay status is monitored via LEDs on the front panel ON and OFF delay. From the moment power is applied to the relay, the cycle time starts counting, and after the set time t1, the contact closes, resulting in a change in the signal at the output.
