Programmable time relay PCZ-521-3 24-264V AC/DC 16A 1NO/NC 250 pairs on/off daily and weekly duty cycles with control input and NFC function DIN-rail mounting F&F EA02.002.018 Euroautomatika F&F
SKU: EA02.002.018
ETIM: EC001439
6,293 ₽
Get back 62 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
Programmable time relay PCZ-521-1 is designed to switch on and off various electrical appliances and electrical installations according to a pre-set program.
Application Area
Use in fields where it is necessary to control loads according to a weekly (daily) program.
Features
- possibility to connect an external button for control;
- contact state memory in manual mode;
- NFC function for programming using an Android smartphone.
Operating Principle
Switching on and off of devices or electrical circuits at a specified time in cycles: daily, weekly, weekdays or weekends.
Supply voltage 24 - 264 V AC/DC, Single-channel, Contact 1NO/NC, 16 A
Remote control possible
Yes
Height
90 мм
Depth
65 мм
Time range at
60 с
Time range from
60 с
Number of undelayed outputs, NO contact
0
Number of instantaneous outputs, changeover contact
0
Number of undelayed outputs, NC contact
0
Number of delayed outputs, NO contact
0
Number of delayed outputs, changeover contact
1
Number of delayed outputs, break contact
0
Rated control supply voltage Us AC at 50 Hz up to
264 В
Rated control supply voltage Us AC at 50 Hz from
24 В
Rated control supply voltage Us DC up to
264 В
Rated control supply voltage Us DC from
24 В
Rated current
16 А
Suitable for front panel mounting
No
Suitable for DIN-rail mounting
Yes
Switch-on current type
AC/DC
Mounting on contactor
No
Switch-on delay function
No
Switch-off delay function
No
Star/delta function
No
Flashing function starts on pulse, fixed time
No
Flashing function starts with pause, fixed time
No
Pulse shaping function
No
Width
35 мм
0
★★★★★
0 reviews
No reviews yet. Be the first!
Leave a review
Related products
11187 ₽

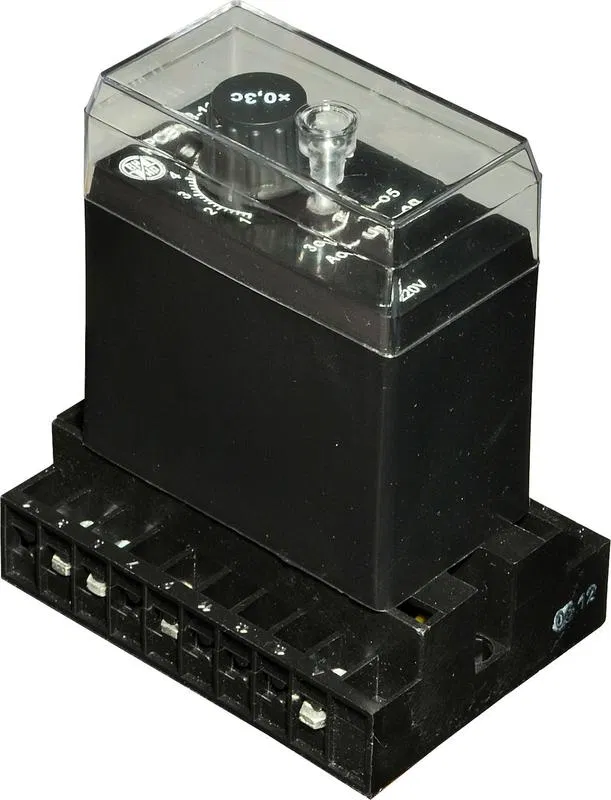

ВНИИР Time relay RSV-18-13 3…30s 380V 50Hz perm. assign. VNIIIR A8120-77131237
