EKF

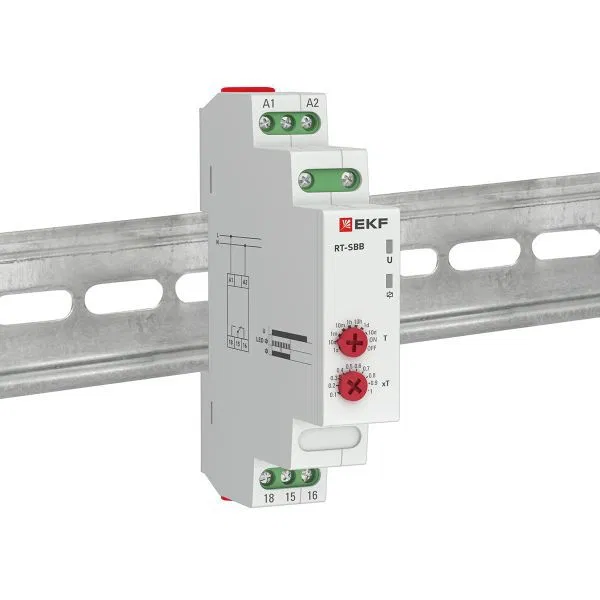

Time relay RT-SBB (pulse on switch-on) 12-240V EKF PROxima rt-sbb-12-240
SKU: rt-sbb-12-240
ETIM: EC001439
2,216 ₽
Get back 22 ₽ in points
Analogues by specifications
Stock by warehouse
RT-2C EKF PROxima time relay is an electronic switching device with adjustable time settings. The relay is designed to create a cyclic circuit operation with a turn-on delay. Time range switching is performed using rotary regulators located on the front surface of the relay. The relay is used in industrial and domestic automation systems: in ventilation, heating, and lighting systems. Application category – AC-15 (controlling electromagnets with power exceeding 72 W). The multifunctional RT-10 EKF PROxima time relay is an electronic switching device with adjustable operating modes and adjustable time settings. The relay is designed to turn a load on or off according to specified time values and operating modes. Time range and operating mode switching is performed using rotary regulators located on the front surface of the relay. The relay is used in industrial and domestic automation systems: in ventilation, heating, and lighting systems. Application category – AC-15 (controlling electromagnets with power exceeding 72 W). The RT-SBA EKF PROxima time relay is an electronic switching device with adjustable time settings. The relay is designed to turn on a load with a turn-on time delay. Time range switching is performed using a rotary regulator located on the front surface of the relay. The relay is used in industrial and domestic automation systems: in ventilation, heating, and lighting systems. Application category – AC-15 (controlling electromagnets with power exceeding 72 W).
Remote control possible
Yes
Height
91.4 мм
Outputs switchable delayed/instantaneous
No
Depth
49 мм
Time range at
8640000 с
Number of auxiliary NO contacts
0
Number of auxiliary changeover contacts
1
Number of auxiliary break contacts
0
Number of undelayed outputs, NO contact
0
Number of instantaneous outputs, changeover contact
0
Number of undelayed outputs, NC contact
0
Number of delayed outputs, NO contact
0
Number of delayed outputs, changeover contact
1
Number of delayed outputs, break contact
0
Rated control supply voltage Us AC at 50 Hz up to
240 В
Rated control supply voltage Us AC at 50 Hz from
12...240 В
Rated control circuit AC supply voltage Us at 60 Hz from
12...240 В
Rated control supply voltage Us DC up to
240 В
Rated control supply voltage Us DC from
12...240 В
Rated current
8 А
Suitable for front panel mounting
Yes
Suitable for DIN-rail mounting
Yes
Suitable only for remote control
No
Switch-on current type
AC/DC
With plug connector block
No
With semiconductor output, terminal
No
Connection type
Screw connection
Mounting on contactor
No
Switch-on delay function
No
Switch-off delay function
No
Star/delta function
No
Flashing function starts on pulse, fixed time
No
Flashing function starts with pause, fixed time
No
Synchronization function starts on pulse, configurable
No
Synchronisation function starts with pause, adjustable
No
Sliding make contact function
No
Sliding NC contact function
Yes
Pulse shaping function
No
Width
18.5 мм
