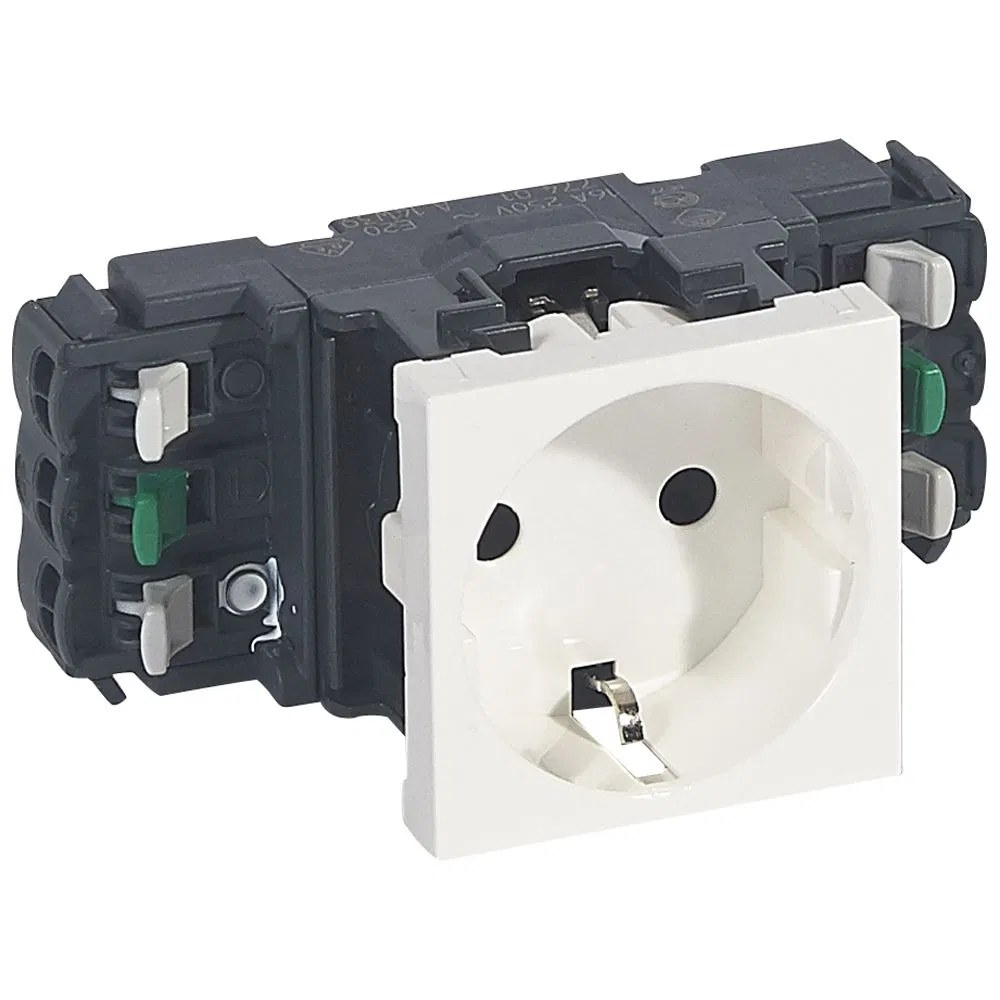

Socket 2K+3 - Mosaic Program - for installation in cable duct - automatic terminals - standard 077401 Legrand

Legrand

Socket 2K+3 - Mosaic Program - for installation in cable duct - automatic terminals - standard 077401 Legrand

SKU: 077401 ETIM: EC000125

247 ₽

Get back 2 ₽ in points

Description Specifications Reviews

Special power supply No special power supply required

RAL number (similar) 9003

Antibacterial No

Material type/grade Thermoplastic

Phase selection No (without)

Device height 45 мм

Device depth 44 мм

Differential current protection No

For heavy duty (per VDE) No

Contact protection Yes

Overvoltage protection No

Protective surface coating Untreated

Round protective grounding contact (pin) No

Insulated installation No

Design With SCHUKO earthing contact

Number of active contacts (round) 1

Number of active contacts (flat) 0

Number of seats 1

Number of modules (modular system) 2

Number of switchable outlets 0

Number of phases 1

Material Plastic

Extraction mechanism No

Halogen-free Yes

Rated voltage 250 В

Rated current 16 А

Labelling surface No

Suitable for ingress protection IP IP40

Transparent No

With built-in USB charger No

With power switch No

With lock No

With orientation lighting No

With hinged cover No

With illumination (mains voltage indication) No

With signal lamp No

With low-current fuse No

With through-channel function Yes

With central insert No

Symbols/indication Without marking

With shutters (touch protection) Yes

Mounting method Wall trunking

Connection method Clamp contact

Fastening type Dismountable

Surface type Shiny

Impact resistance IK04

Switch-off function No

Color White

Frequency at 60 Гц

Frequency from 50 Гц

Device width 90 мм
