Kranz
STRONG MIELE 1-way socket 16A with grounding shutter graphite Kranz KR-78-0701-6
SKU: KR-78-0701-6
ETIM: EC000125
971 ₽
Preorder

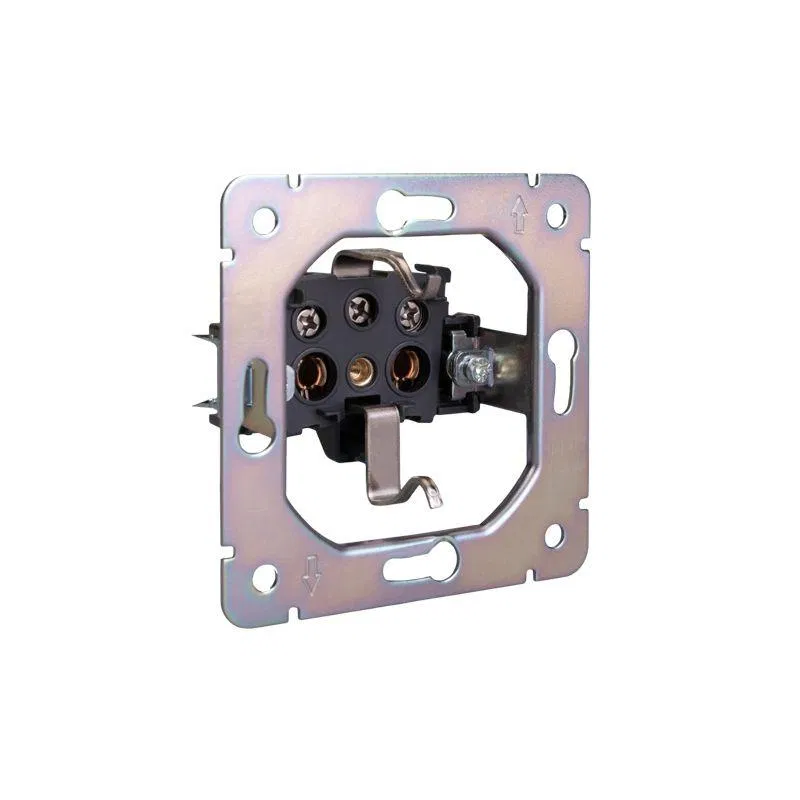

KRANZ concealed single socket mechanism is designed to connect electrical appliances to the power electrical network. It is used for installation in apartments, offices, and country houses.
The socket is grounded and equipped with safety shutters for child safety and protection against electric shock.
Thanks to the concise housing shape and the noble graphite color, the device will harmoniously complement any interior.
Conductor cross-section is 1.5-2.5 mm2.
| Antibacterial | No |
| Supplied with plug (connector) | No |
| Material type/grade | Thermoplastic |
| Device height | 70 мм |
| Device depth | 40 мм |
| Differential current protection | No |
| For heavy duty (per VDE) | No |
| Contact protection | No |
| Overvoltage protection | No |
| Round protective grounding contact (pin) | No |
| Insulated installation | No |
| Design | With SCHUKO earthing contact |
| Number of seats | 1 |
| Material | Plastic |
| Extraction mechanism | No |
| Halogen-free | No |
| Rated voltage | 230 В |
| Rated current | 16 А |
| Labelling surface | No |
| Suitable for ingress protection IP | IP20 |
| Transparent | No |
| With built-in USB charger | No |
| With power switch | No |
| With lock | No |
| With orientation lighting | No |
| With hinged cover | No |
| With illumination (mains voltage indication) | No |
| With signal lamp | No |
| With low-current fuse | No |
| With through-channel function | No |
| With central insert | No |
| Symbols/indication | Without marking |
| With shutters (touch protection) | Yes |
| Mounting method | Flush-mounted |
| Connection method | Screw terminal |
| Fastening type | Screw mounting |
| Surface type | Matte |
| Impact resistance | IK05 |
| Color | Grey |
| Frequency at | 60 Гц |
| Frequency from | 50 Гц |
| Device width | 70 мм |
