Socket 4-fixator side entry for panel 10 poles 16A EMAS EBM10PD14
SKU: EBM10PD14
ETIM: EC002636
4,258 ₽
Get back 42 ₽ in points
Promo code
FIRST
— cashback ×3 on your first order: 3% in points on the first 50,000 ₽
Analogues by specifications
EBM10PD14 Metal enclosure with socket, 10 poles, 16A, side entry (PG 16), IP65
TECHNICAL INFORMATION
Operating current 16A
Number of poles 10
Utilization category AC15
Mechanical service life (minimum)? 500
Electrical service life (minimum)? 100
Insulation voltage (Ui) 690V
Rated impulse voltage (Uimp) 6kV
Dielectric strength (contact with body) 1890 V AC
Dielectric strength (contact-to-contact) 3000 V AC
Insulation resistance 10 MΩ min. (500 V DC)
Operating Temperature -40 / +125 °C
Pollution degree 1
Protection class IP65
Enclosure material Metal
Full description
• Wide product range
• IP65 in closed position
• Universal inserts
• Simple cable routing
• Various lock types
• Metal enclosure with powder coating

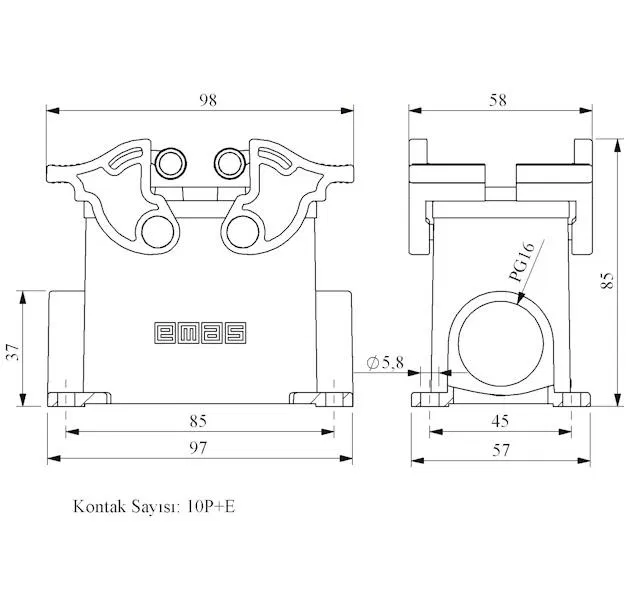

Height
85 мм
Depth
0 мм
Length
85 мм
Contact design
Socket
Number of plug-in contacts
10
Number of cable entries
1
Number of poles
10
Number of rows of plug-in contacts
2
Housing insulation material
Polybutylene terephthalate
Contact material
Brass
Housing material
Steel
Contact surface coating material
Silver
Locking mechanism
Latch
Rated impulse voltage
6 кВ
Rated voltage
690 В
Rated current In
16 А
Housing coating
Powder-coated
Housing coating
Powder-coated
Operating temperature
125 град.C
Operating temperature from
-40 град.C
Cable entry position
Side
With protective conductor
No
With seal
Yes
Flexible stranded conductor cross-section up to
2.5 кв.мм
Stranded flexible conductor cross-section from
.5 кв.мм
Solid conductor cross-section to
2.5 кв.мм
Solid conductor cross-section from
.5 кв.мм
Mounting method
Surface mounting
Assembled IP protection rating
IP65
Connection type
Screw connection
Impact resistance
IK10
Width
97 мм
EMC-compatible version
No
