Legrand

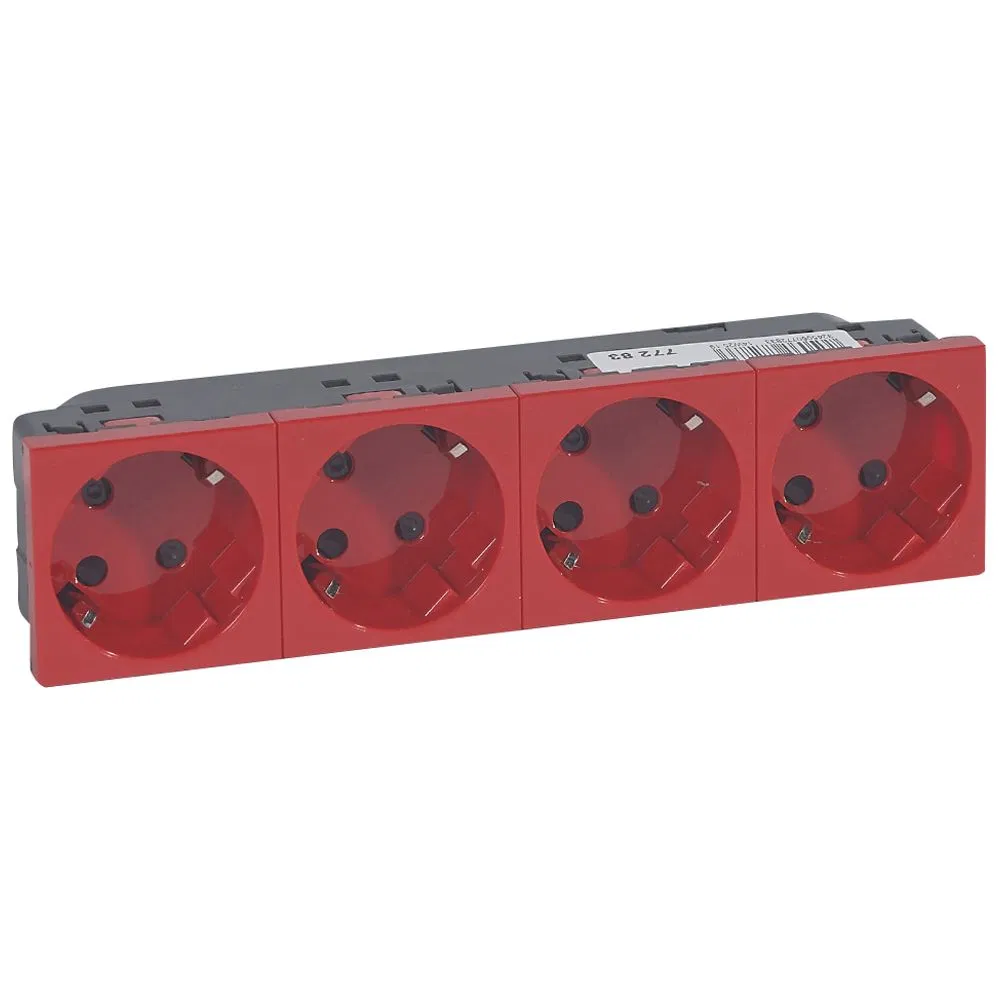

Socket 4 x 2K+3 at 45° angle - Mosaic Program - with mechanical lock 077283 Legrand
SKU: 077283
ETIM: EC000125
Price on request
Analogues by specifications
No description available
Special power supply
Special additional safety power supply
RAL number (similar)
3020
Antibacterial
No
Material type/grade
Thermoplastic
Phase selection
No (without)
Device height
45 мм
Device depth
40 мм
Differential current protection
No
For heavy duty (per VDE)
No
Contact protection
Yes
Overvoltage protection
No
Protective surface coating
Untreated
Round protective grounding contact (pin)
No
Insulated installation
No
Design
With SCHUKO earthing contact
Number of active contacts (round)
4
Number of active contacts (flat)
0
Number of seats
4
Number of modules (modular system)
8
Number of switchable outlets
0
Number of phases
1
Material
Plastic
Extraction mechanism
No
Halogen-free
Yes
Rated voltage
250 В
Rated current
16 А
Labelling surface
No
Suitable for ingress protection IP
IP40
Transparent
No
With built-in USB charger
No
With power switch
No
With lock
No
With orientation lighting
No
With hinged cover
No
With illumination (mains voltage indication)
No
With signal lamp
No
With low-current fuse
No
With through-channel function
Yes
With central insert
Yes
Symbols/indication
Without marking
With shutters (touch protection)
Yes
Mounting method
Modular frame
Connection method
Clamp contact
Fastening type
Dismountable
Surface type
Shiny
Impact resistance
IK07
Switch-off function
No
Color
Red
Frequency at
60 Гц
Frequency from
50 Гц
Device width
180 мм
